Object-Guided Visual Tokens: Eliciting Compositional Reasoning in Multimodal Language Models

M. Nulli, I. Najdenkoska, M. M. Derakhshani, M. Dorkenwald, V. Orshulevich, Y. M. Asano

Accepted to EurIPS, Workshop on Principles of Generative Modelling

Links: 📄 Paper | 📜 Full Thesis | 📝 Blogpost | 🧑‍💻 Code

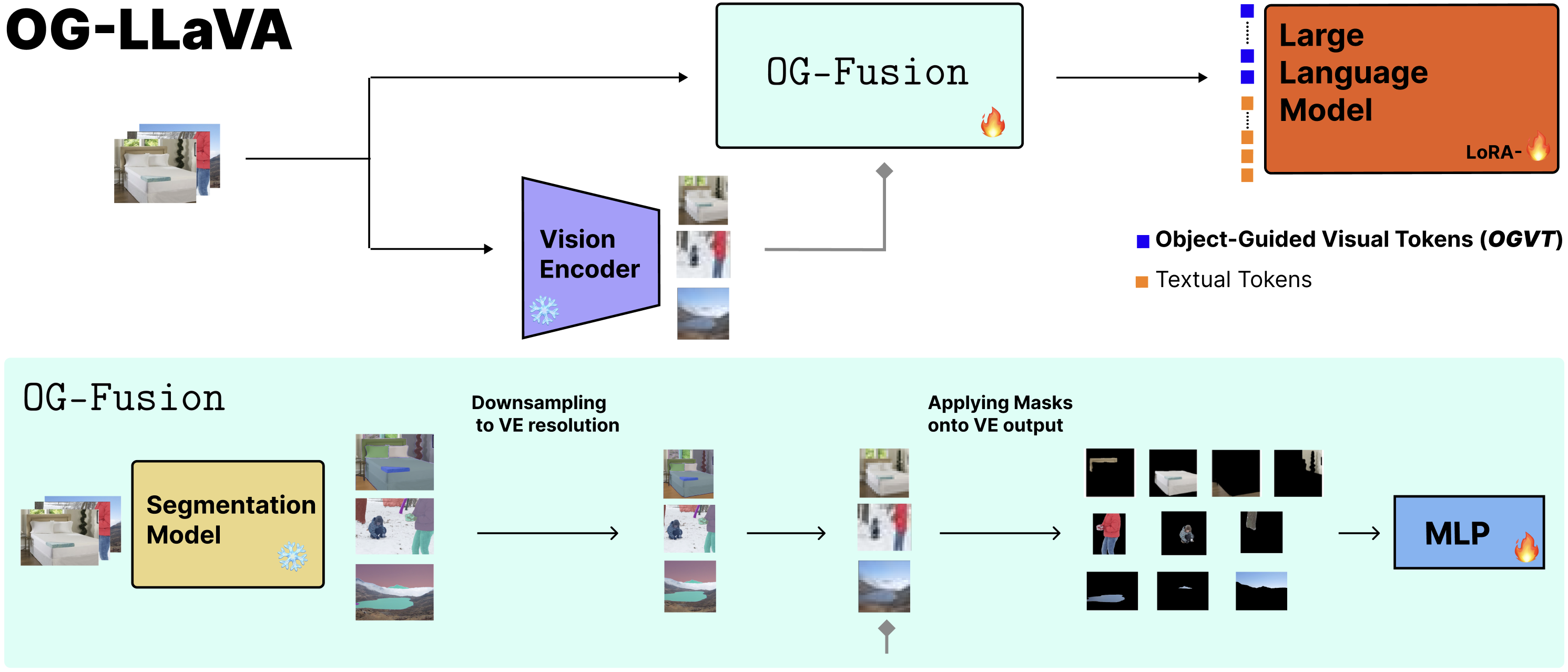

Main Process

We extract visual features from the input image through a Vision Encoder.
Concurrently, we pass the input image through OG-Fusion. Here we:

1. Use a Segmentation model to retrieve the masks,
2. Downsample the segmentations, and
3. Apply these masks onto the visual features.
4. Concatenated together and passed through a Multi-Layer Perceptron to produce Object-Guided Visual Tokens (OGVT).

The OGVT are then given as input to a Large Language Model together with Textual Tokens to produce an output.
The ❄️ (snowflake) and 🔥 (fire) represent modules whose parameters are kept frozen or turned on.
LoRA emphasizes that not all parameters of the LLM are unfrozen, only the LoRA layers.

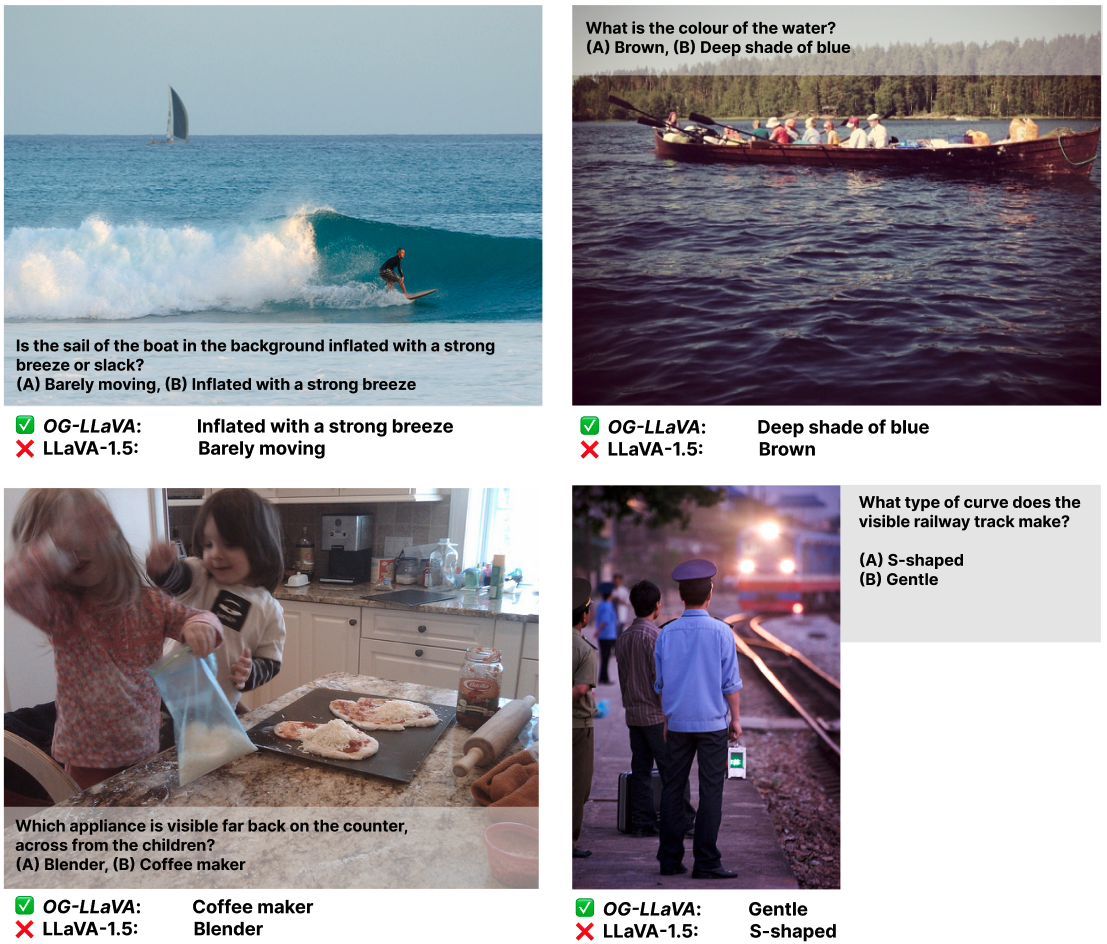

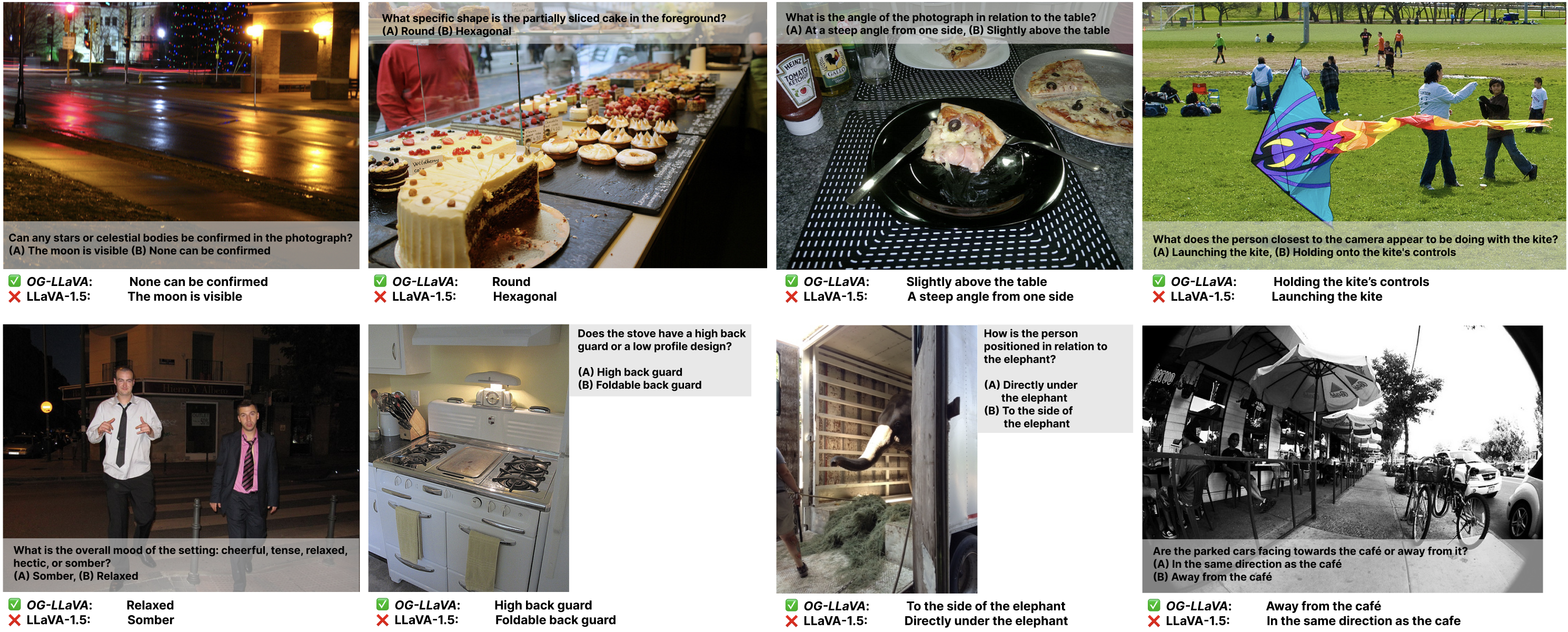

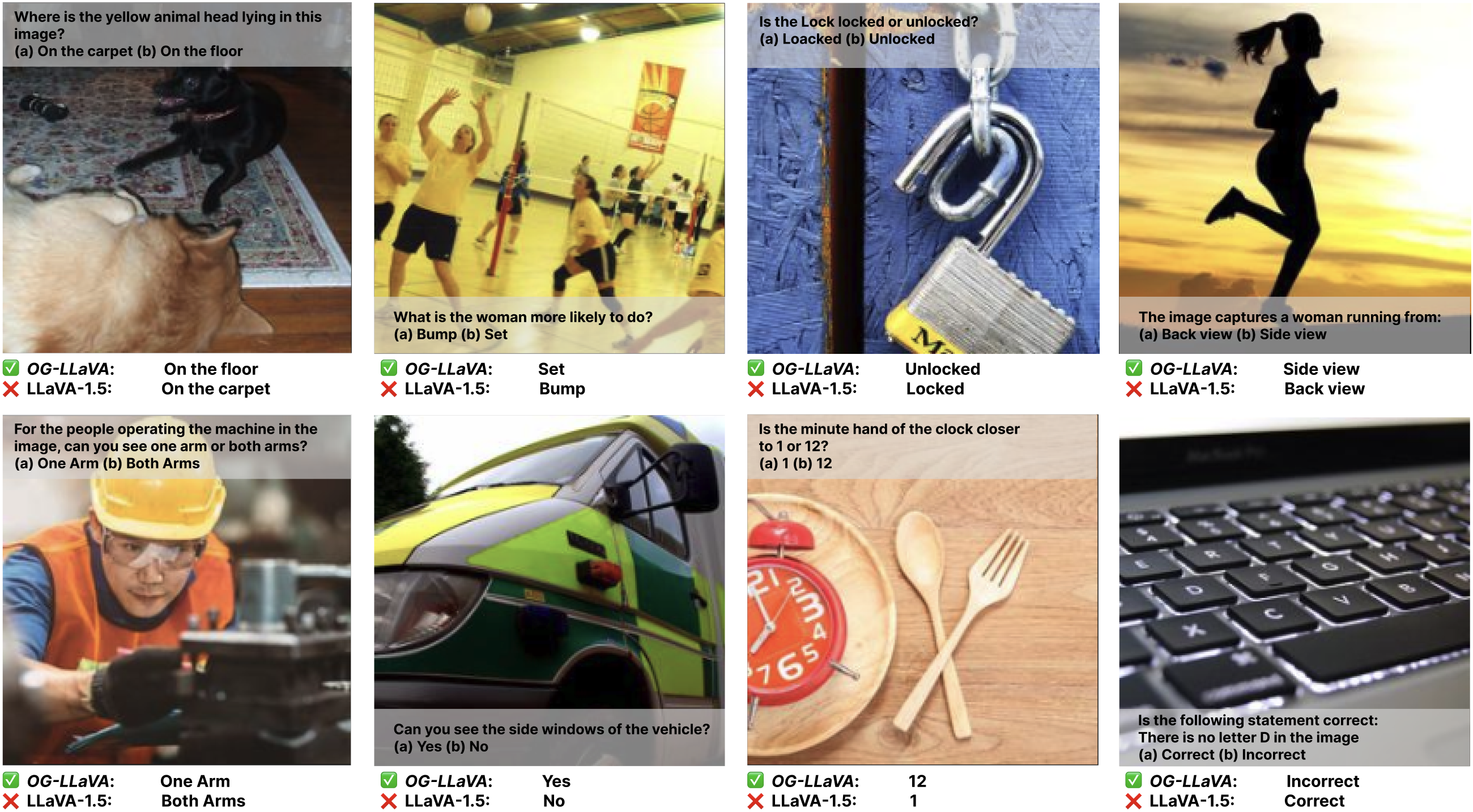

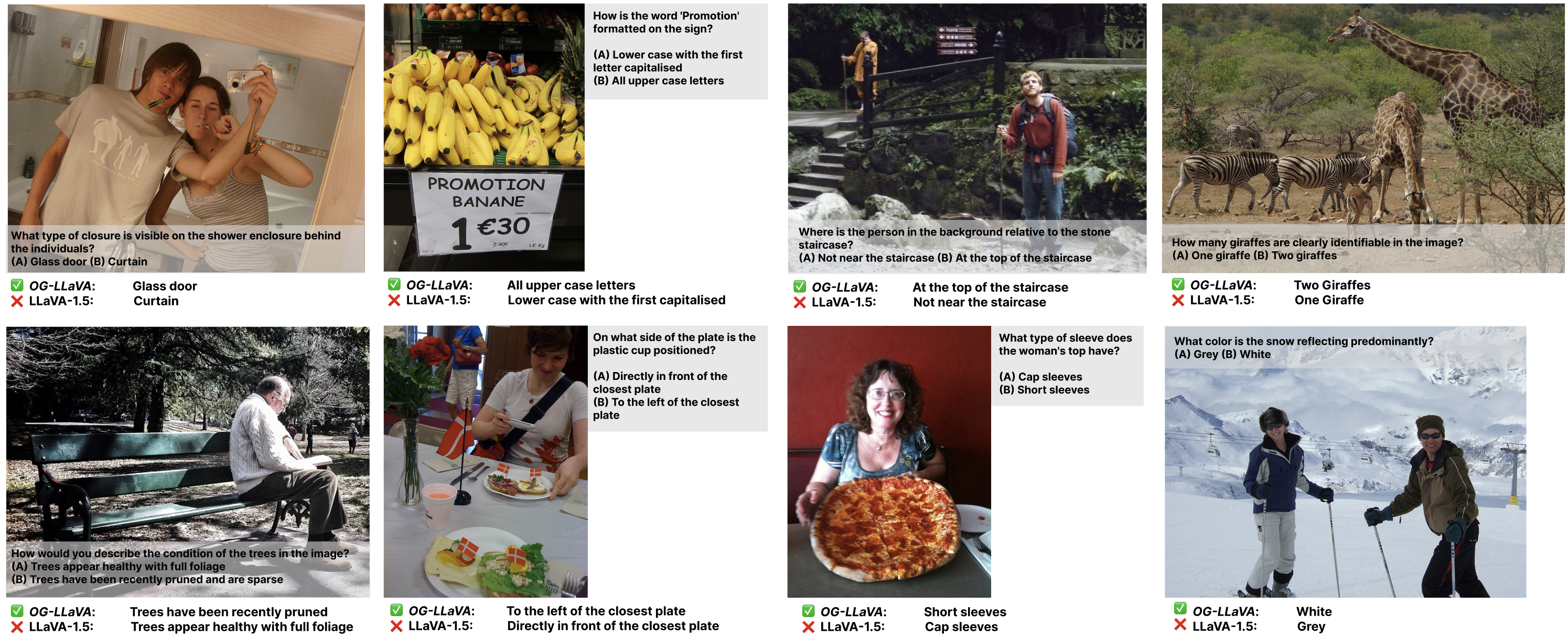

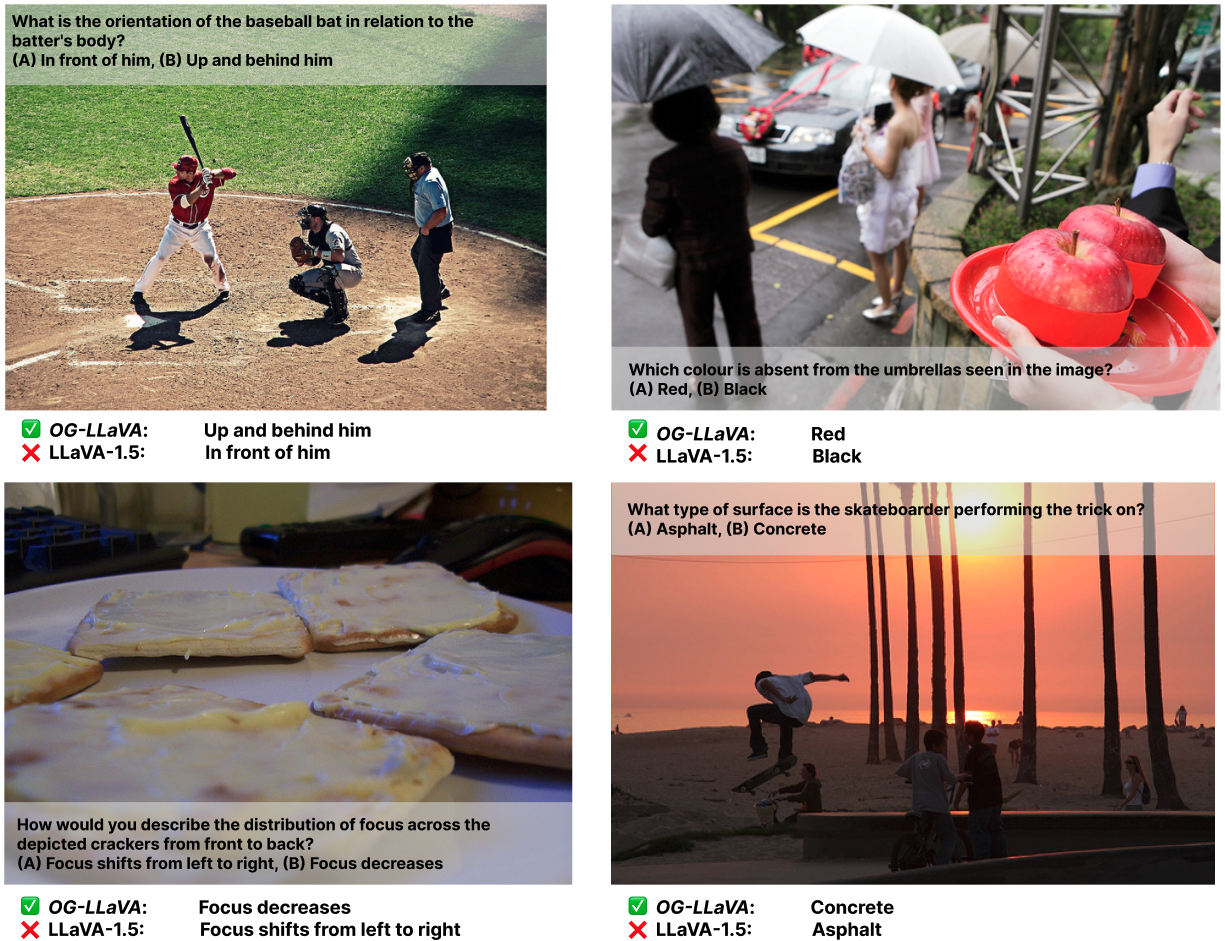

Visualizations

Quick Start

conda create -n ogllava python=3.10 -y
conda activate ogllava
pip install -e .

Evaluation

We employ a local fork of lmms_eval to ensure a correct evaluation of our models. You can run all our benchmarks following those guidelines. Read more at lmms_eval/README.md or on the original lmms_eval repository.

Training

Traing scripts are in scripts/train. Down below is an example of a captioning (pretraining) and a visual instruction tuning (finetune) script.

# First job
echo "Starting pretraining job..."
CAP_EPOCHS=1
SAM2_MASKING_TOKEN=True
CUSTOM_ROTARY_EMBEDDING=False

echo "Pretraining initialized with SAM2_MASKING_TOKEN=$SAM2_MASKING_TOKEN and CUSTOM_ROTARY_EMBEDDING=$CUSTOM_ROTARY_EMBEDDING"

## Choose Model Name
MODEL_NAME="Meta-Llama-3_1-8B-Instruct"
MODEL_DIR="<path_to_directory>/${MODEL_NAME}"
# MODEL_NAME="meta-llama--Llama-3.2-1B-Instruct"
# MODEL_DIR="<path_to_directory>${MODEL_NAME}"
# MODEL_NAME="meta-llama--Llama-3.2-3B-Instruct"
# MODEL_DIR="<path_to_directory>${MODEL_NAME}"

#standard llava pretraining data
DATA_PATH="<path_to_directory>/blip_laion_cc_sbu_558k.json"

IMG_DIR='None'
FILE_NAME_CAP=$(echo "${DATA_PATH##*/}" | cut -d'_' -f1,2)

echo DATAFILE_NAME=$FILE_NAME_CAP

VIS_TOWER="<path_to_directory>/openai/clip-vit-large-patch14-336"
VIS_TOWER_NAME=$(echo "$VIS_TOWER" | awk -F'/' '{print $(NF-1)"-"$NF}')

echo VIS_TOWER_NAME=$VIS_TOWER_NAME


BASE_RUN_NAME="$MODEL_NAME-$VIS_TOWER_NAME-$FILE_NAME_CAP-$CAP_EPOCHS-EPOCHS"
BASE_SAVE_DIR="<path_to_save_directory>/${BASE_RUN_NAME}"


mkdir -p $BASE_SAVE_DIR

CUDA_LAUNCH_BLOCKING=1
ACCELERATE_CPU_AFFINITY=1 torchrun --nproc_per_node="${NUM_GPUS}" --nnodes="${NNODES}" --node_rank="${RANK}" --master_addr="${ADDR}" --master_port="${PORT}" \
    llava/train/train_mem.py \
    --deepspeed scripts/zero3.json \
    --model_name_or_path $MODEL_DIR \
    --version llama3 \
    --data_path $DATA_PATH \
    --image_folder $IMG_DIR \
    --vision_tower $VIS_TOWER \
    --mm_projector_type mlp2x_gelu \
    --tune_mm_mlp_adapter True \
    --mm_vision_select_layer -2 \
    --mm_use_im_start_end False \
    --mm_use_im_patch_token False \
    --bf16 True \
    --output_dir $BASE_SAVE_DIR \
    --num_train_epochs $CAP_EPOCHS \
    --per_device_train_batch_size 8 \
    --per_device_eval_batch_size 4 \
    --gradient_accumulation_steps 4 \
    --evaluation_strategy "no" \
    --save_strategy "steps" \
    --save_steps 24000 \
    --save_total_limit 1 \
    --learning_rate 1e-3 \
    --weight_decay 0. \
    --warmup_ratio 0.03 \
    --lr_scheduler_type "cosine" \
    --logging_steps 1 \
    --tf32 True \
    --model_max_length 2048 \
    --gradient_checkpointing True \
    --dataloader_num_workers 1 \
    --lazy_preprocess True \
    --report_to none \
    --sam2_masking_token $SAM2_MASKING_TOKEN \
    --custom_rotary_embedding $CUSTOM_ROTARY_EMBEDDING \
    --overwrite_output_dir 2>&1 | tee $BASE_SAVE_DIR/out

# Second job
echo "Starting finetuning job..."
SFT_EPOCHS=1
SAM2_MASKING_TOKEN=True
CUSTOM_ROTARY_EMBEDDING=False

echo "SFT initialized with SAM2_MASKING_TOKEN=$SAM2_MASKING_TOKEN and CUSTOM_ROTARY_EMBEDDING=$CUSTOM_ROTARY_EMBEDDING"

MODEL_NAME="Meta-Llama-3_1-8B-Instruct"
MODEL_DIR="<path_to_directory>/${MODEL_NAME}"
# MODEL_NAME="meta-llama--Llama-3.2-1B-Instruct"
# MODEL_DIR="<path_to_directory>${MODEL_NAME}"
# MODEL_NAME="meta-llama--Llama-3.2-3B-Instruct"
# MODEL_DIR="<path_to_directory>${MODEL_NAME}"

DATA_PATH_SFT="<path_to_directory>/llava_mix665k_format_adjusted.json"
IMG_DIR='None'

FILE_NAME_SFT=$(echo "${DATA_PATH_SFT##*/}" | cut -d'_' -f1,2)

echo DATAFILE_NAME=$FILE_NAME_SFT

VIS_TOWER="<path_to_directory>/openai/clip-vit-large-patch14-336"
VIS_TOWER_NAME=$(echo "$VIS_TOWER" | awk -F'/' '{print $(NF-1)"-"$NF}')

echo VIS_TOWER_NAME=$VIS_TOWER_NAME

SFT_RUN_NAME="$MODEL_NAME-$VIS_TOWER_NAME-$FILE_NAME_CAP-$FILE_NAME_SFT-lora-$SFT_EPOCHS-EPOCHS"

echo SFT_RUN_NAME=$SFT_RUN_NAME

PROJECTOR=${BASE_SAVE_DIR}/mm_projector.bin
MASK_TOKEN=${BASE_SAVE_DIR}/mm_bom_mask_token.bin
POS_ENCODING=${BASE_SAVE_DIR}/mm_masks_pos_encoding.bin

SAVE_DIR="<path_to_save_directory>/${SFT_RUN_NAME}"


mkdir -p $SAVE_DIR

CUDA_LAUNCH_BLOCKING=1
ACCELERATE_CPU_AFFINITY=1 torchrun --nproc_per_node="${NUM_GPUS}" --nnodes="${NNODES}" --node_rank="${RANK}" --master_addr="${ADDR}" --master_port="${PORT}" \
    llava/train/train_mem.py \
    --deepspeed scripts/zero3.json \
    --lora_enable True --lora_r 128 --lora_alpha 256 --mm_projector_lr 1e-4 \
    --model_name_or_path $MODEL_DIR \
    --version llama3 \
    --data_path $DATA_PATH_SFT \
    --image_folder $IMG_DIR \
    --vision_tower $VIS_TOWER \
    --pretrain_mm_mlp_adapter $PROJECTOR \
    --pretrain_mm_bom_mask_token $MASK_TOKEN \
    --pretrain_mm_masks_pos_encoding $POS_ENCODING \
    --mm_projector_type mlp2x_gelu \
    --mm_vision_select_layer -2 \
    --mm_use_im_start_end False \
    --mm_use_im_patch_token False \
    --image_aspect_ratio pad \
    --group_by_modality_length True \
    --bf16 True \
    --output_dir $SAVE_DIR \
    --num_train_epochs $SFT_EPOCHS \
    --per_device_train_batch_size 4 \
    --per_device_eval_batch_size 4 \
    --gradient_accumulation_steps 4 \
    --evaluation_strategy "no" \
    --save_strategy "steps" \
    --save_steps 50000 \
    --save_total_limit 1 \
    --learning_rate 1e-4 \
    --weight_decay 0. \
    --warmup_ratio 0.06 \
    --max_grad_norm 0.3 \
    --lr_scheduler_type "cosine" \
    --logging_steps 1 \
    --tf32 True \
    --model_max_length 2048 \
    --gradient_checkpointing True \
    --dataloader_num_workers 1 \
    --lazy_preprocess True \
    --report_to none \
    --overwrite_output_dir \
    --sam2_masking_token $SAM2_MASKING_TOKEN \
    --custom_rotary_embedding $CUSTOM_ROTARY_EMBEDDING \
    2>&1 | tee $SAVE_DIR/out

Acknowledgments

We would like to thank the following works that inspired/enabled this project:

• When and why vision-language models behave like bags-of-words, and what to do about it?
• In-Context Learning Improves Compositional Understanding of Vision-Language Models
• lmms-eval
• Improved Baselines with Visual Instruction Tuning + code
• ConMe: Rethinking Evaluation of Compositional Reasoning for Modern VLMs
• Eyes Wide Shut? Exploring the Visual Shortcomings of Multimodal LLMs
• Cambrian-1: A Fully Open, Vision-Centric Exploration of Multimodal LLMs
• Subobject-level Image Tokenization

Citation

If you find our work useful for your research and applications, please consider citing us.

@inproceedings{nulli2025objectguided,
title={Object-Guided Visual Tokens: Eliciting Compositional Reasoning in Multimodal Language Models},
author={Matteo Nulli and Ivona Najdenkoska and Mohammad Mahdi Derakhshani and Yuki M Asano},
booktitle={EurIPS 2025 Workshop on Principles of Generative Modeling (PriGM)},
year={2025},
url={https://openreview.net/forum?id=yvY1T3hHEQ}
}
