LabStack

Modular rackmount solutions for Raspberry Pi's and other SBC's and accessories.

Hey Everyone!

Just to keep everyone in the loop, I will continue to work on uploading instructions and images as I have time. In the meantime, all of the current STLs are available!

NOTE: Additional hardware IS required for most models.

Here's a short list of hardware off the top of my head:

• 2U Printed Bracket - Requires 16x M3x4x5mm Brass Heatset Inserts, 4x M3x6mm (or other M3x6mm thru M3x20mm) screws per module (BHCS or SHCS, no FHCS).

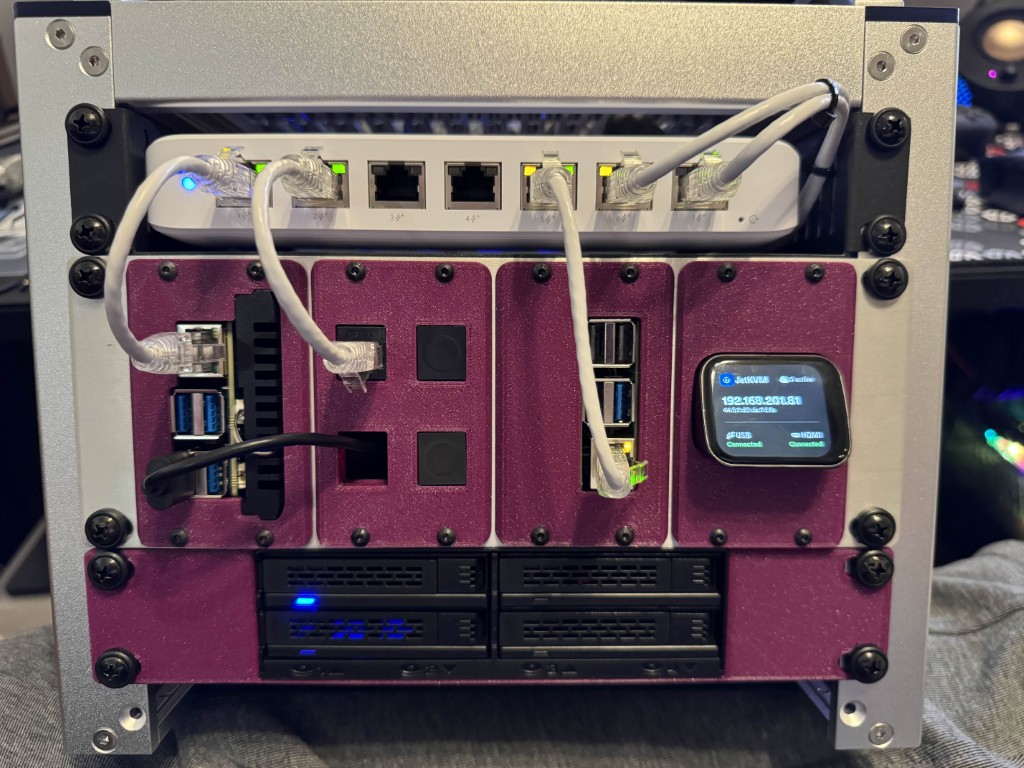

• 1U 5.25" Drive Bay Mount (designed specifically for the Icy Dock ExpressCage MB324SP-B) - Requires 8x M3x6mm screws (BHCS or SHCS, no FHCS).

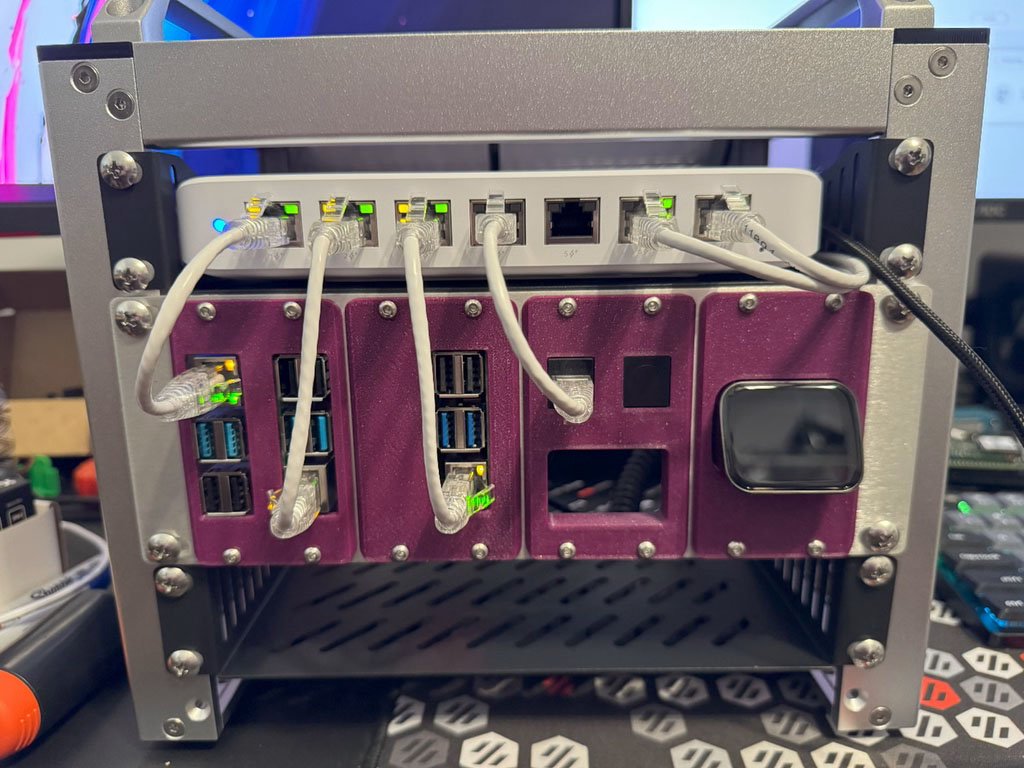

• General Pi Mounts (2x Pi, 1x Pi, etc.) - Requires 4x M2.5x5 SHCS screws. If using a HAT (PoE or otherwise), standoffs and/or other length M2.5 screws may be required.
• JetKVM Modules - Requires 2x M2x12 SHCS screws per JetKVM unit.

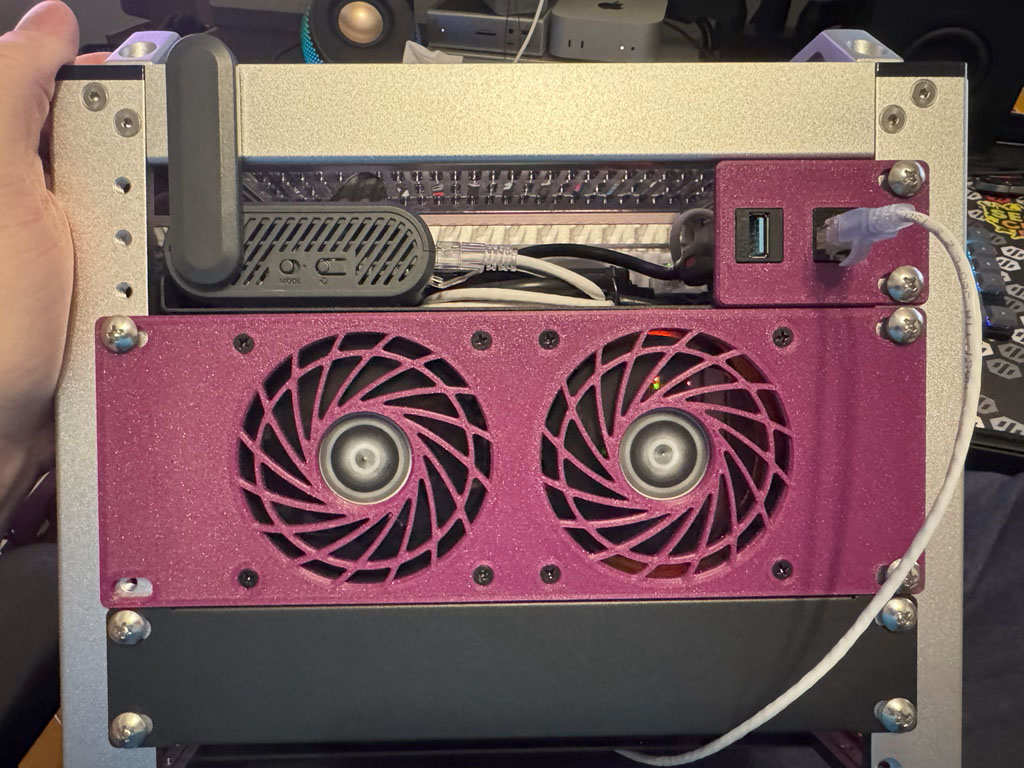

• 80mm Fan Panel - Requires the coarse-thread screws that the fans come with.

I am open to helping create mounts for specific models within reason, but will be releasing CAD for users to create their own mounts! The possibilities are endless!
