Grounding DINO 1.5

✨ First-Time Application: If you are interested in our project and wish to try our algorithm, you will need to apply for the corresponding API Token through our request API token website for your first attempt.

📌 Request Additional Token Quotas: At this stage, we now support WeChat Pay as a payment channel. Users can purchase additional API calls through our official platform. If you encounter any issues during the purchase process or have other collaboration needs, feel free to contact us via this email address: deepdataspace_dm@idea.edu.cn.

🔥 Grounding DINO 1.6 Release: Grounding DINO 1.6 Pro establishes new SOTA results on zero-shot transfer benchmarks: 55.4 AP on COCO , 57.7 AP on LVIS-minival, and 51.1 AP on LVIS-val. Moreover, it demonstrates significantly superior performance compared with the 1.5 Pro model in several specific detection scenarios, such as Animal Detection, Text Detection, etc. Please refer to our Official Blog for more details about the 1.6 release.

Contents

• Contents
• Introduction
• Model Framework
• Performance
  • Side-by-Side Performance Comparison with Grounding DINO
  • Zero-Shot Transfer Results of Grounding DINO 1.5 & 1.6 Pro
  • Few-Shot Transfer Results of Grounding DINO 1.5 Pro
  • Fine-tuning Results on Downstream Datasets
• API Usage
  • 1. Installation
  • 2. Request API from DeepDataSpace
  • 3. Runing demo code
  • 4. Online Grdio demo
• Case Analysis and Qualitative Visualization
• Related Work
• LICENSE
• BibTeX

Introduction

We introduce Grounding DINO 1.5, a suite of advanced open-set object detection models developed by IDEA Research, which aims to advanced the "Edge" of open-set object detection. The suite encompasses two models:

• Grounding DINO 1.5 Pro: Our most capable model for open-set object detection, which is designed for stronger generalization capability across a wide range of scenarios.

• Grounding DINO 1.5 Edge: Our most efficient model for edge computing scenarios, which is optimized for faster speed demanded in many applications requiring edge deployment.

Note: We use "edge" for its dual meaning both as in pushing the boundaries and as in running on edge devices.

Model Framework

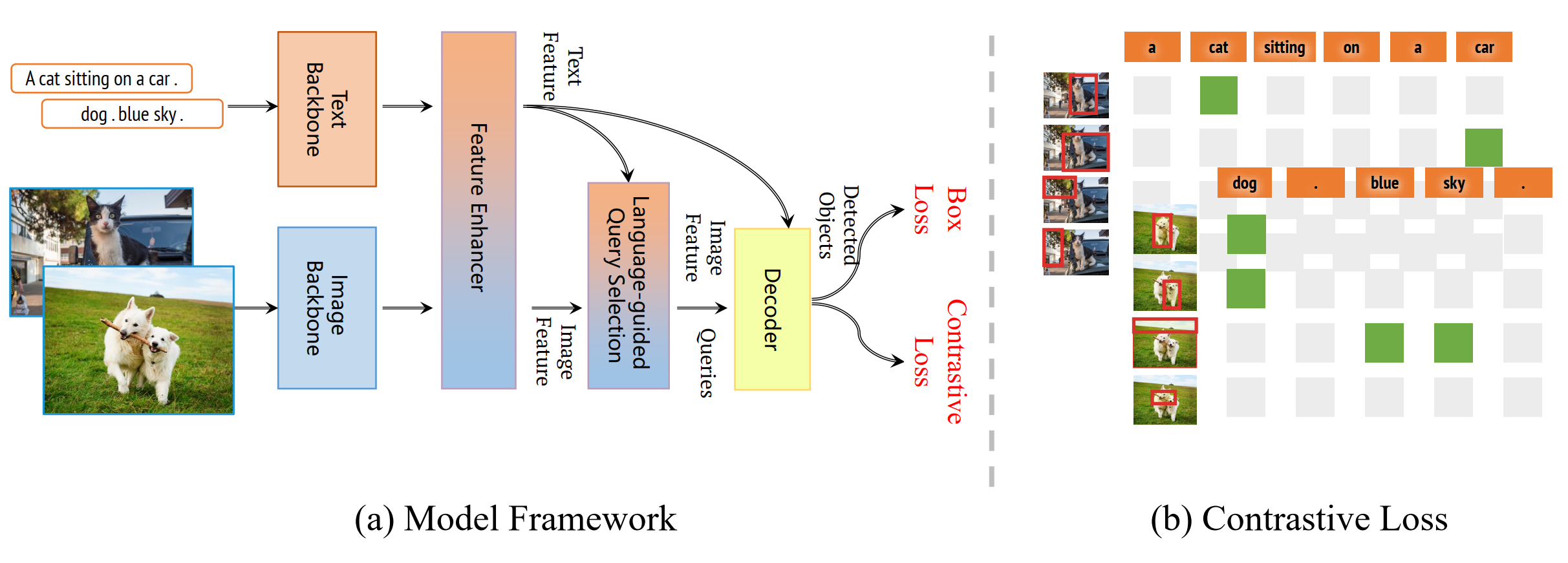

The overall framework of Grounding DINO 1.5 is as the following image:

Grounding DINO 1.5 Pro preserves the core architecture of Grounding DINO which employs a deep early fusion architecture.

Performance

Side-by-Side Performance Comparison with Grounding DINO

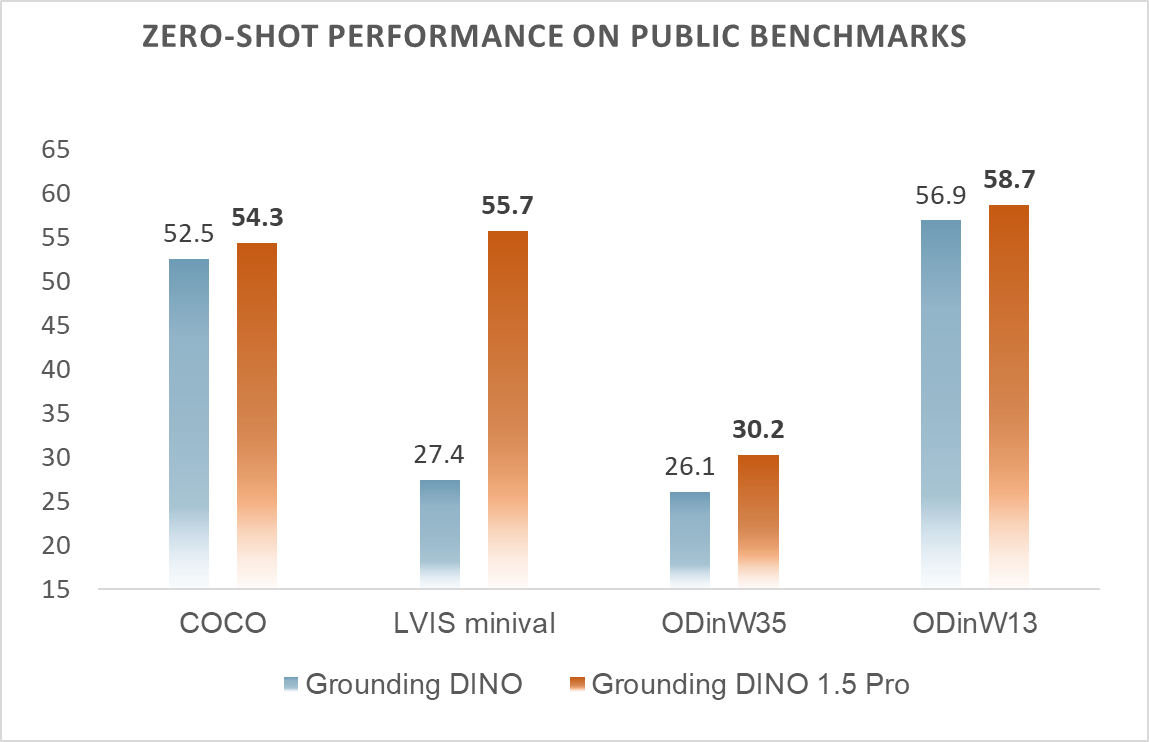

Grounding DINO 1.5 Pro vs Grounding DINO

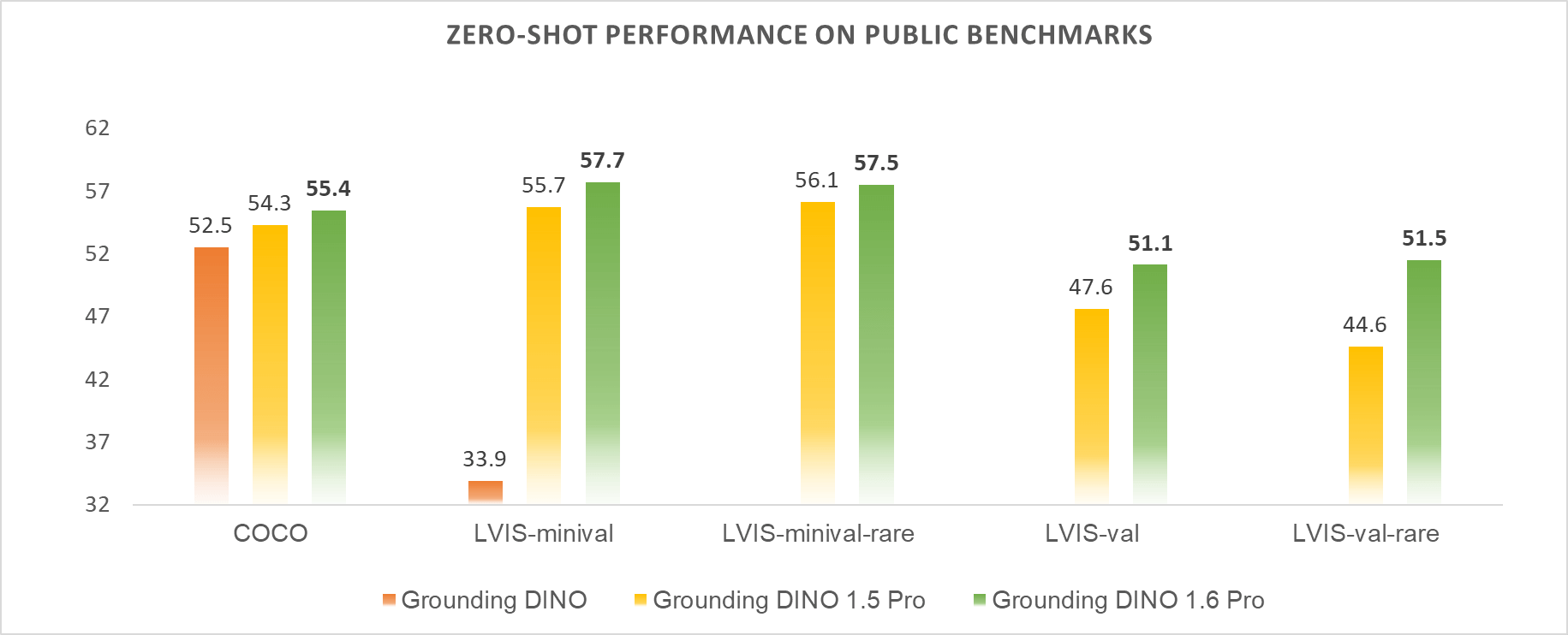

Zero-Shot Transfer Results of Grounding DINO 1.5 & 1.6 Pro

• Grounding DINO 1.5 Pro achieves SOTA performance on COCO, LVIS-minival, LVIS-val, and ODinW35 zero-shot transfer benchmarks.
• Grounding DINO 1.6 Pro has significantly improved the model's performance on the COCO, LVIS zero-shot transfer benchmarks, particularly in the LVIS-rare classes.

Grounding DINO 1.5 as a Strong Few-Shot Learner

We validate the transferability of Grounding DINO 1.5 Pro on ODinW few-shot benchmarks and Grounding DINO 1.5 Pro has achieved new SOTA results on the ODinW few-shot setting.

• "Full" means fine-tuning the full model.
• Follow GLIP, for each few-shot setting, we train the models three times using different random seeds for train/validation splits.

Fine-tuning Results on Downstream Datasets

• † indicates results of fine-tuning with LVIS base categories only.

API Usage

1. Installation

pip install -v -e .

2. Request API from DeepDataSpace

Refer to the DeepDataSpace for API keys: https://deepdataspace.com/request_api

3. Runing demo code

python demo/demo.py --token <API_TOKEN>

4. Online Grdio demo

python gradio_app.py --token <API_TOKEN>

Case Analysis and Qualitative Visualization

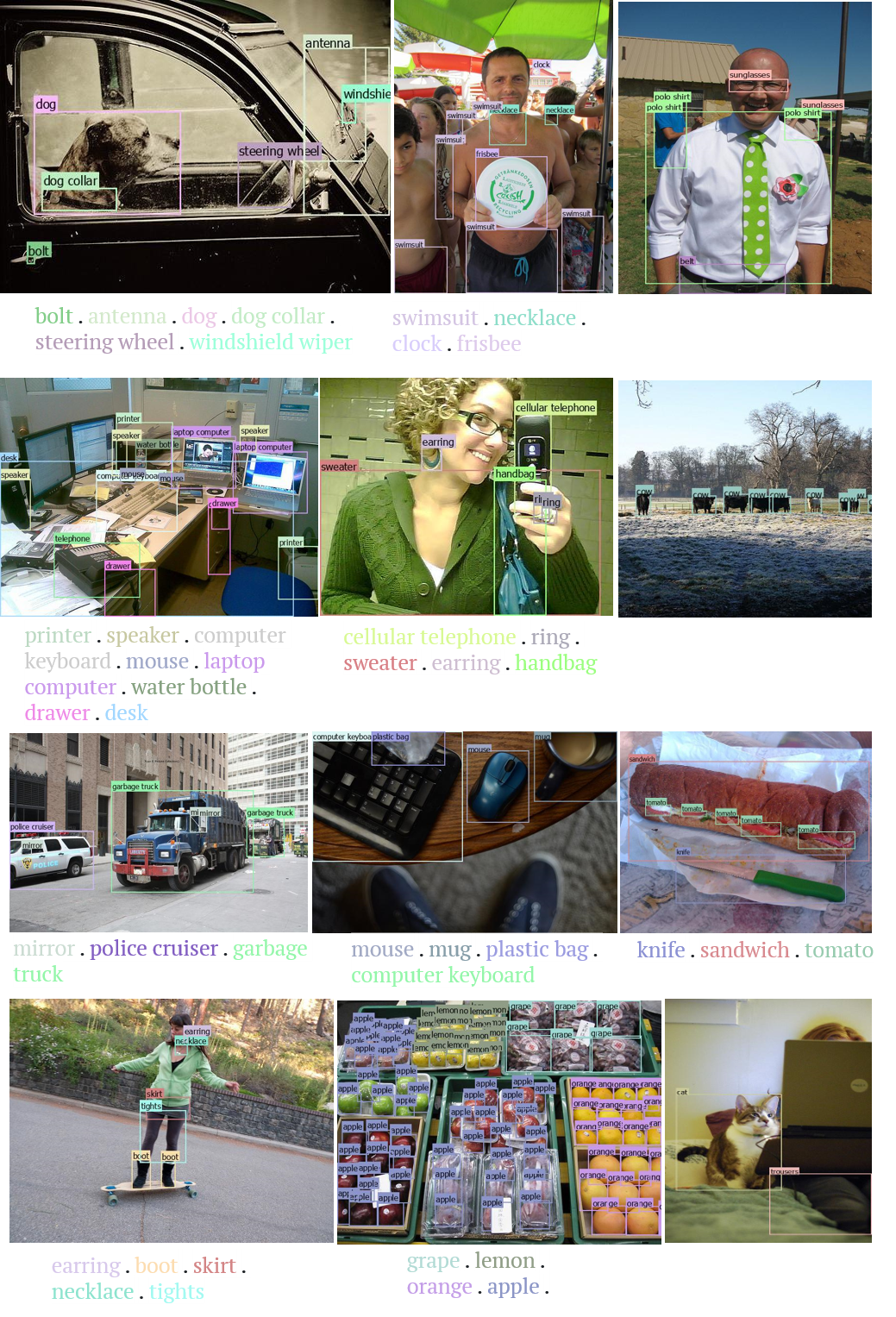

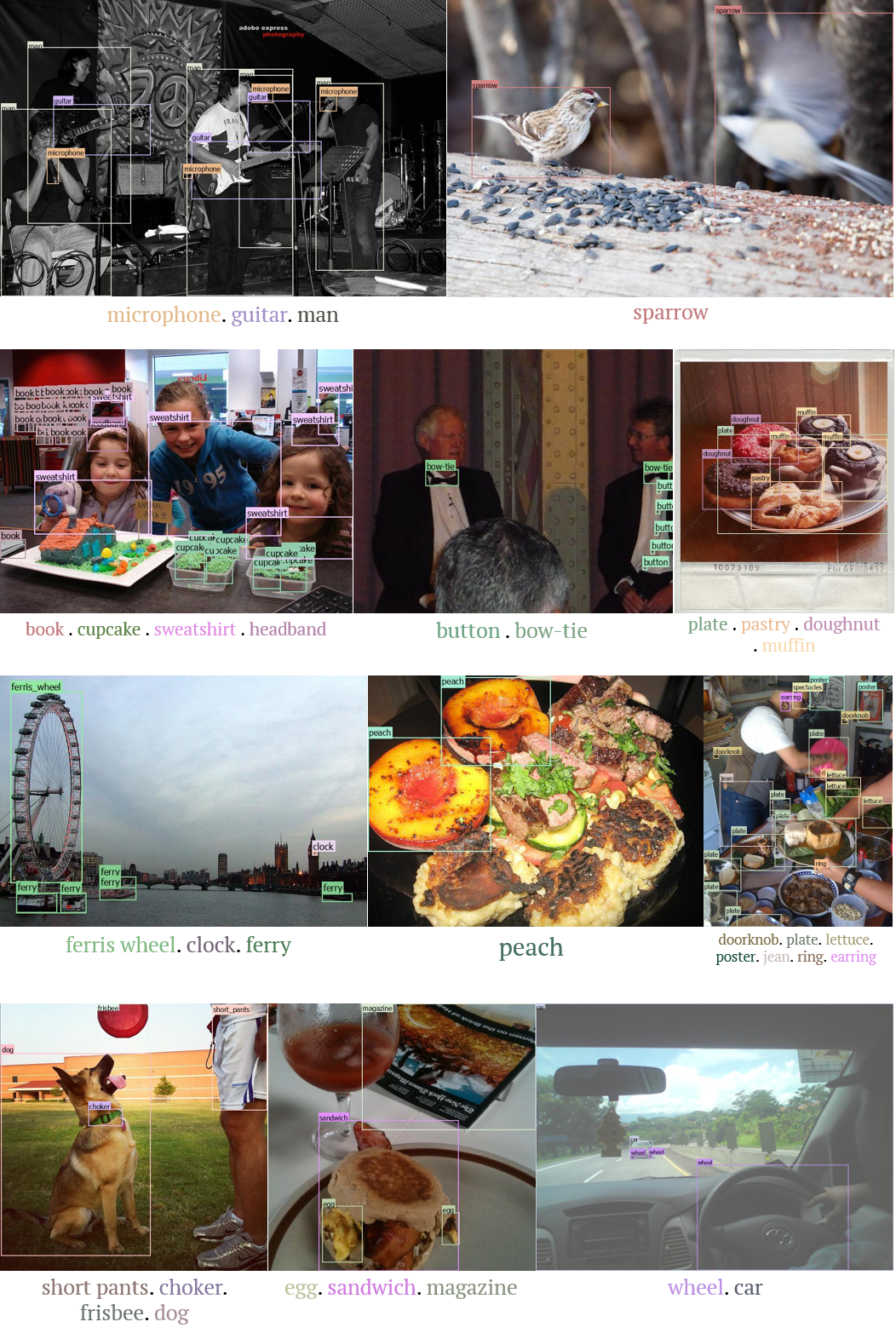

Common Object Detection

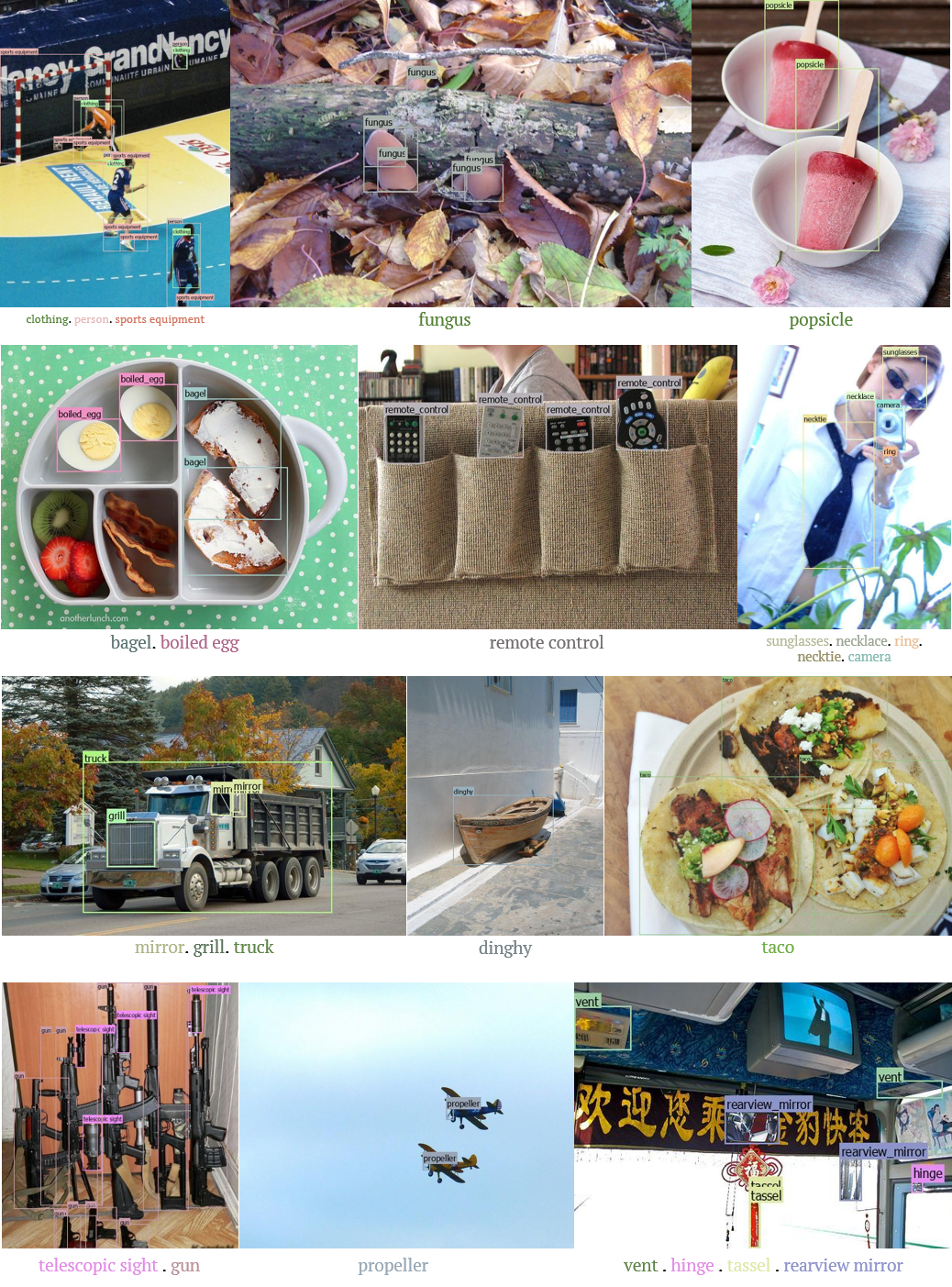

Long-tailed Object Detection

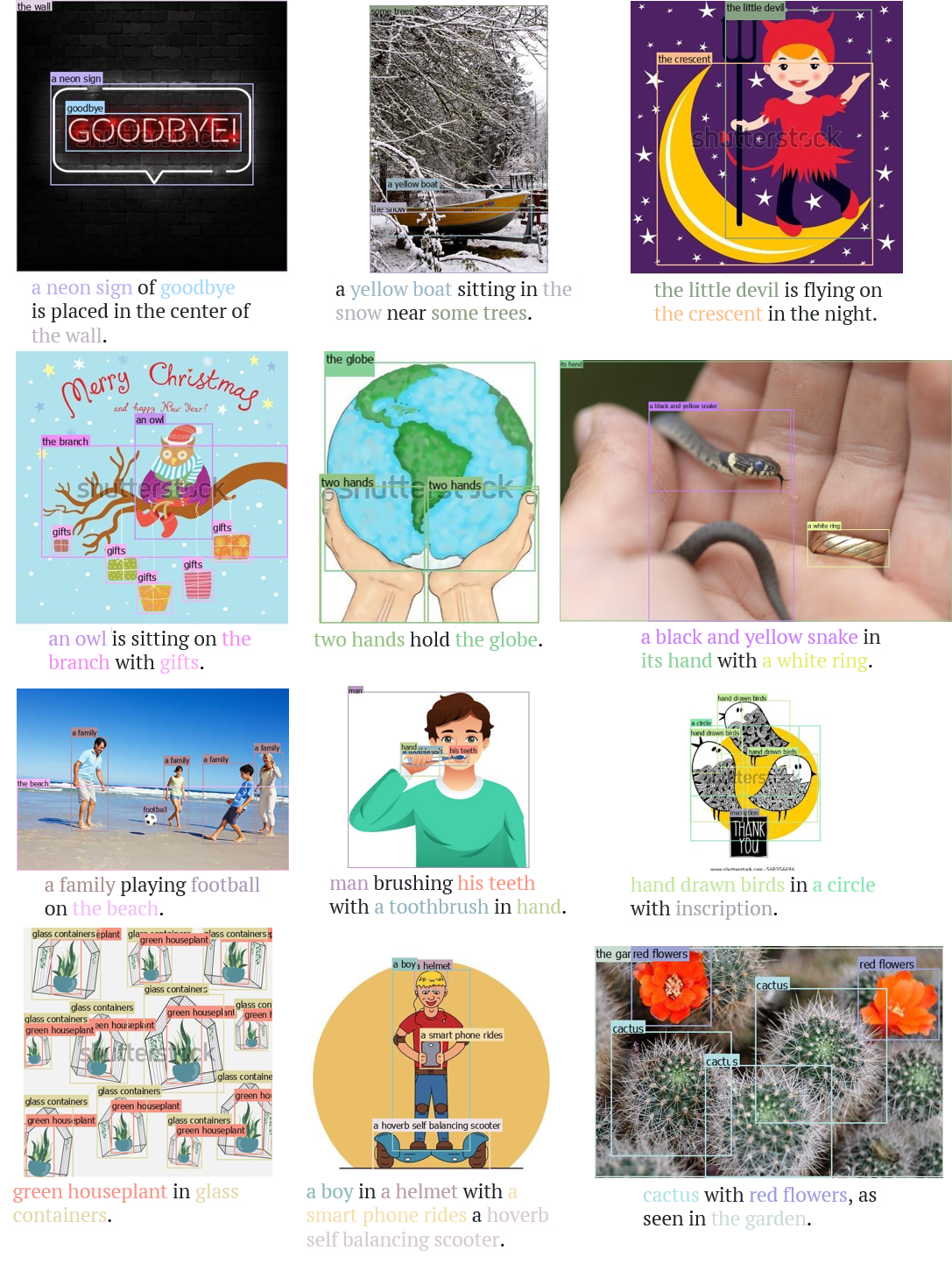

Short Caption Grounding

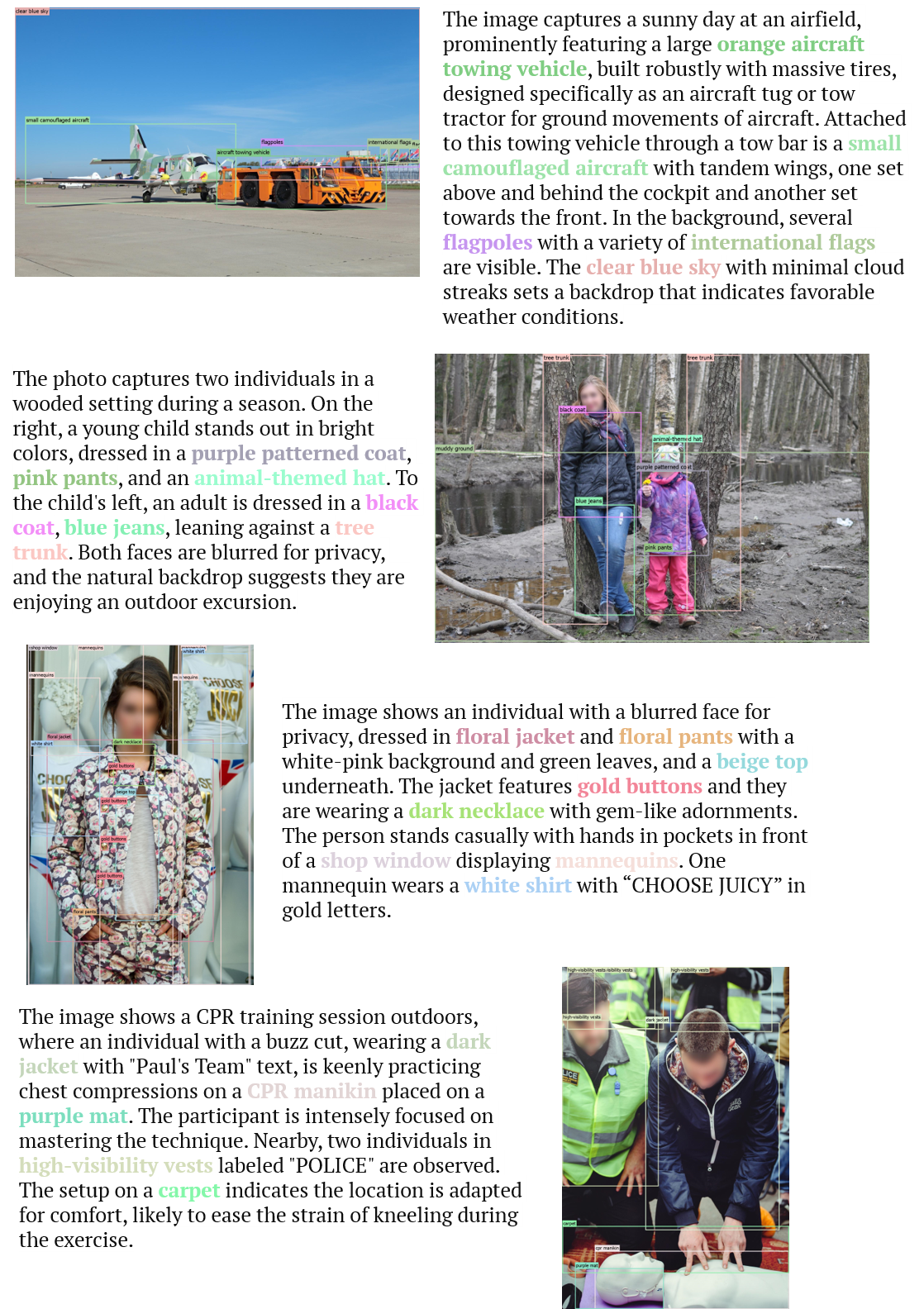

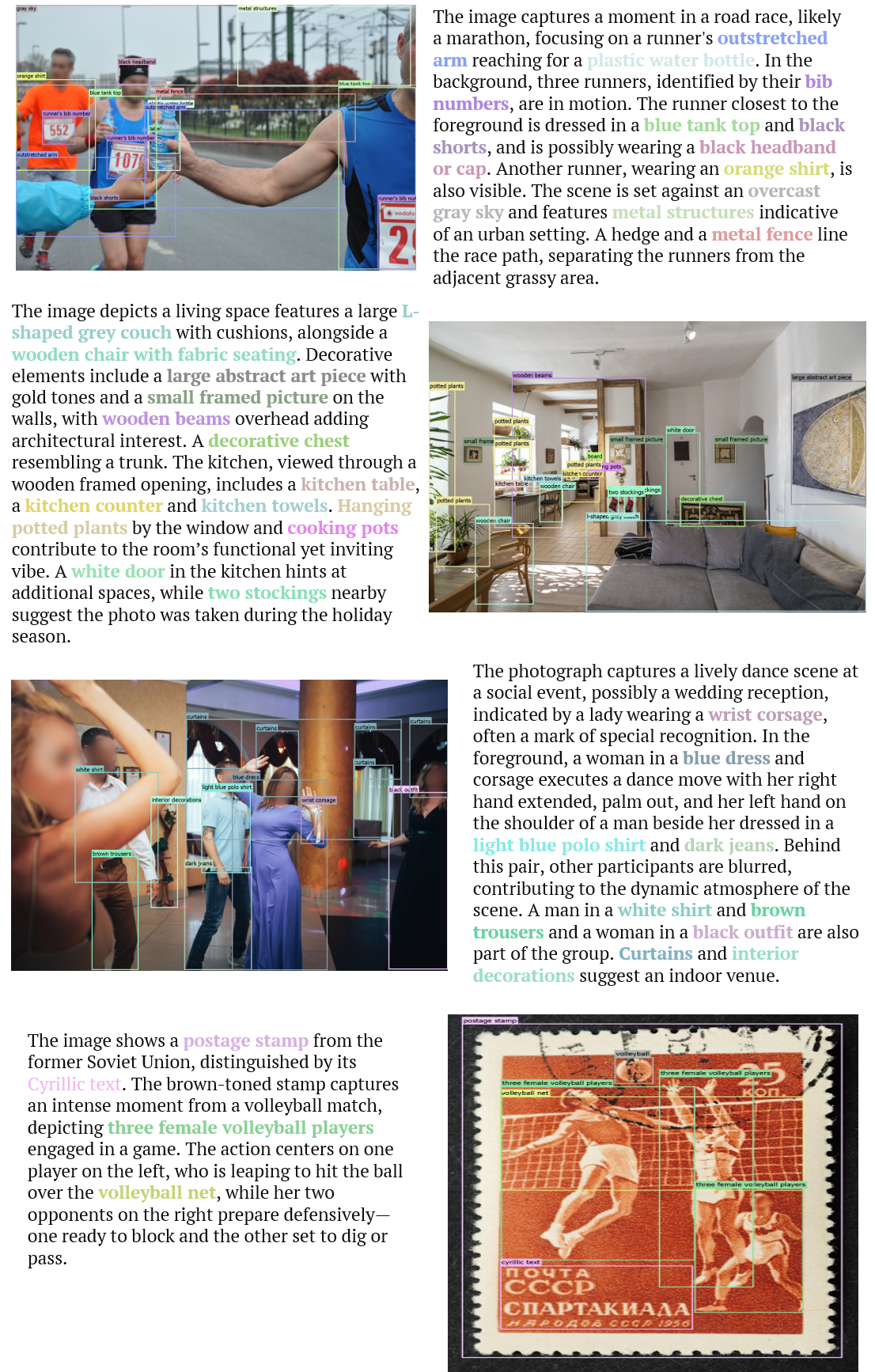

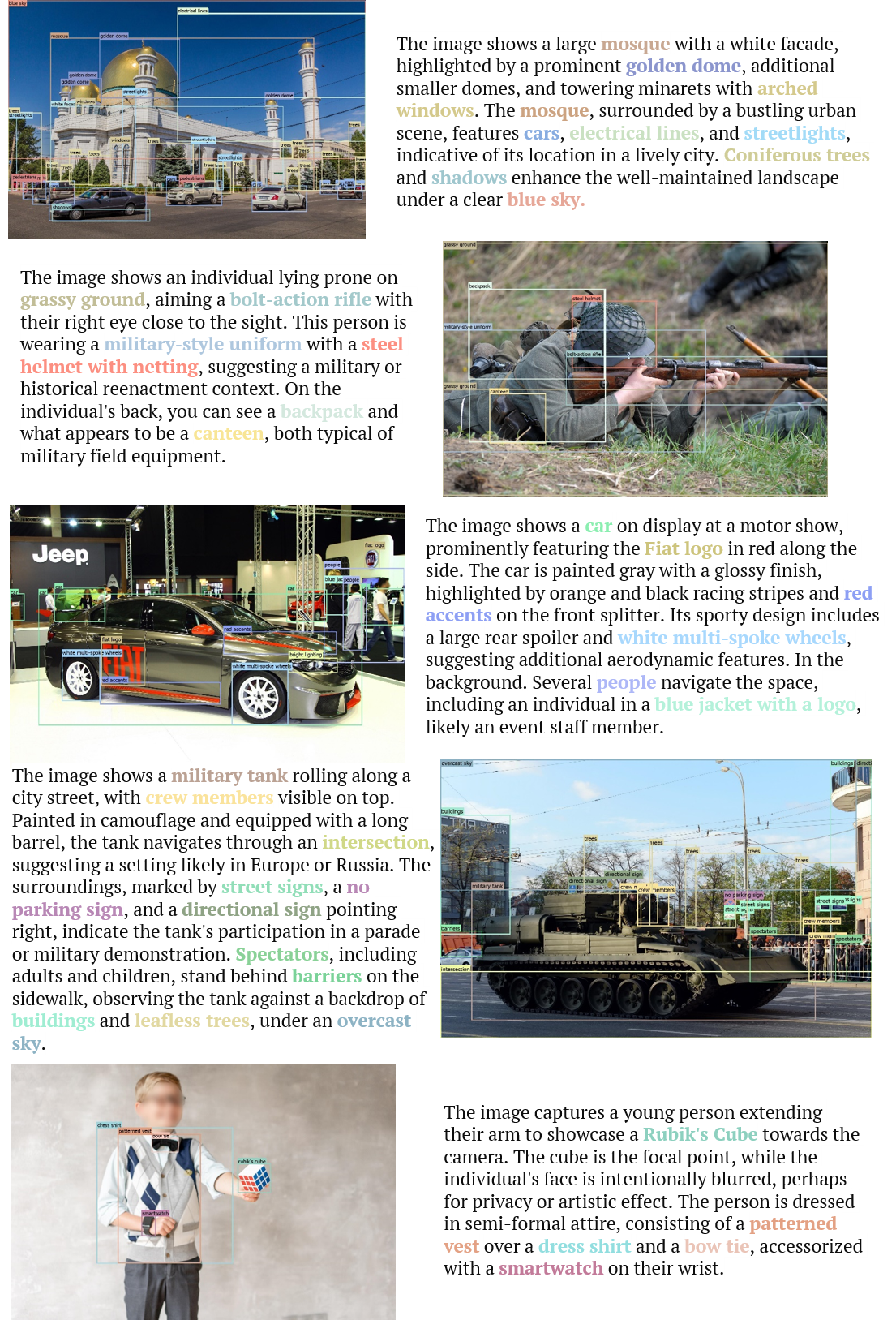

Long Caption Grounding

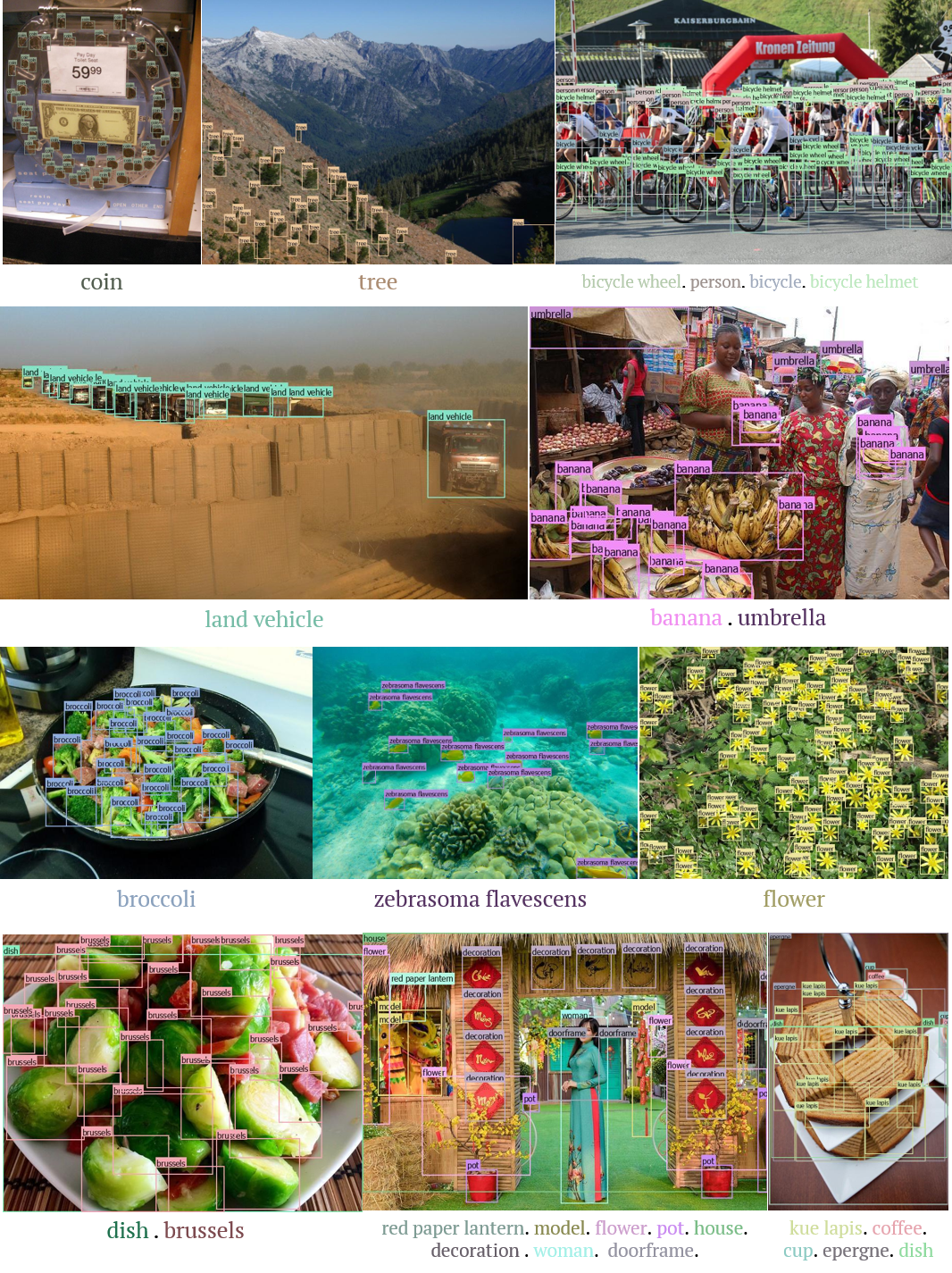

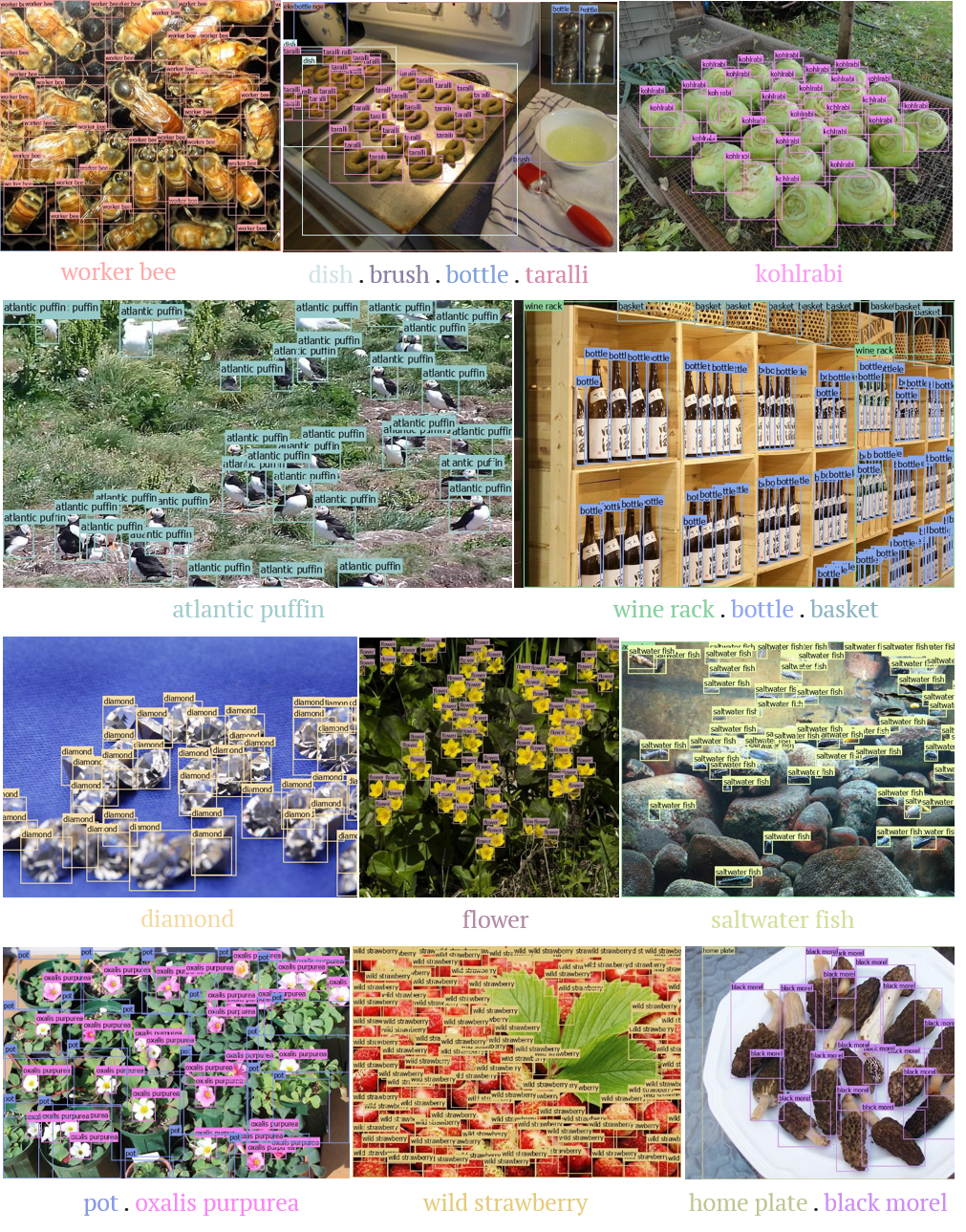

Dense Object Detection

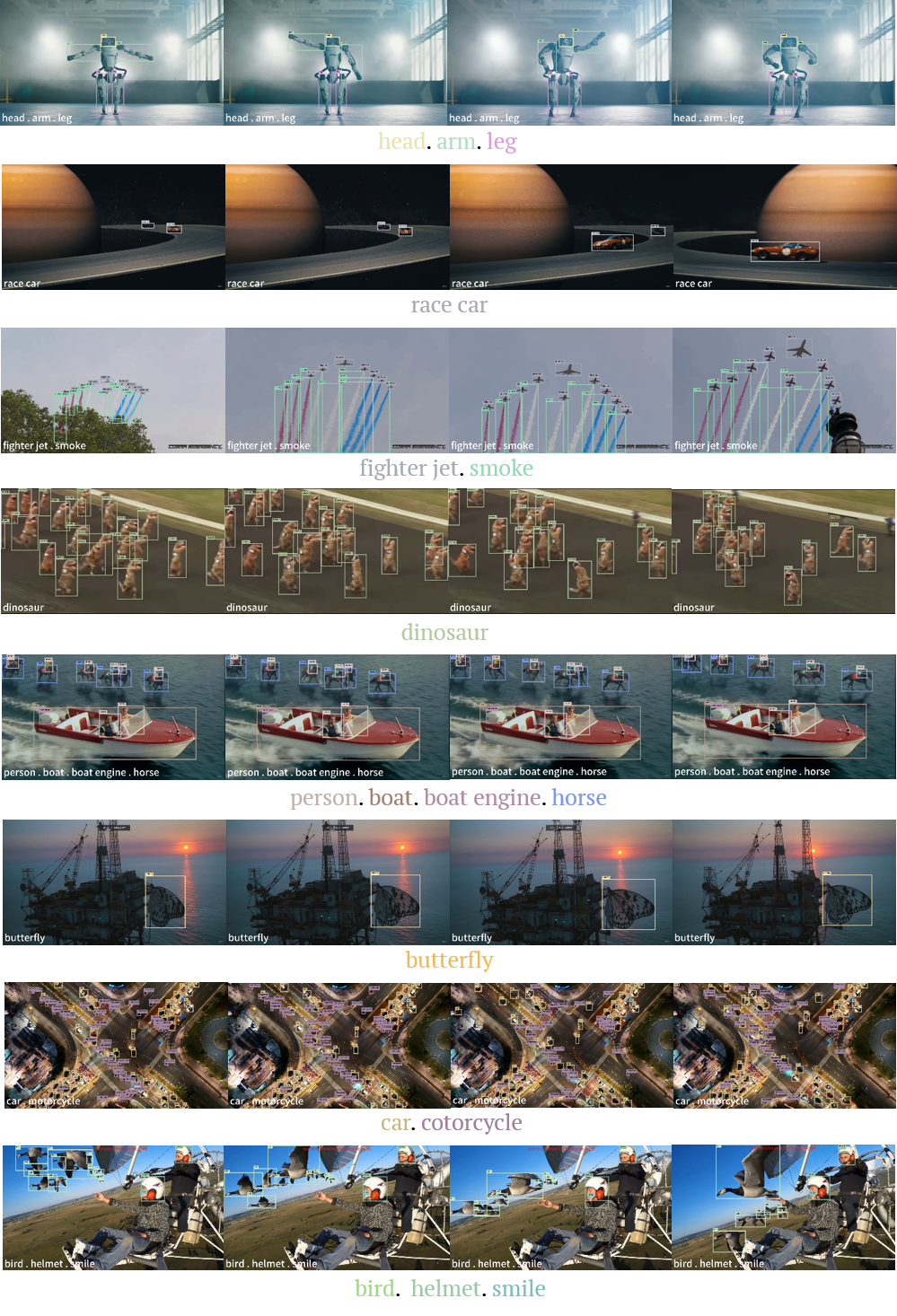

Video Object Detection

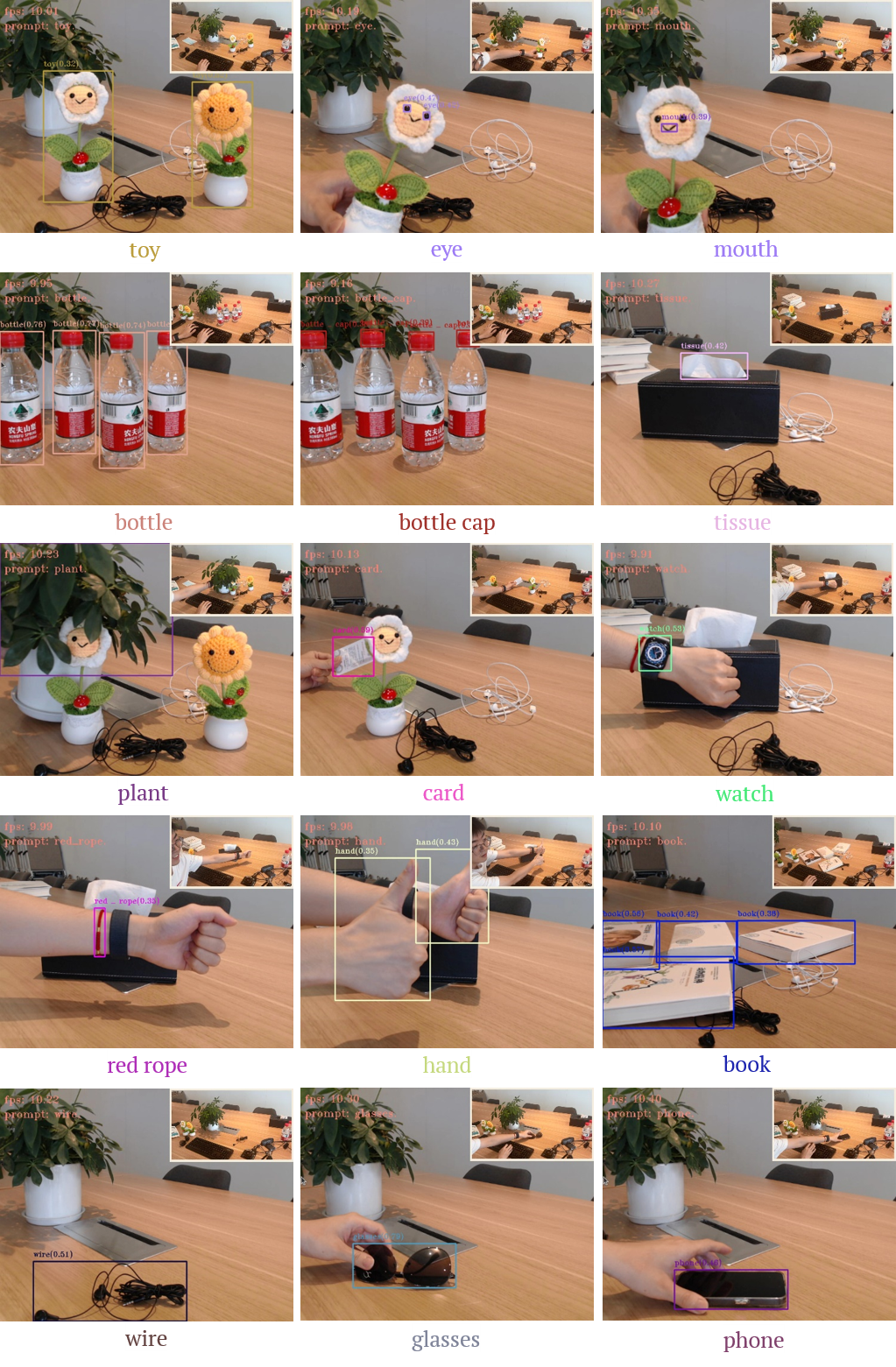

Advanced Object Detection on Edge Devices

Related Work

• Grounding DINO: Strong open-set object detection model.
• Grounded-Segment-Anything: Open-set detection and segmentation model by combining Grounding DINO with SAM.
• T-Rex/T-Rex2: Generic open-set detection model supporting both text and visual prompts.

LICENSE

Grounding DINO 1.5 API License

Grounding DINO 1.5 is released under the Apache 2.0 license. Please see the LICENSE file for more information.

Copyright (c) IDEA. All rights reserved.

Licensed under the Apache License, Version 2.0 (the "License"); you may not use these files except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
