STRAP: Spatio-Temporal Pattern Retrieval for Out-of-Distribution Generalization

---

📋 Table of Contents

• ✨ Overview
• 🏗️ Repository Structure
• 🚀 Getting Started
• 🙏 Acknowledgements
• 📝 Citation
• 🌟 Star History

---

✨ Overview

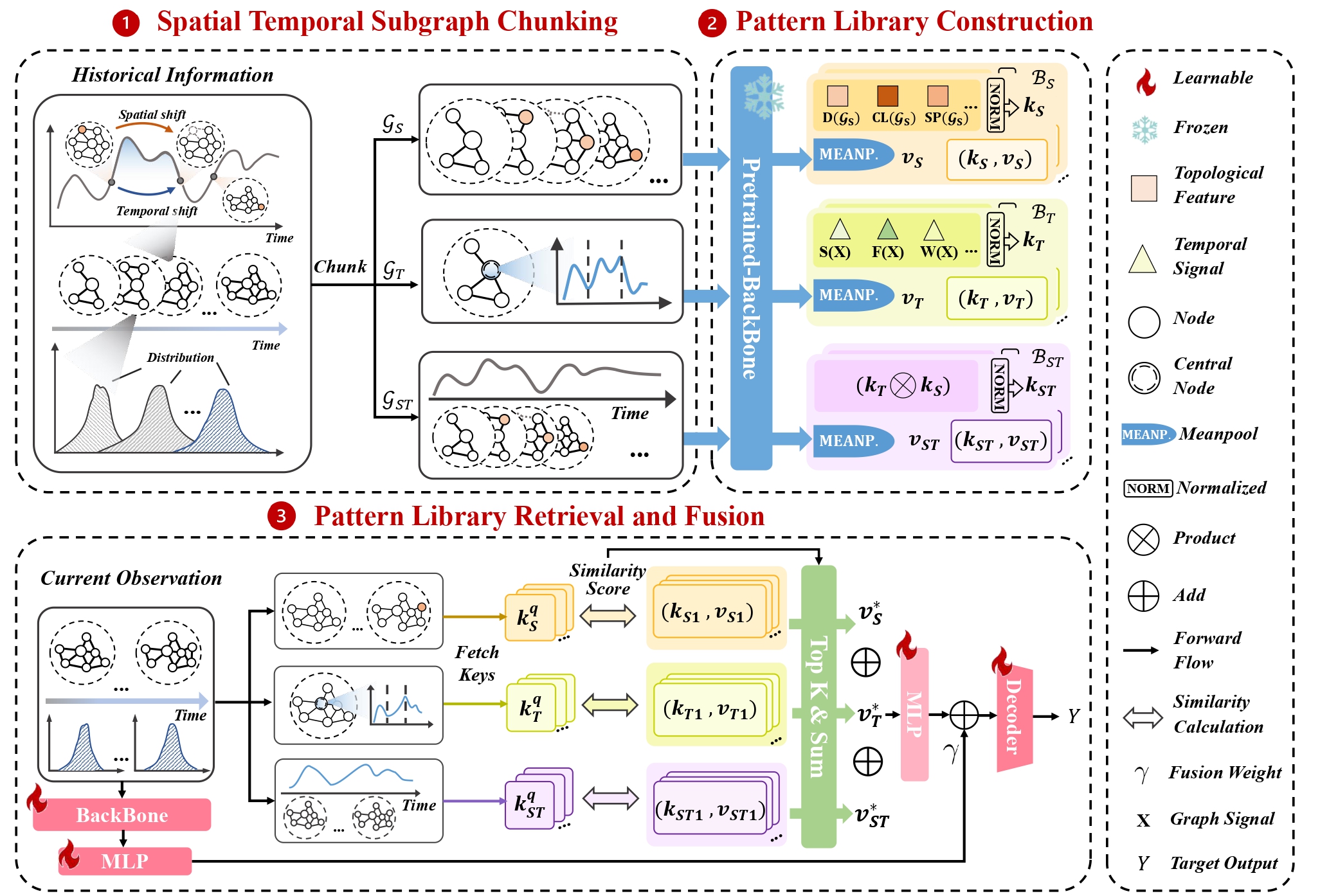

Spatio-Temporal Graph Neural Networks (STGNNs) have emerged as a powerful tool for modeling dynamic graph-structured data across diverse domains. However, they often fail to generalize in Spatio-Temporal Out-of-Distribution (STOOD) scenarios, where both temporal dynamics and spatial structures evolve beyond the training distribution. To address this problem, we propose STRAP, which enhances model generalization by integrating retrieval-augmented learning into the STGNN continue learning pipeline. Extensive experiments across multiple real-world streaming graph datasets show that \methodname consistently outperforms state-of-the-art STGNN baselines on STOOD tasks, demonstrating its robustness, adaptability, and strong generalization capability without task-specific fine-tuning.

---

🏗️ Repository Structure

STRAP/
│
├── 📄 README.md                    # Project documentation
├── 📄 LICENSE                      # Apache 2.0 License
├── 📄 environment.yaml             # Conda environment configuration
├── 🚀 main.py                      # Main entry point for experiments
├── 🚀 stkec_main.py               # STKEC experiments entry point
├── 📜 run.sh                       # Batch experiment execution script
│
├── 📁 conf/                        # ⚙️ Configuration files
│   ├── AIR/                       # Air quality dataset configs
│   ├── ENERGY-Wind/               # Wind energy dataset configs
│   └── PEMS/                      # Traffic dataset configs
│       ├── strap.json
│       ├── ewc.json
│       └── ...
│
├── 📁 src/                         # 💻 Source code
│   ├── dataer/                    # Data loading and preprocessing
│   │   ├── ...
│   │
│   ├── model/                     # Model implementations
│   │   ├── ...             # Model components
│   │
│   └── trainer/                   # Training and evaluation
│       ├── ...
│
├── 📁 utils/                       # 🛠️ Utility functions
│   ├── ...
│
├── 📁 font/                        # Font files for visualization
├── 📁 log/                         # 📊 Training logs and checkpoints
└── 📁 data/                        # 💾 Dataset storage (create this)

---

🚀 Getting Started

📋 Prerequisites

Before you begin, ensure you have the following installed:

• Conda or Miniconda (Download)
• NVIDIA GPU with CUDA support (recommended)
• Python 3.8+

💻 Usage

# ENERGY-Wind, the same for other datasets.
bash run.sh

---

STRAP implementation and runtime

main.py uses RAP_Model in src/model/model.py. RAP passes its actual STGNN/DCRNN/ASTGNN/TGCN backbone to PatternExtractor in src/model/pattern_features.py; src/model/STRAP.py owns the three pattern libraries, paired history, retrieval and learned fusion.

Topology includes degree, clustering, closeness, betweenness, eigenvector centrality and neighborhood degree statistics. It covers every connected component. The topology embedding contributes to key matching and is trained through retrieval weights. Node and edge curvature retain the original STRAP formulas. db4 uses symmetric boundary extension, including short input windows. No key constructor substitutes zeros or random features after an error.

initialize_training_patterns in src/trainer/engine.py builds each year's libraries before training or EWC. It uses the latest consecutive training windows (pattern_build_samples, default batch_size), reverses the repository's newest-first dataset order into chronological order, and builds on the full graph even in incremental years. Skipping parameter training for a year with no new nodes still initializes that year's library. Prediction never builds a library from validation/test data. Direct RAP users must call initialize_patterns(training_data, adj) with chronological data before the first prediction, or load a saved year with set_year(year).

History is sampled by inverse key norm, with age decay and an adaptive merge ratio. Every sampled index selects its key, value and topology together. Each archive contains only its own year's selected current patterns, avoiding repeated accumulation of ancestors. history_ratio defaults to 0.3; history_limit defaults to 10000 per library. Rebuilding a year creates a new version.

• Active keys, distinct values and topology are model-device buffers. The same fixed Rademacher projection transforms queries and keys. Exact Euclidean search, per-library candidate selection, global top-k and distance-weighted aggregation stay on the device. Feature and retrieved-pattern embeddings are combined with fusion_weight (default 0.7).
• use_spatial_lib, use_temporal_lib and use_spatiotemporal_lib default to true. Their corresponding *_dropout settings apply during training. Cross patterns require all three libraries; independent spectral patterns require only the spatiotemporal library. return_pattern_or_value selects the retrieved payload and defaults to value.
• k_neighbors defaults to 50. Per-library retrieval counts retain defaults of 50000/50000/100000. Query/key search chunks default to 128/4096 and can be set with retrieval_batch_size/retrieval_key_batch_size. Gradients are computed only for selected distances, avoiding a dense retrieval autograd graph. There is no special bypass for batches larger than 256.
• temporal_k_hop defaults to 2; max_neighbors to 20; max_cluster_nodes to 100. time_window/time_overlap default to 12/6. spatial_clusters defaults to automatic selection. cross_pattern_count and curvature_pattern_count default to 2000 (the latter per curvature category). Spatial groups retain a minimum size of 5; spectral groups retain a minimum size of 3. Counts per constructor are logged and saved as source_counts, including empty groups.
• Graph partitions, centralities and shortest paths use a single CPU graph snapshot at build time. Indices and structural descriptors are uploaded once and reused. Wavelets, numerical moments, curvature, outer products, sampling and retrieval use Torch on the input device. CPU graph preprocessing and library disk I/O remain explicit boundaries.

The full method stores versioned yearly .pt files and metadata in pattern_libraries/strap_full_v1/. The previous simplified implementation's caches and checkpoints are incompatible: start a new training run to generate full-method artifacts. Loading remains strict; missing prediction libraries, invalid configuration and extraction errors are reported directly.

Select CUDA with --gpuid N, or CPU explicitly with --gpuid -1. Tensor metrics, PECPM history and drift histograms also remain on the selected device. Dataset batches enter from host memory; CUDA loaders use pinning and non-blocking copies. No additional test files are shipped. Full-dataset accuracy and GPU throughput must be measured with the external datasets on a CUDA machine.

---

🙏 Acknowledgements

We would like to express our gratitude to:

• EAC: We thank the authors for their excellent work. Our implementation builds upon their codebase: EAC Repository

---

📝 Citation

If you find this work useful for your research, please consider citing our paper:

@article{zhang2025strap,
  title={STRAP: Spatio-Temporal Pattern Retrieval for Out-of-Distribution Generalization},
  author={Zhang, Haoyu and Zhang, Wentao and Miao, Hao and Jiang, Xinke and Fang, Yuchen and Zhang, Yifan},
  journal={arXiv preprint arXiv:2505.19547},
  year={2025}
}

---

🌟 Star History

---
