Minerva

RAG platform for educational use at DSV, Stockholm University. Teachers upload course materials; students get an AI assistant grounded in those documents, with safeguards designed to support learning.

Features

• Two RAG strategies: simple (one-shot retrieve-then-answer) and FLARE (multi-turn, logprob-triggered mid-stream retrieval). The legacy parallel strategy was retired in favour of the tool-use axis below.
• Optional agentic phase: orthogonal tool_use_enabled toggle on each course. When on, generation splits into a hidden-thinking research phase (model calls keyword_search / RAG seed / KG-expansion tools, with FLARE's logprob signal injected as a tool event) followed by a clean writeup phase. Per-tool expandable results, research thinking, and a research/writeup token-split are persisted alongside the message and rendered above the assistant bubble.
• Inline citations + sources panel: assistant replies get inline [n] badges (accepts naked-digit and filename-form variants); a right-rail sources panel shows what was actually cited, with a count button that resets the uncited-override on fresh-open.
• Course knowledge graph: documents are auto-classified (lecture, transcript, exercise, solution, ...) on gpt-oss-120b and cross-linked with part_of_unit / solution_of / prerequisite_of / applied_in edges. Retrieval expands top-k along the graph. Gated by the course_kg feature flag.
• Aegis prompt coaching: per-keystroke live analyzer (gpt-oss-120b, JSON-schema-strict, reasoning_effort: low) that returns 0..=2 tagged suggestions for the draft the student is typing, severity-coloured against an 8-kind CLEAR-grounded rubric, with a Beginner/Expert calibration toggle. Soft-blocks Send when suggestions are present; Use ideas rewrites the draft via gpt-oss-120b. Mobile drawer + tablet support; per-iteration history persisted for export. Gated by the aegis feature flag.
• Extraction guard: separate from Aegis. Per-turn intent classifier + per-chunk output check (gpt-oss-120b, low effort) + Socratic rewriter (gpt-oss-120b), with KG-driven multi-turn proximity tracking. Gated by the extraction_guard feature flag.

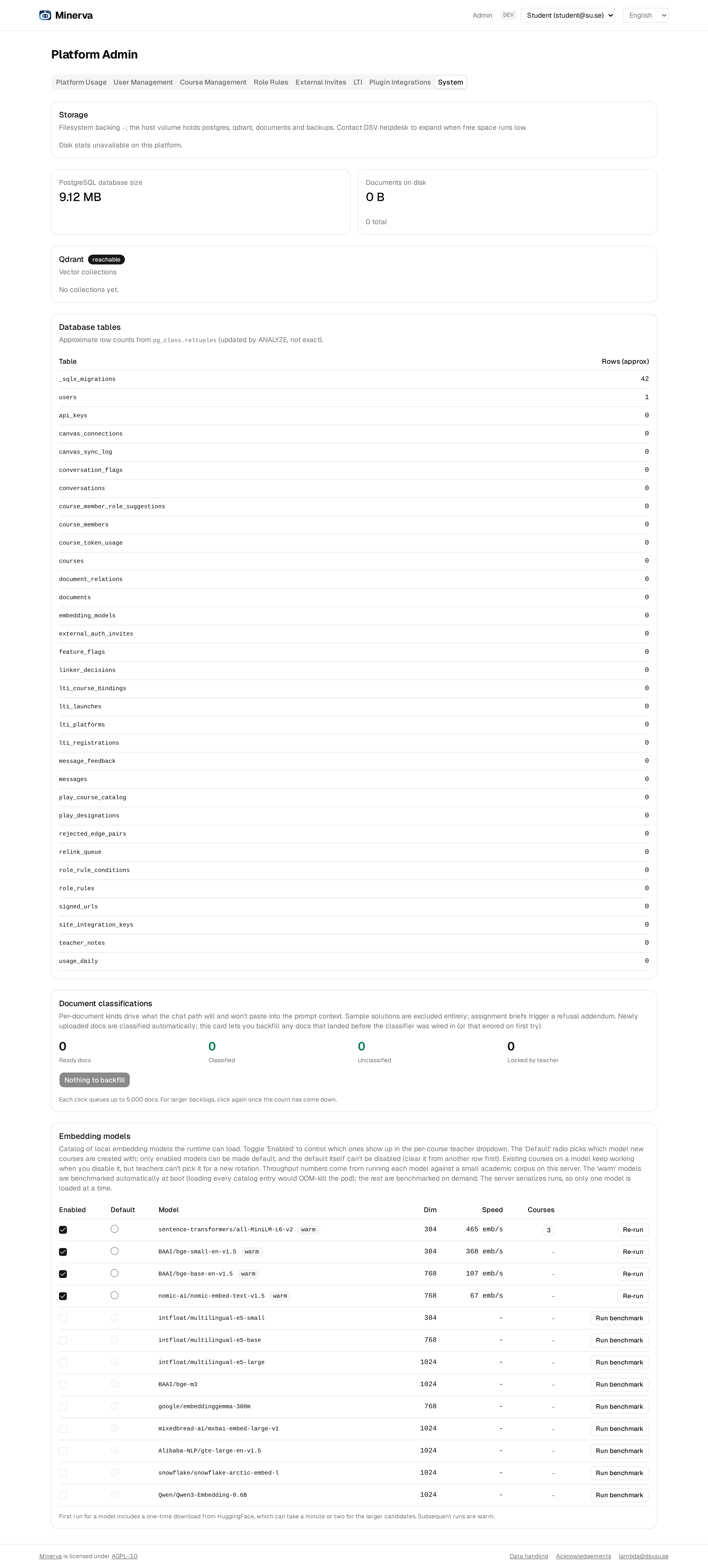

• Pluggable embeddings: admin-managed catalog (Snowflake arctic-embed-m-v2.0 default, BGE, BAAI, GTE, mxbai, EmbeddingGemma, multilingual-e5, Qwen3-Embedding, OpenAI) with memory-budgeted LRU cache and on-demand benchmarks. Per-course rotation via lazy re-embed against versioned Qdrant collections.
• Daily AI spending caps: per-student-per-course and per-owner aggregate, both daily and denominated in USD. Spend is derived on read (tokens x the model's current catalog rate), so a re-price changes enforcement without rewriting the ledger. Chat returns 429 with the optimistic bubble preserved and the real error surfaced.

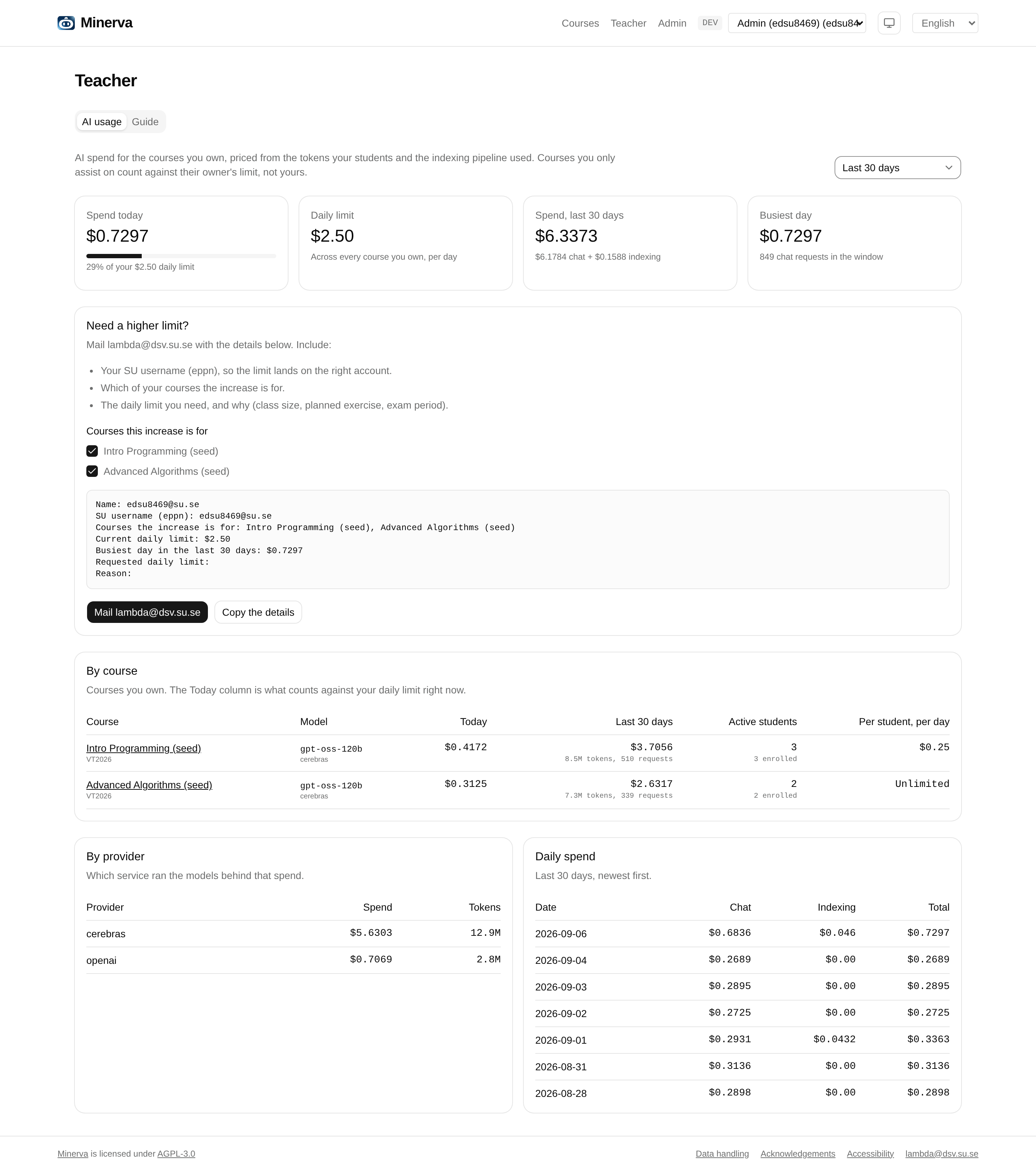

• Teacher portal: a Teacher section beside Admin showing the teacher's own spend against their daily cap: today, a rolling window, per course, per provider and per day, including the ingest / classification spend that has no student behind it. When the cap is too low it drafts the increase request (identity, the courses it covers, current limit, busiest day) for lambda@dsv.su.se. The onboarding guide is its second tab.

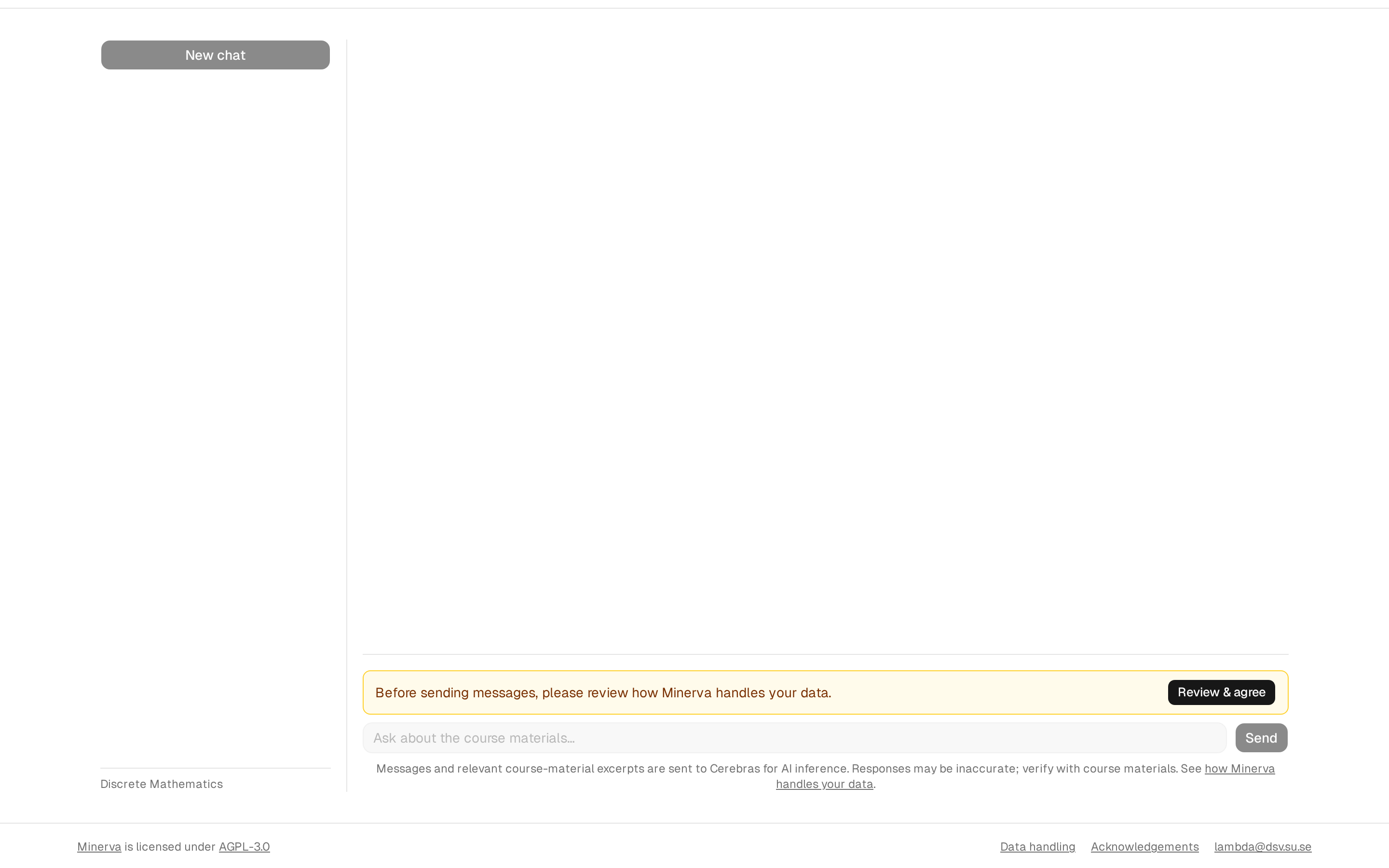

• Conversations UX: theme toggle (light/dark/system) in the header, fresh new-chat as default landing, LLM-grounded suggested questions on the empty state (drawn from the three latest sources), bidirectional unread + explicit acknowledgements, frozen pins for owners, sticky teacher unreviewed-tab list.
• LMS integration: Moodle local plugin (iframe + enrolment sync + MBZ import), site-level Moodle/Canvas LTI 1.3 with first-launch course binding, Canvas REST sync.
• DSV Play transcript pipeline: hourly VTT fetch + index for play.dsv.su.se URLs; teacher-configurable Play designation codes drive automatic discovery of new lecture recordings.

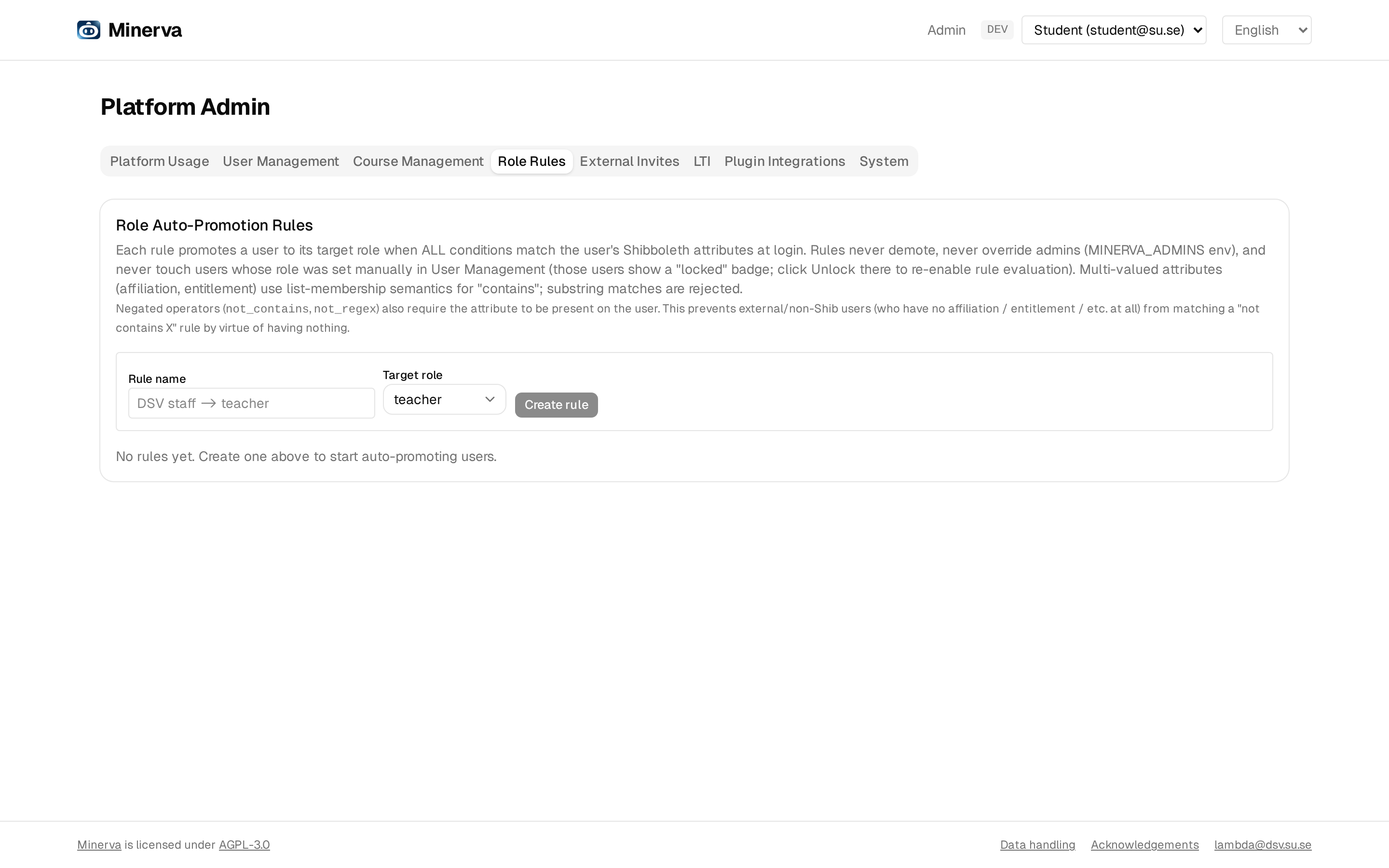

• Auth: Shibboleth (SAML) primary; HMAC-signed external-auth invites validated entirely inside Apache via mod_lua; attribute-based role auto-promotion rules.
• Privacy & i18n: pseudonymisation for ext: users, in-app data-handling ack, English + Swedish, WCAG 2.1 AA fixes.

Architecture

Detail figures for the document-ingest and chat/RAG pipelines (including the FLARE multi-turn loop): docs/ARCHITECTURE.md.

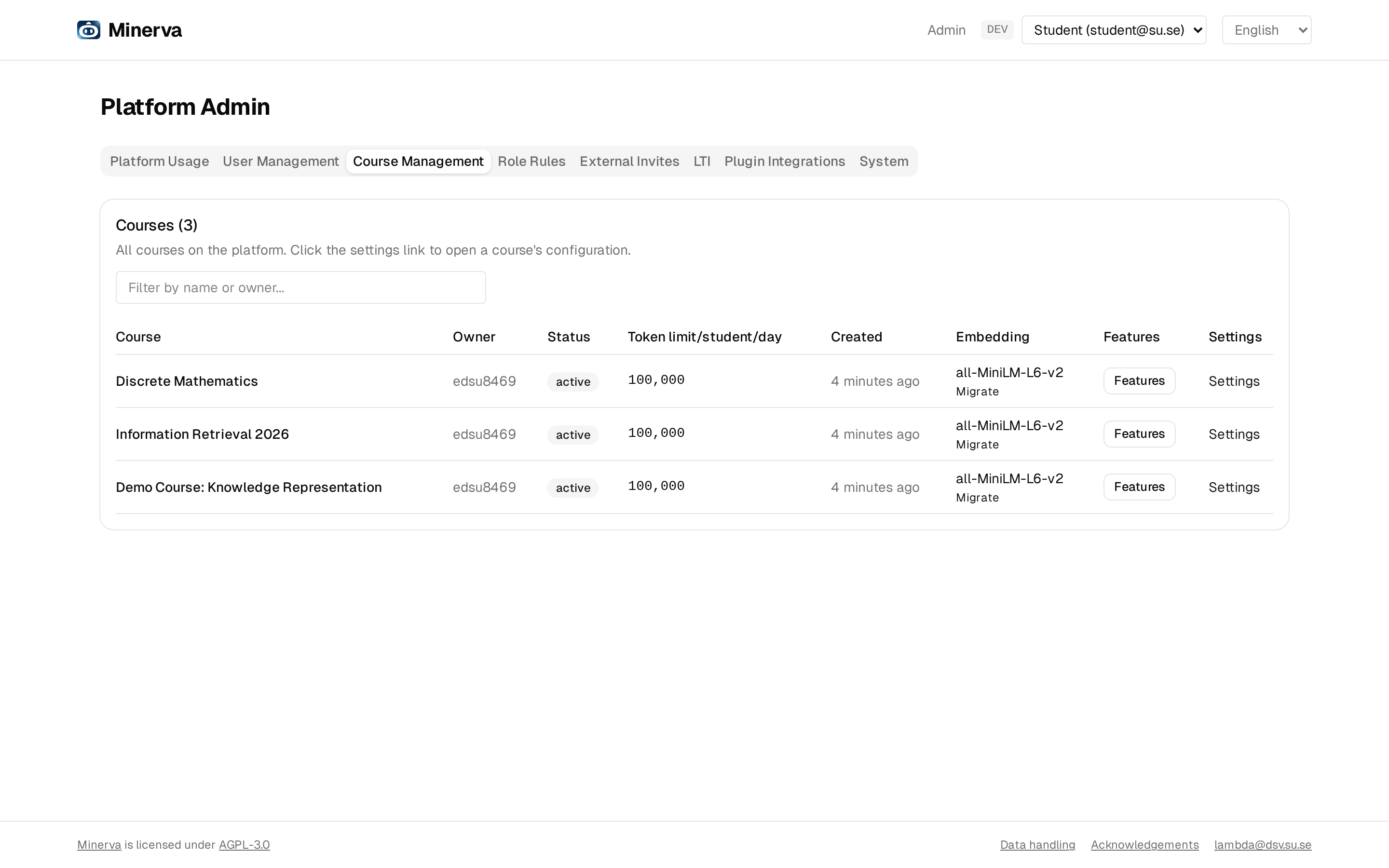

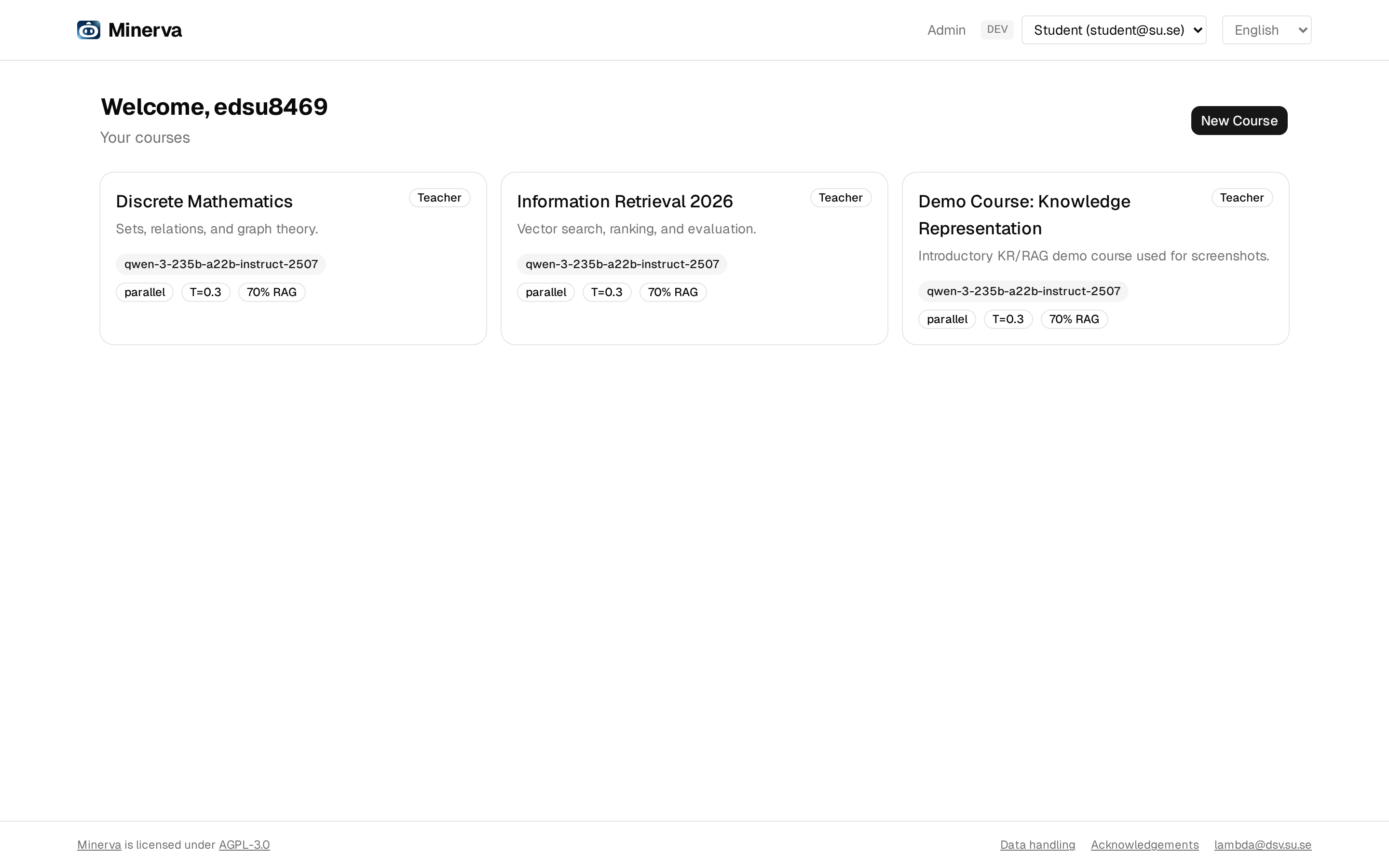

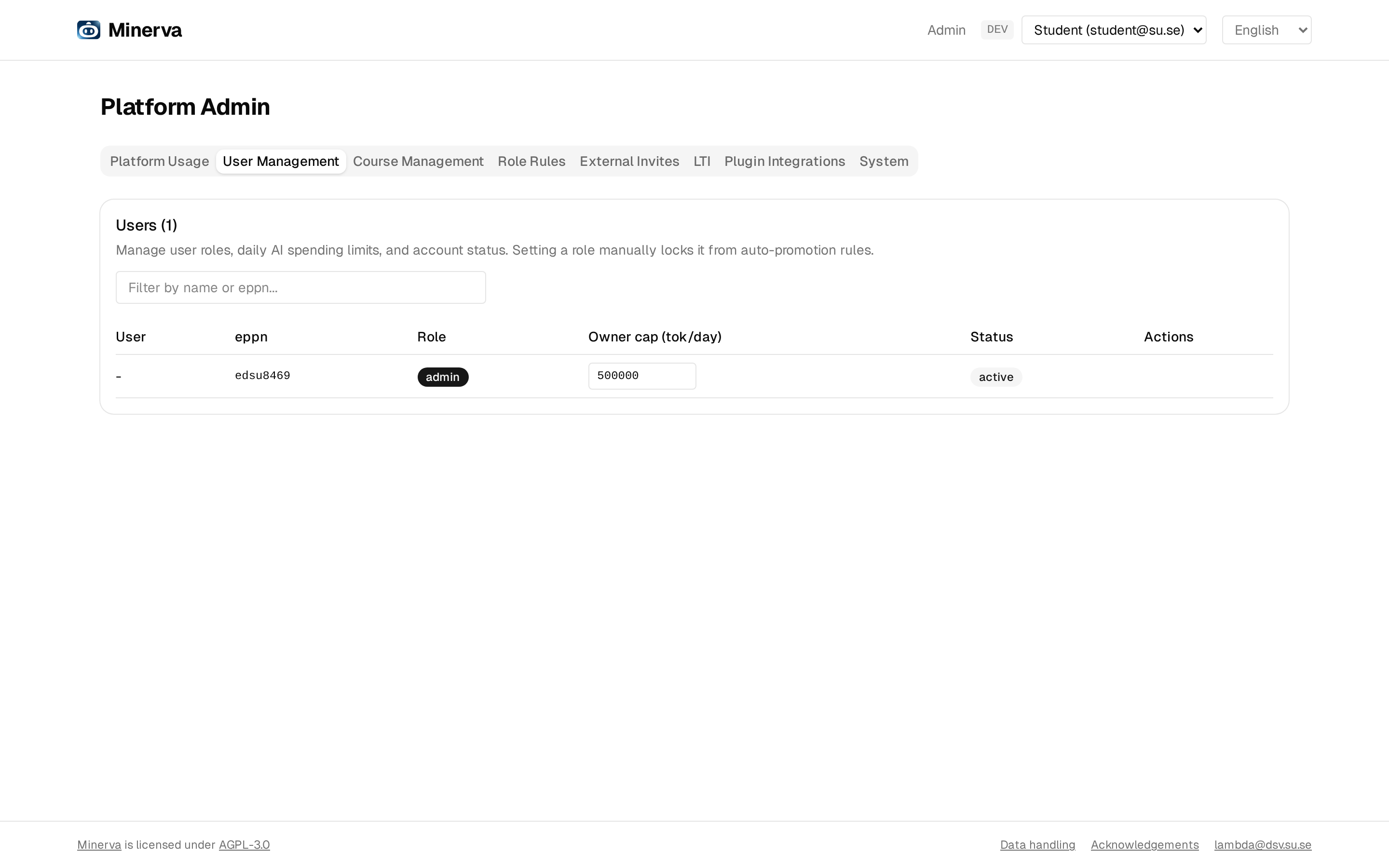

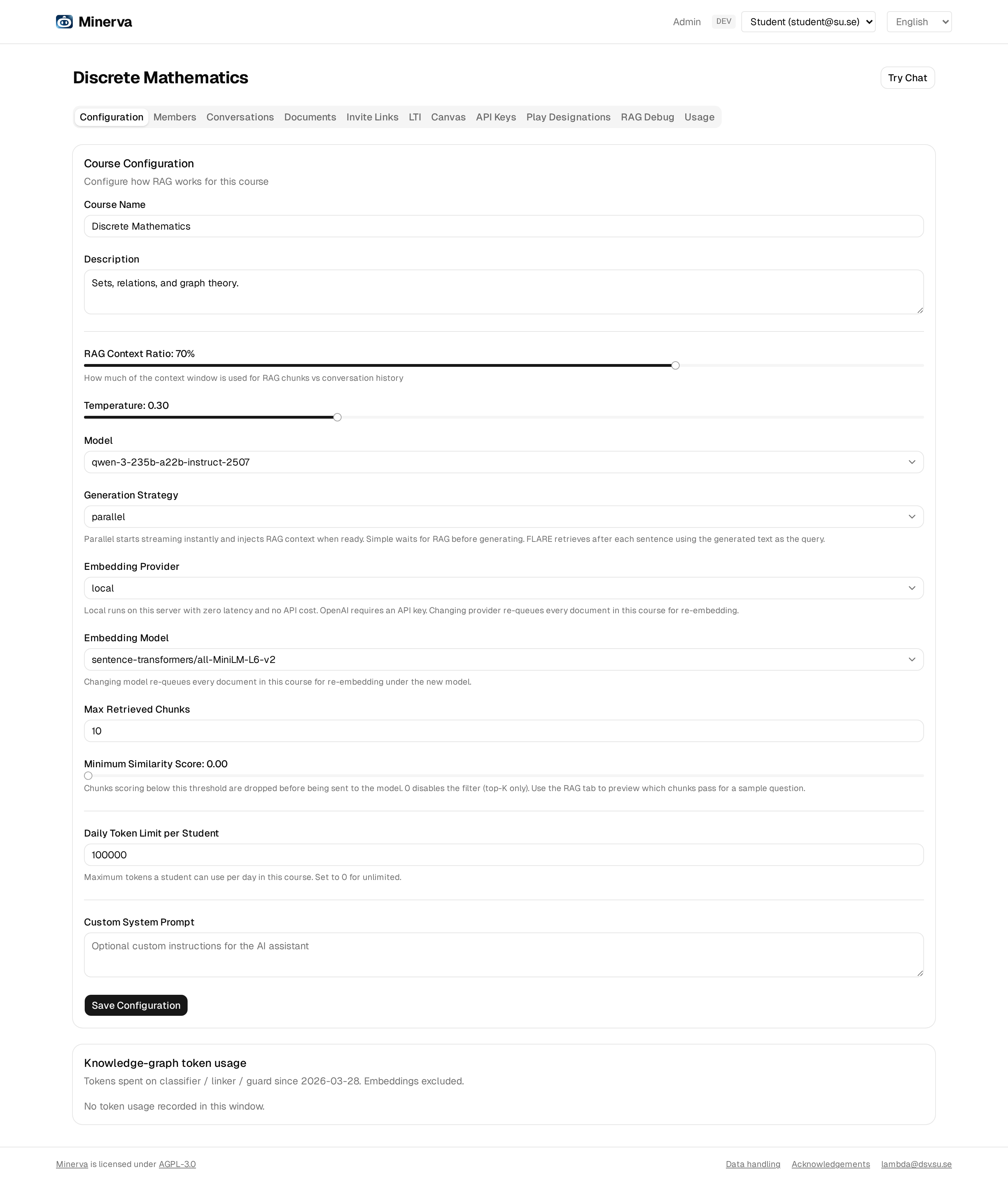

Screenshots

Regenerate with docs/screenshots/regenerate.mjs (see docs/screenshots/README.md).

Tech stack

Getting started

cp .env.example .env  # add CEREBRAS_API_KEY, OPENAI_API_KEY
docker compose up

Backend on :3000, frontend dev on :5173. With MINERVA_DEV_MODE=true (compose default) Shibboleth is bypassed; the backend reads X-Dev-User and falls back to the first admin in MINERVA_ADMINS.

Production:

docker compose -f docker-compose.prod.yml up -d
# or
docker pull ghcr.io/edwinexd/minerva:master

For the k3s production layout used at DSV, see k8s/.

Environment variables

See .env.example for the rest.

Auth surfaces

See apache/README.md for the vhost.

Accessibility

Per DSV-IT policy, new sites must meet the accessibility law; Minerva targets WCAG 2.2 level AA. Compliance is enforced automatically (pre-commit + CI), not just reviewed by hand, across three layers:

The first two layers run per commit. The third needs a built SPA, a running backend and a real browser, so it is enforced in CI rather than in a hook. Run it locally with scripts/a11y-pa11y.sh when you touch layout, scroll containers or colours: it builds the SPA and the server itself and drives Chromium over every audited page against a scratch database on a free port, so it never disturbs a running dev stack.

Modal dialogs use the native <dialog> element with showModal(), so focus trapping, Escape-to-close, top-layer rendering and the ::backdrop come from the platform rather than hand-rolled code. Details and local commands (npm run test:run, npm run pa11y) live in frontend/README.md.

Contributing

CLA in CLA.md. CI runs:

• Backend: cargo fmt, cargo clippy --all-targets (warnings treated as errors), cargo build (all with SQLX_OFFLINE=true).
• Frontend: eslint --max-warnings 0 (incl. jsx-a11y strict), tsc -b, tsc -p tsconfig.test.json, vitest run (axe-core component checks), vite build, plus a pa11y-ci job that audits the built app in a real browser. See Accessibility.
• Moodle plugin: php -l + phpcs against moodlehq/moodle-cs.
• Apache: lua syntax + unit tests + apache2ctl configtest for apache/minerva-app.conf.
• Style gates: ban emdashes + ban space-dash-dash-space anywhere a non-whitespace char precedes them on the line.
• Migrations: migrations-immutable blocks edits to already-committed backend/migrations/*.sql files (sqlx content-hashes them at startup).

Pre-commit mirrors the same set except the pa11y browser pass, which is too slow for a hook; install with pre-commit install (the hook is wired via pipx install pre-commit).

After editing any sqlx::query! / query_as! macro:

docker compose up -d postgres
cd backend && DATABASE_URL=postgres://minerva:minerva@localhost:5432/minerva \
    cargo sqlx prepare --workspace
git add .sqlx/

The committed backend/.sqlx/ cache is what CI and the prod Dockerfile build against; forgetting this step fails locally in the pre-commit cargo check/clippy gate.

License

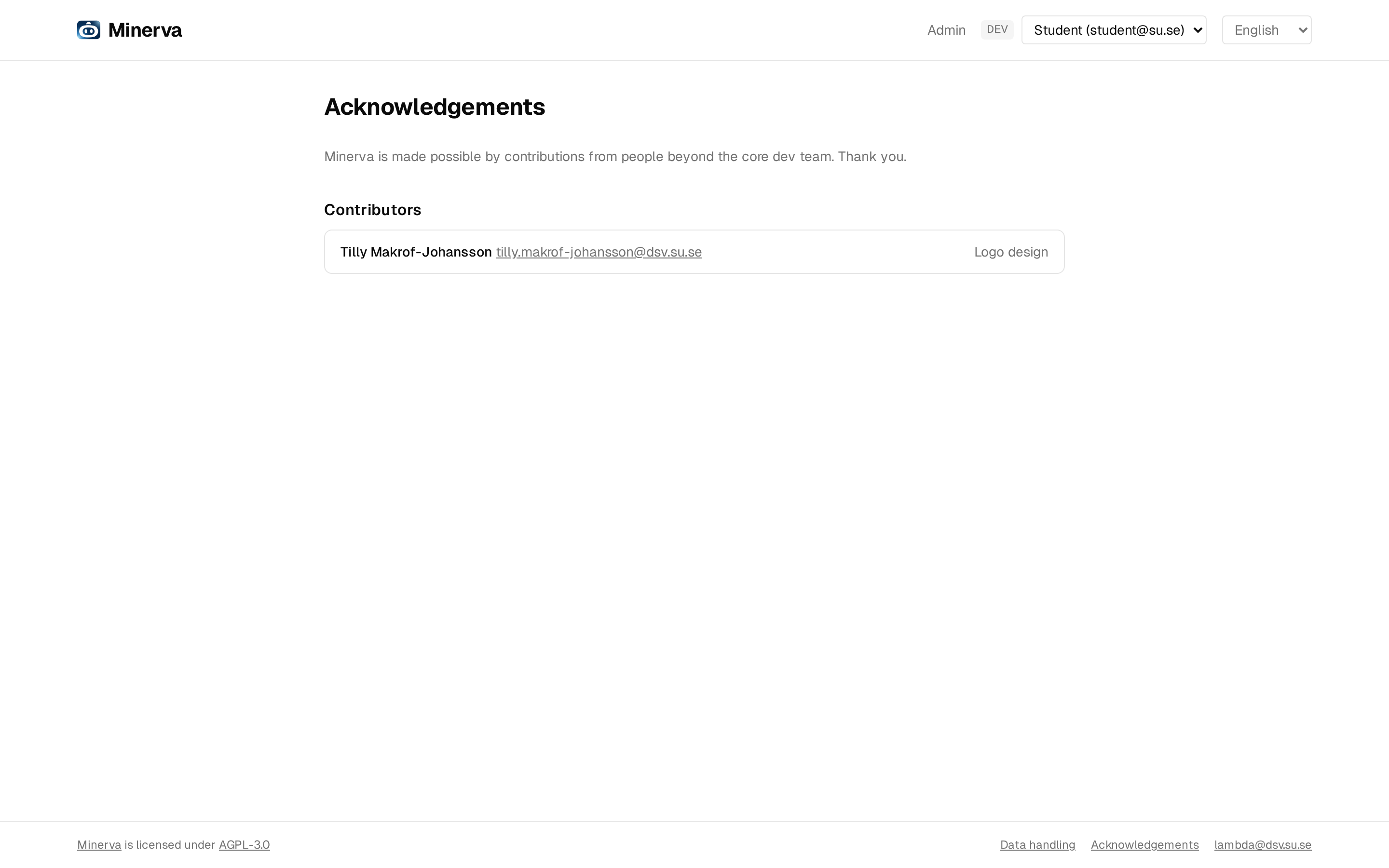

AGPL-3.0. Logo by Tilly Makrof-Johansson.
