StealthChanger

Tool changing system for Vorons and other front mount printer motion systems.



🌐 Official Website

StealthChanger now has an official website!

👉 https://stealthchanger.com

Introduction

Unlike the name suggests we support more then just stealthburner.

Due to difficulties with heat insert and aligning of bearings and mounts we wanted to try a more simplistic design based on bushings and pins.

This is a very light design, requiring less parts and as such is cheaper and easier to build. Input shaper tests have shown it to be as rigid if not more than current Tapchanger.

All parts are easily replaceable without reprinting if wear happens, life of the bushings and pins are still being tested.

Tool compatability

Currently we support the standard Stealth Burner, Dragon Burner, Rapid Burner, Yavoth, AntHead, A4T, XOL, Jabberwocky and Archetype BlackBird. There is also a usermod for the Mini Stealth Burner.

V1.1 Release

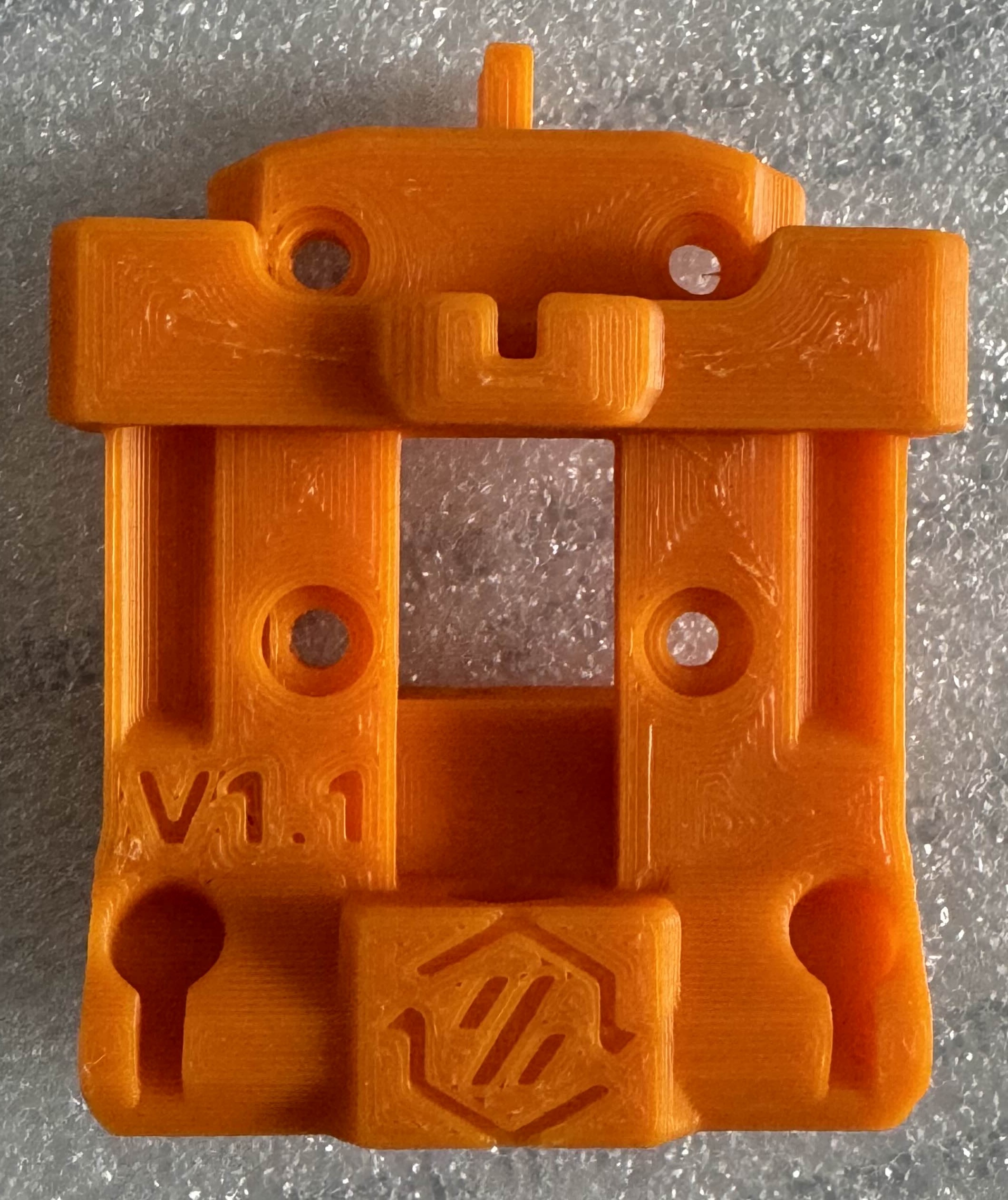

The original StealthChanger shuttle and backplates have been updated to V1.1, this update is to improve rigidity and probe accuracy. To help identify the version, "V1.1" has been clearly marked on all shuttles and backplates. please note, V1.1 is NOT compatible with previous versions. Updated documentation will follow shorly.

Documentation and Info

Please use our wiki for more information and documentation.

• Bill of Materials
• Docks
• Printing
• Assembling
• Installation
• Configuration
• Calibration
• Slicers
• Serials
• Support and FAQs
• Contributing & Donating
• Team & Credits
• Vendors & Kits

Preview

Explaination Video featuring GMBridge

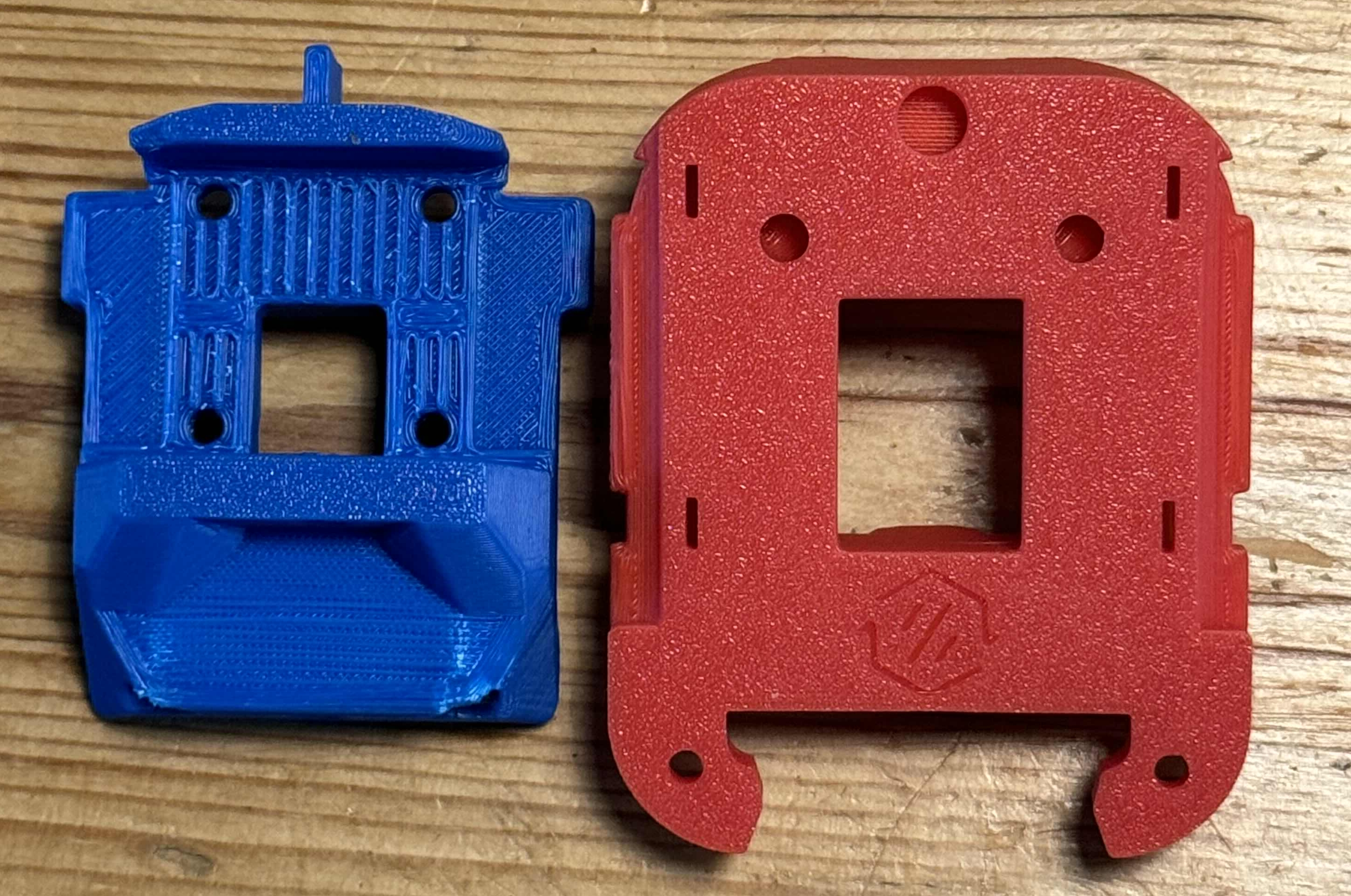

Printed Parts (Dragonburner) by BT123

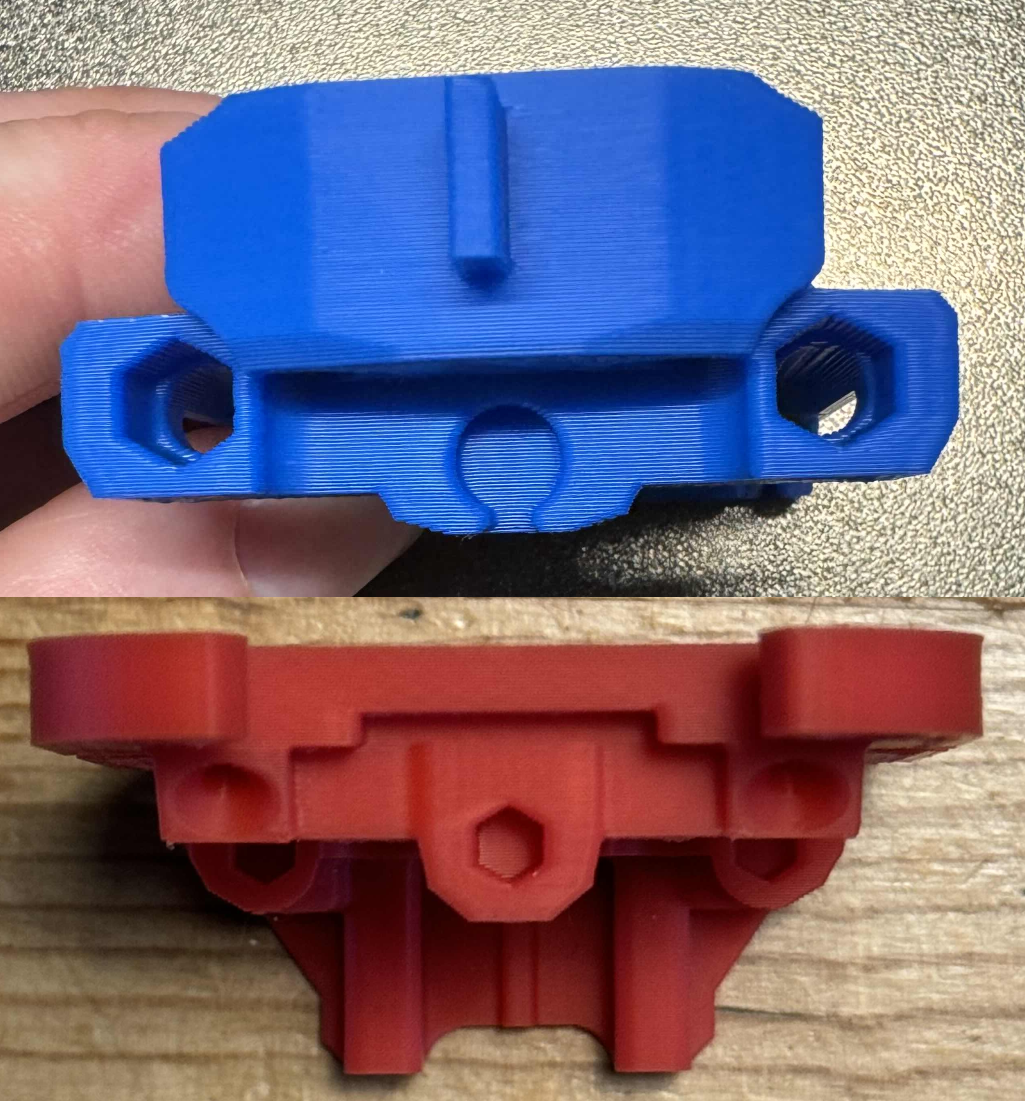

Important! - Check for clear Hex's (Dragonburner) by BT123

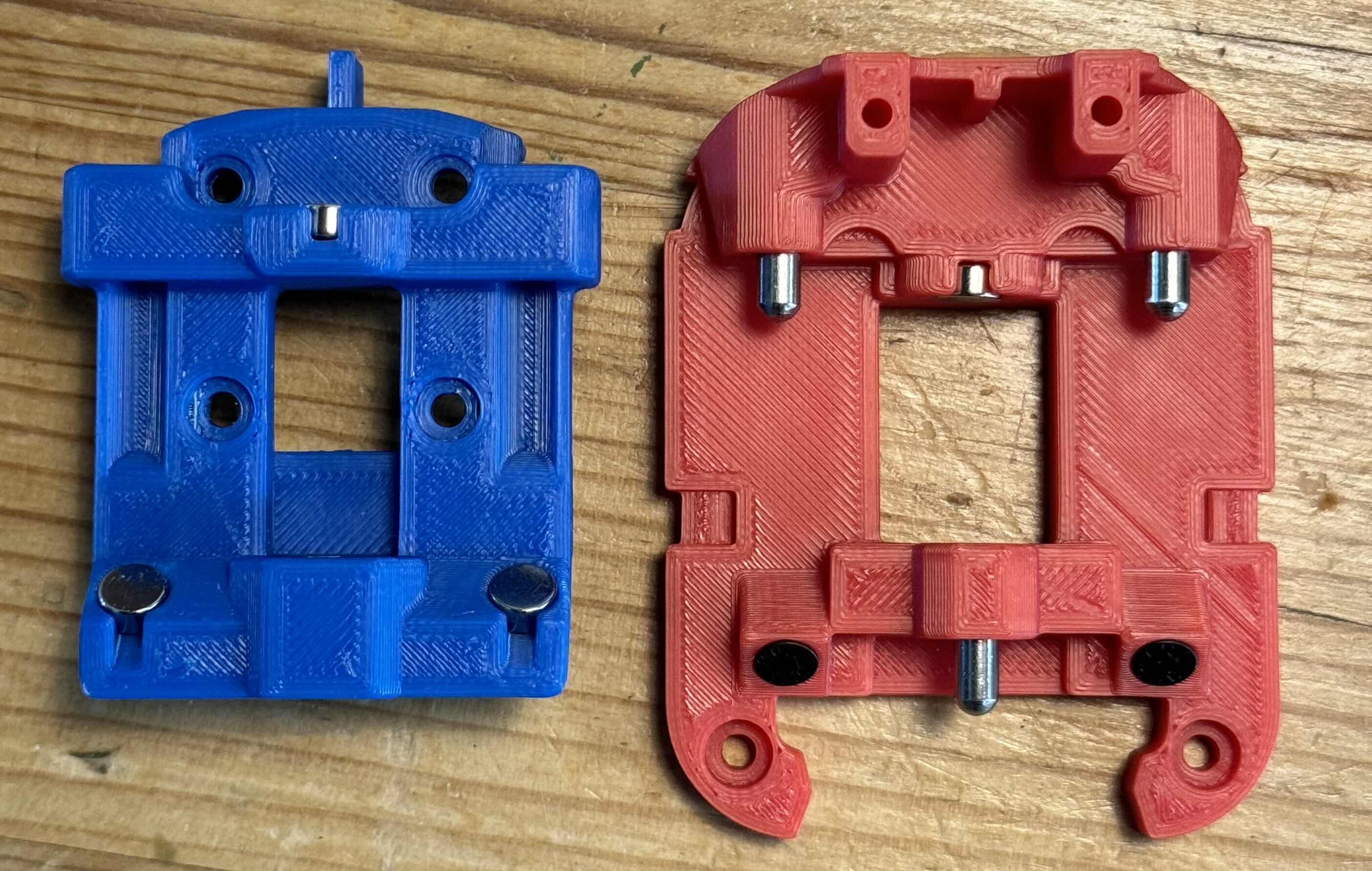

Assembled Shuttle and Backplate by BT123

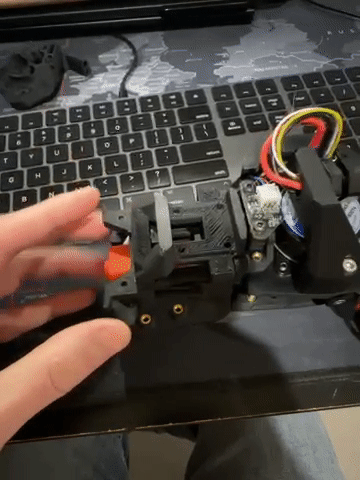

Motion (Stealthburner) by TheSin-

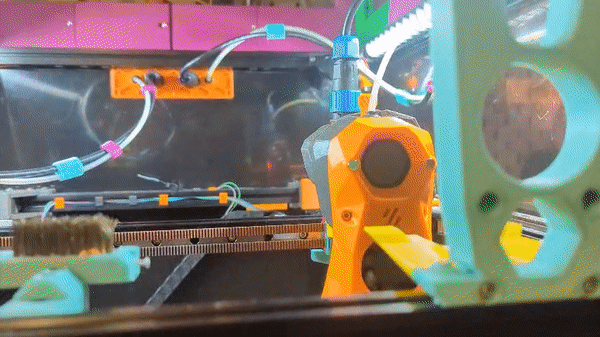

Docking (Stealthburner) by fiferboy

Originally based on Viesturz's Tapchanger
