ILCE-7M4-RE

RE notes for ILCE-7M4, aka Sony A7 IV mirrorless camera

Fun Facts

• There is a "secret" serial boot mode, in the bootrom.

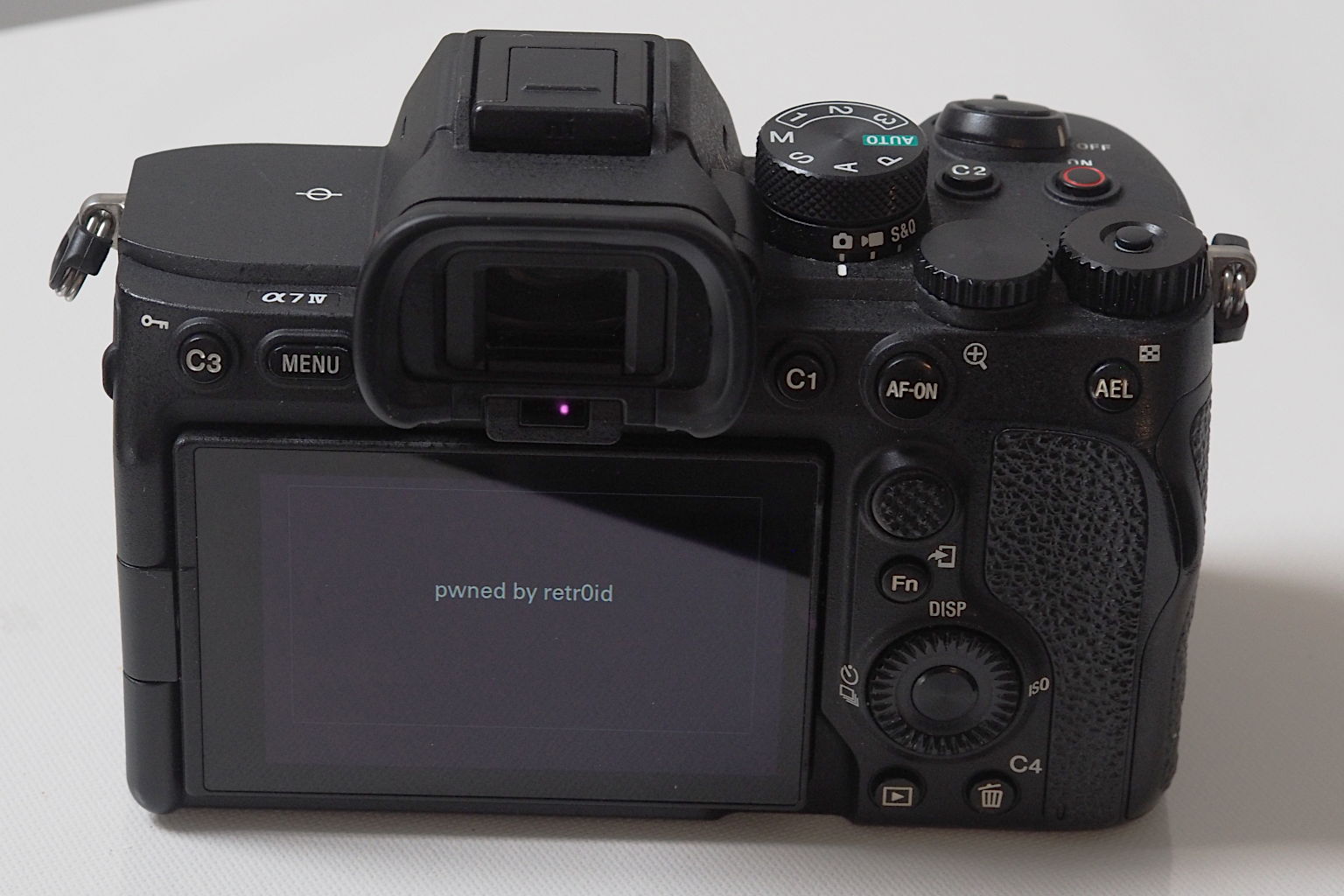

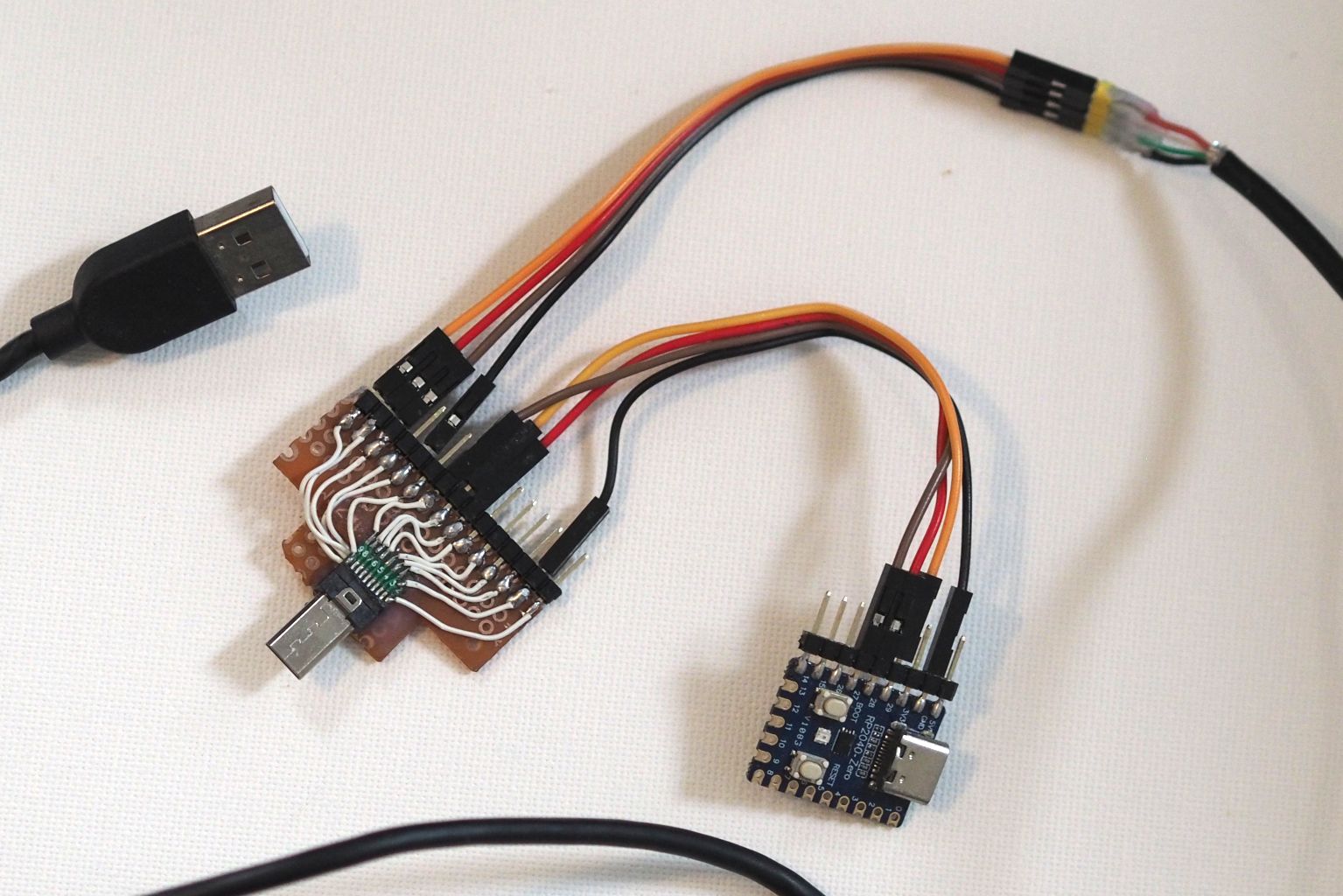

• You can reach the serial bootloader by blasting the right bits down the RX pin of the accessory connector, shortly after reset (see tools/uart_boot).
• I've produced a bare-metal fastboot-compatible boot payload, which can be used to back up and restore eMMC partitions over USB (see payloads/fastboot).
• The eMMC partitions are encrypted with AES-XTS, but there is no signature verification.
• I have all the encryption keys - see scripts/parse_emmc_boot0.py, scripts/parse_emmc_partitions.py.
• The fastboot dump/flash commands handle the crypto transparently (except for boot0, not yet implemented).

Chip ID

Memory Map (Main AP)

Linux /proc/iomem:

dffe0000-dffeffff : MEM
  dffe0000-dffeffff : 0000:00:00.0
f1000000-f1000fff : /soc/serial@f1000000
  f1000000-f1000fff : /soc/serial@f1000000
f1001000-f1001fff : /soc/serial@f1001000
  f1001000-f1001fff : /soc/serial@f1001000
f1002000-f1002fff : /soc/serial@f1002000
  f1002000-f1002fff : /soc/serial@f1002000
f1003000-f1003fff : /soc/serial@f1003000
  f1003000-f1003fff : /soc/serial@f1003000
f1004000-f1004fff : /soc/serial@f1004000
  f1004000-f1004fff : /soc/serial@f1004000
f1012000-f1012fff : /soc/i2c0
f1013000-f1013fff : /soc/i2c1
f1017000-f1017fff : /soc/spi0@F1017000
  f1017000-f1017fff : ssp-pl022
f1018000-f1018fff : /soc/spi1@F1018000
  f1018000-f1018fff : ssp-pl022
f1019000-f1019fff : /soc/spi2@F1019000
  f1019000-f1019fff : ssp-pl022
f101a000-f101afff : /soc/spi3@F101A000
  f101a000-f101afff : ssp-pl022
f101b000-f101bfff : /soc/spi4@F101B000
  f101b000-f101bfff : ssp-pl022
f1057000-f1057fff : /soc/mdma@F1057000
f10cc100-f10d0fff : /soc/usbs/usb@0
f11c0000-f11fffff : phy_reg
f7000000-f737ffff : ctrlreg
400000000-4ffffffff : System RAM
  400080000-40067ffff : Kernel code
  4006d0000-400783fff : Kernel data

Things not labeled in iomem (see also drivers/udif/mach-cxd900xx/platform.c, drivers/udif/mach-cxd900xx/include/mach/platform.h)

start        end          description
0_f10d_6000  0_f10e_0fff  eMMC/MMC
0_f138_8000  0_????_????  SCU / syscon
0_f7fc_0000  0_????_????  SPACC (crypto engine)
0_fe00_0000  0_feff_ffff  eSRAM
0_ffff_0000  0_ffff_bfff  BootROM (key scrambling table is at ffff_b800)
