NSPanel Custom with HA Blueprint

This innovative solution is designed to revolutionize how you interact with your Sonoff NSPanel. Our goal? To make the customization of your NSPanel seamless, intuitive, and completely code-free!

Are you happy with our version for NSPanel? Please consider supporting us with a donation.

Framework Support Notice

ℹ️ As of v4.3.22, this project uses ESP-IDF framework only.

New users: No action needed - the project defaults to ESP-IDF automatically.
Existing users: If you have Arduino framework configured, see our migration guide.

Table of Contents

1. Project Highlights
2. Documentation & Resources
3. Features
4. Pages Overview
5. Contributing
6. Community & Support
7. Acknowledgements
8. Donations

🌟 Project Highlights

• No Coding Required: Customize your NSPanel without touching a single line of code. It's all about intuitive, user-friendly experiences!
• Quick Setup: Get your NSPanel up and running in minutes with our easy-to-follow graphical interface.
• Local Control: Embrace full local control of your NSPanel, steering clear of cloud dependencies.
• Community-Driven: A project for the users, by the users. Your contributions shape the future of this project!

📚 Documentation & Resources

• Getting Started: Dive into our comprehensive Documentation and Setup Guide for detailed instructions.
• Video Tutorial: Prefer visual learning? Check out our Step-by-Step Setup Video.
• Troubleshooting: Encounter an issue? Here's how to report it: WIKI HowTo.
• Feature Requests: Got ideas? Share them here.
• What's Next?: Discover what's next and what we are working on right now in our Milestones

🚀 Features

• Easy to use and simple configuration via Blueprint - no change in the code is necessary
• 32 buttons on 4 button pages with long press function for settings (more buttons are also possible)
• Button design is automatically generated based on the selected entity
• Buttons show current brightness and cover position in the button itself
• Buttons label can be assigned via blueprint
• Weather + 5 days weather forecast
• Thermostat + Touch + Relay control for floor heating
• Light control (brightness, color and temperature) - via long Press
• Cover control (open, close and position) - via long press
• Settings page (display brightness, display dim brightness, sleep mode, reboot NSPanel)
• Swipe between pages
• Top menu with 10 icons for specific states
• Heating control (hot water)
• Modern design - design easy to change via Adobe Express (free + design template)
• 2 physical switches with optional fallback mode
• and much more ;)

📖 Pages Overview

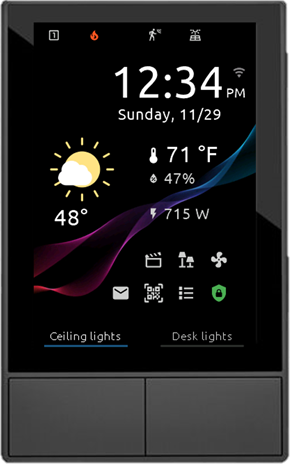

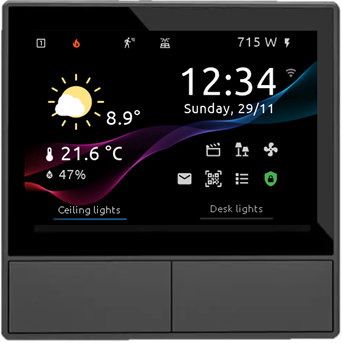

Home

• Current weather with button to Weather Forcast page
• Hardware buttons can be freely assigned
• Hardware button label (optional)
• Blue line indicates the entity's states (on or off)
• Outside temperature
• Status icons at the top
• Room temperature with button to thermostat page
• Room humidity
• Up to 3 user's selectable entities

Buttons Pages

• Up to 8 buttons per page, across 4 different pages, totaling 32 buttons
• Button design is automatically generated based on the selected entity
• Buttons display current brightness and cover position directly on the button
• Button labels can be assigned via blueprint
• All buttons feature a long-press function
• Automatic detection of light, cover, fan, media player, alarm or climate entities for submenus through long press
• Swipe between all pages
• Swipe up and down for quick access to specific pages

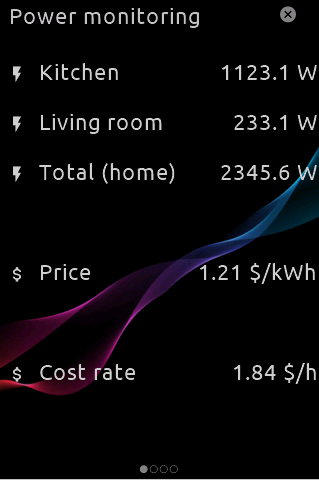

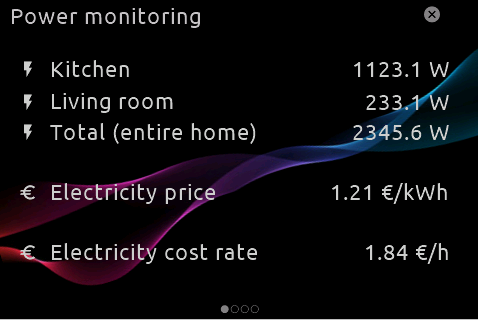

Entities Pages

• Up to 8 entities per page, across 4 different pages, totaling 32 entities
• Icons and labels can be individually configured via blueprint or automatically detected for each entity
• Flexible alignment options for values as per user preference

Light Settings

• Light current state
• Brightness slider
• RGB color wheel
• Color temperature slider
• Jump back to the right button page

Cover Settings

• Open and close cover
• Cover position via slider
• Cover battery value (when available)
• jump back to the right button page

Thermostat / Climate

• Target temperature control slider
• Current temperature
• 4 user's selectable values (for water and external temperatures, etc.)
• All the standard climate controls from Home Assistant (heat, fan, cool, auto, dry)
• 2 user's selectable buttons
• Can be used for local control (even when Wi-Fi is unavailable) when your panel's relays are used to control your cooler/heater

Fan speed

• Turn-on and turn-off fan
• Set speed via slider or buttons
• jump back to the right button page

Alarm

• Arm/disarm an alarm (standard modes supported by Home Assistant)
• Support to numeric pin for arming or disarming

Weather Forecast

• 5 days weather forecast via swipe (supports most used weather integrations)
• Min and max outside temperatures
• Date
• Other weather parameters (when provided by your integration):
  • Rain probability
  • Sunshine hours
  • UV index
  • Thunderstorm probability
  • Wind speed

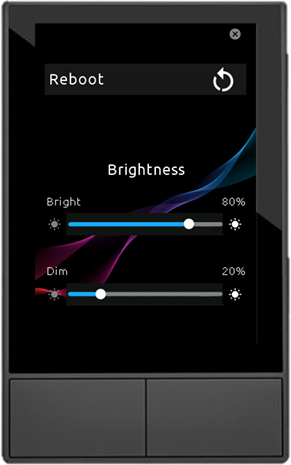

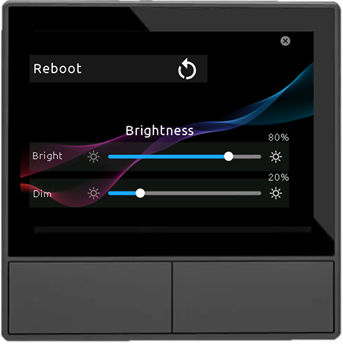

Display Settings

This page is accessible with a long press in the time area on the Home page.

• Restart NSPanel
• Display brightness slider
• Display dim brightness slider

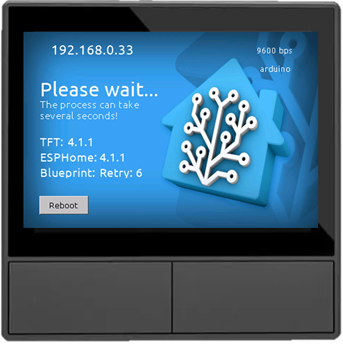

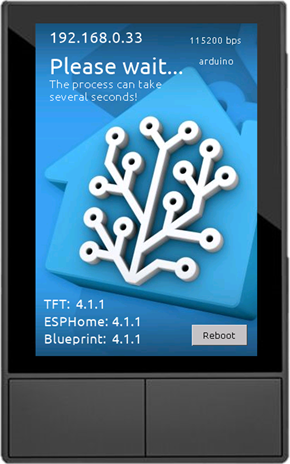

Boot

Home Assistant interface

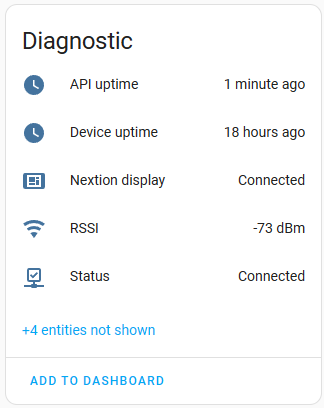

Device's page

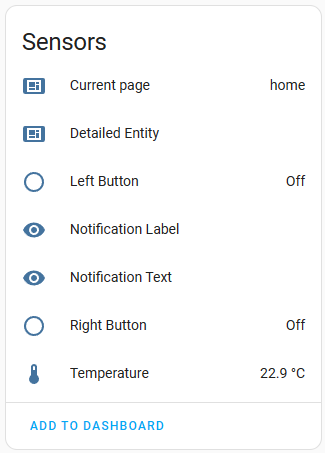

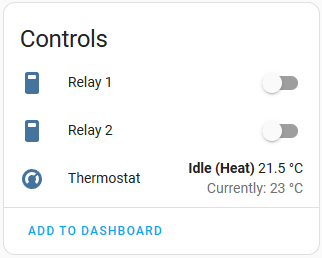

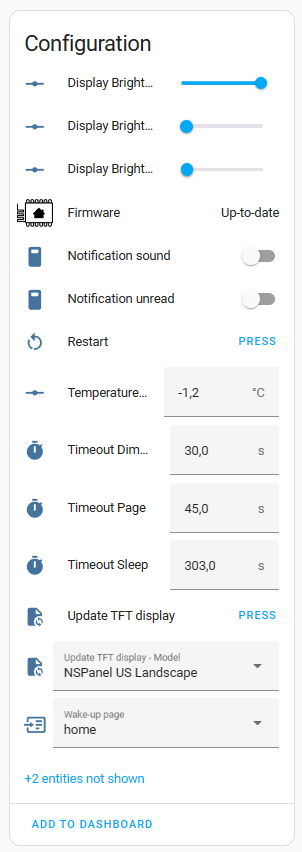

On the device's page under "Devices & Services" you can set the global configuration of your device and see the value of it's sensors and relays:

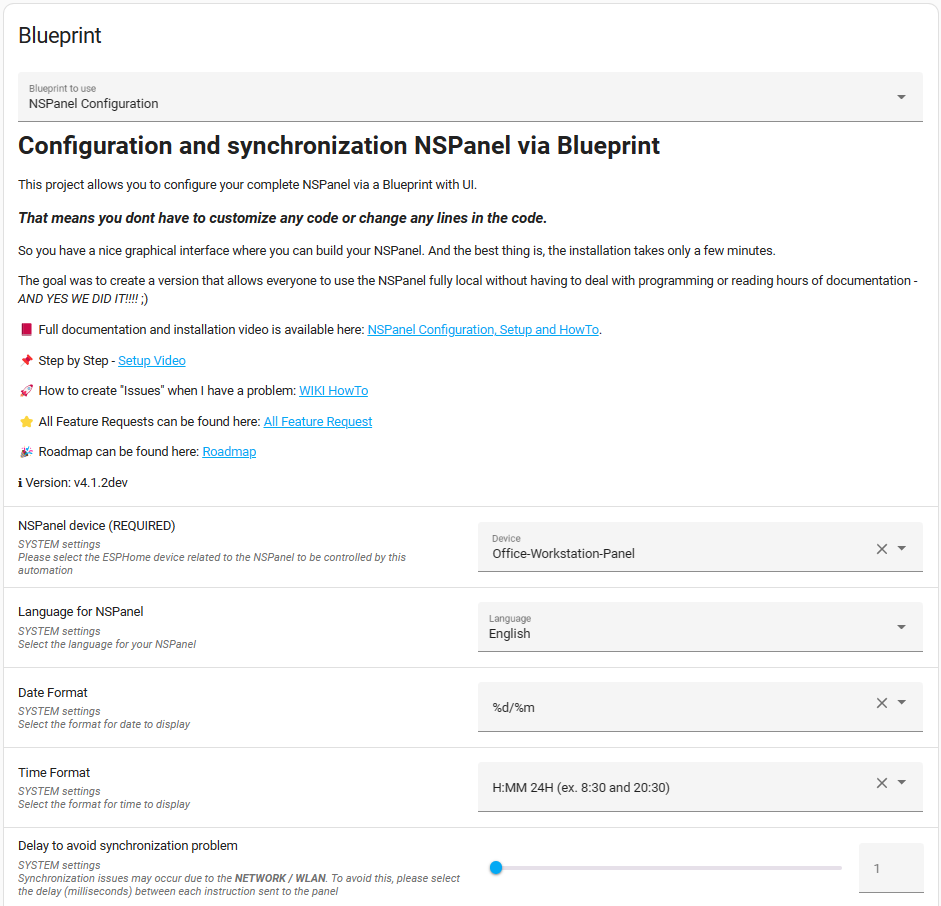

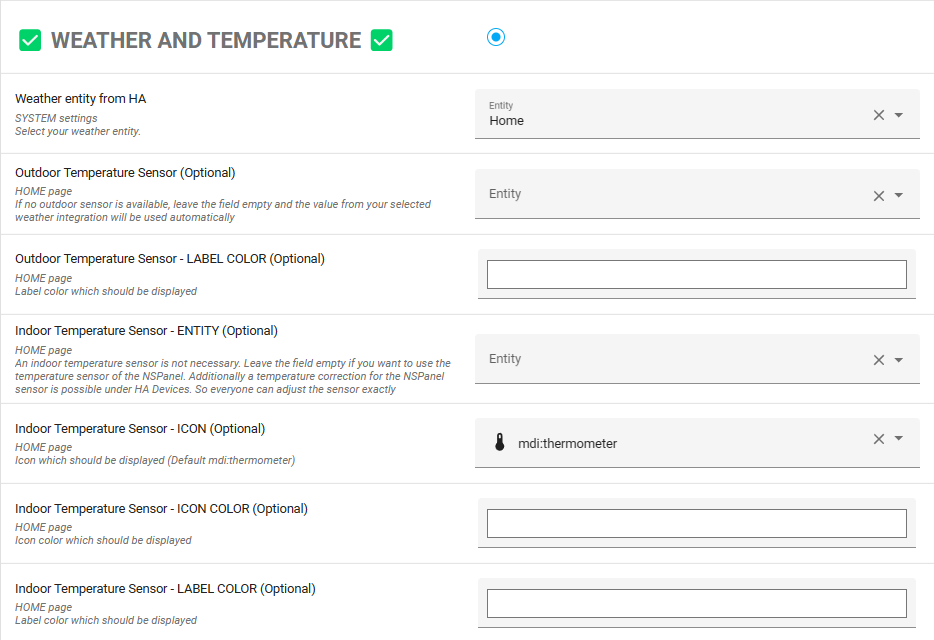

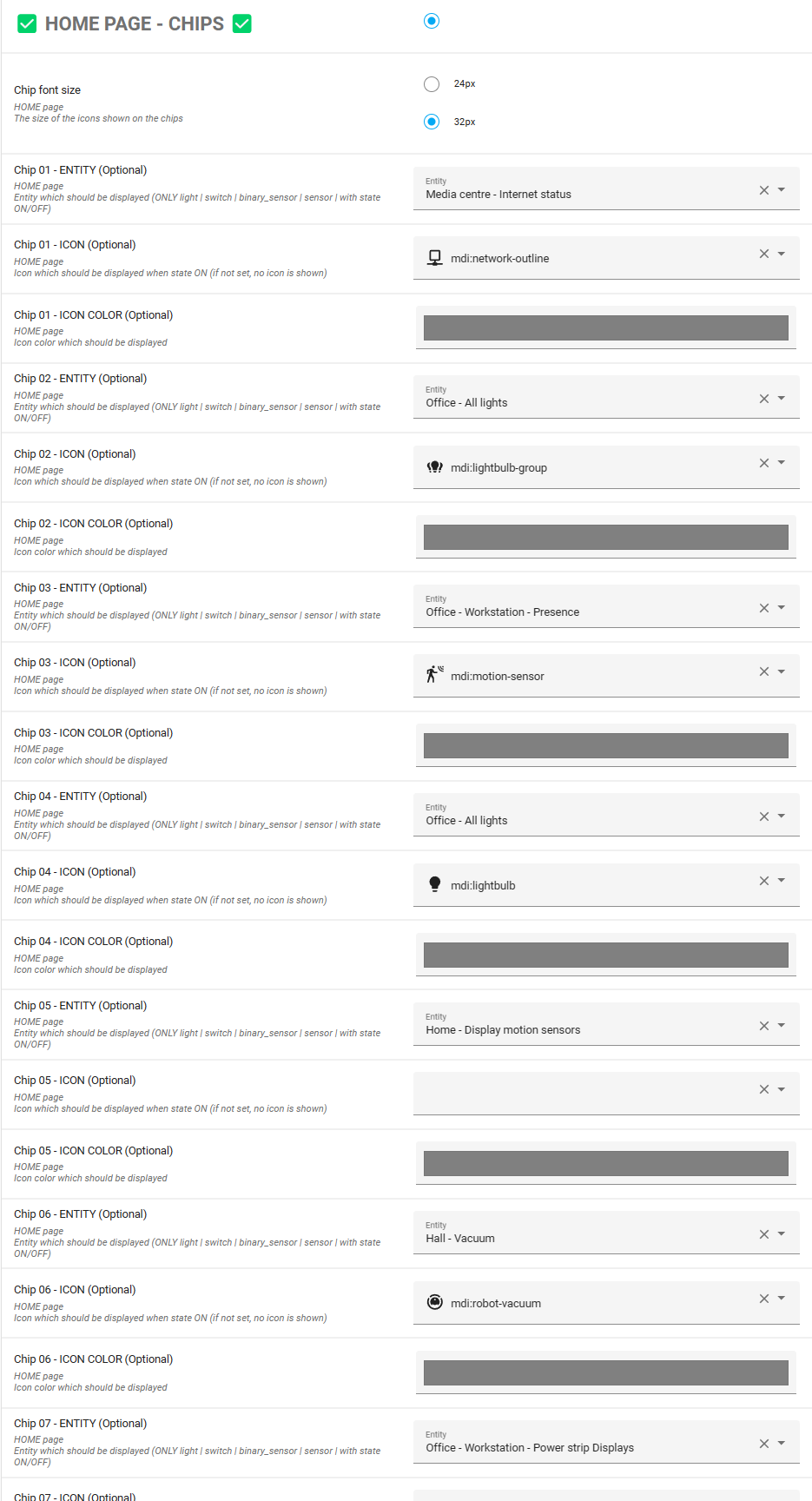

Automation (Blueprint)

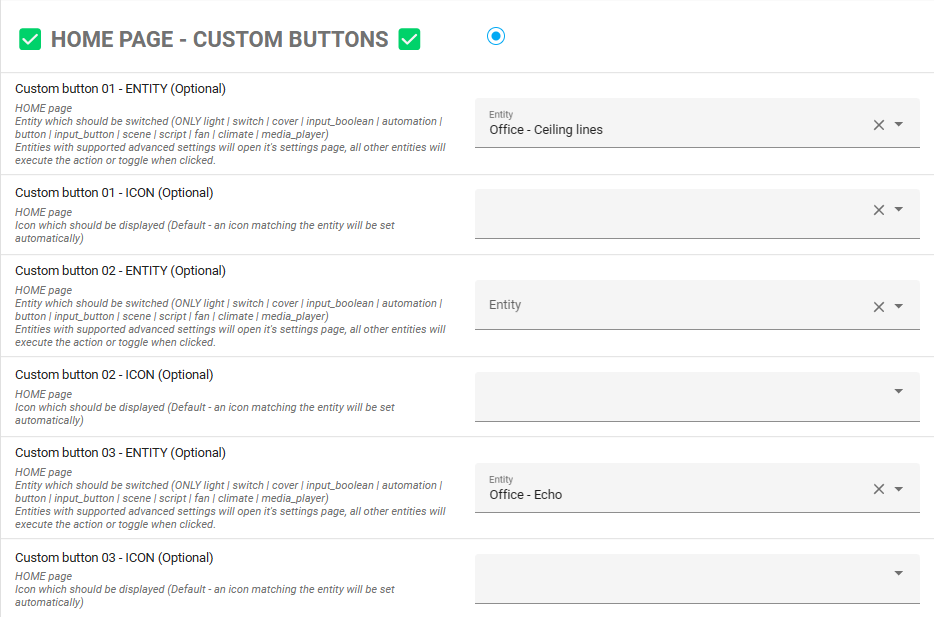

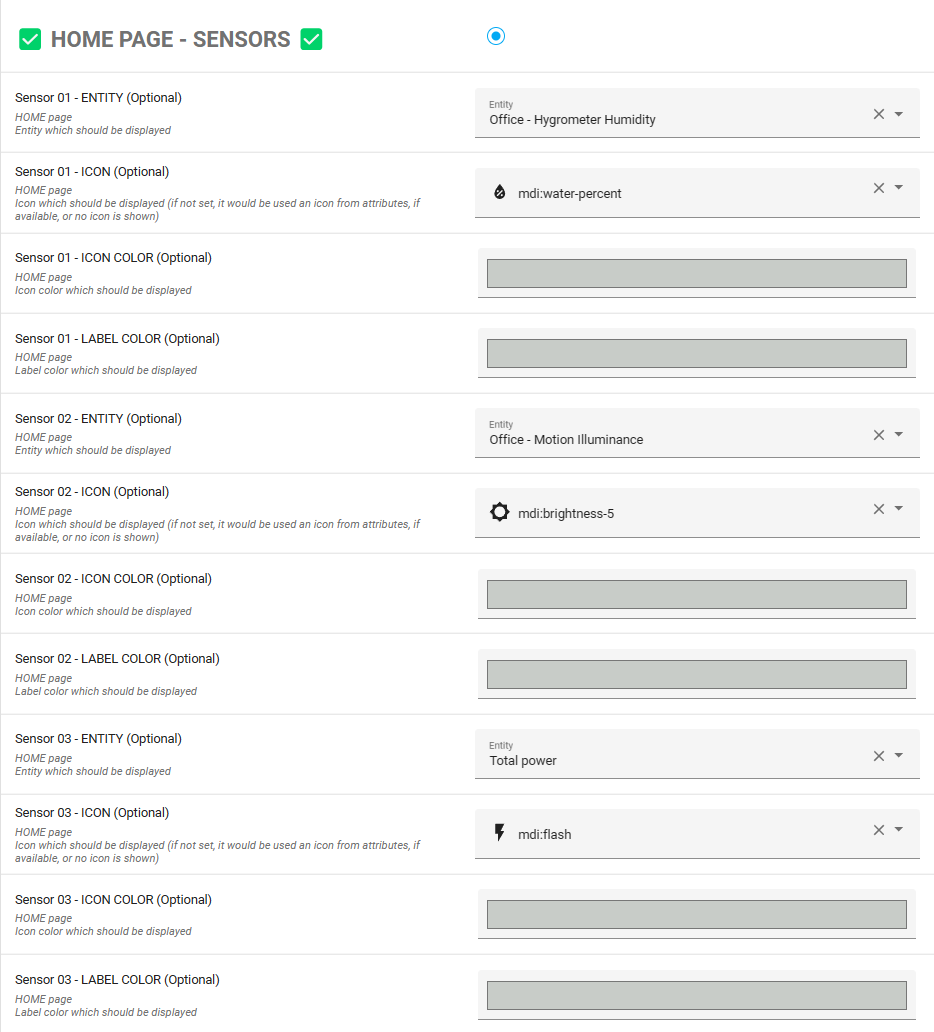

In your automations you use the blueprint's inputs to define what will be shown on your panel and how it should behave:
