ReDetail

Video upscaling and re-detailing for ComfyUI on LTX-2.5: two drag-and-drop workflows, and a CLI that drives them for real clips. The default mode, refine, rebuilds the fine detail a soft clip is missing and keeps the framing, colour, motion and faces as they were. 4K fits on a 32GB card; system RAM is the limit there (see Memory).

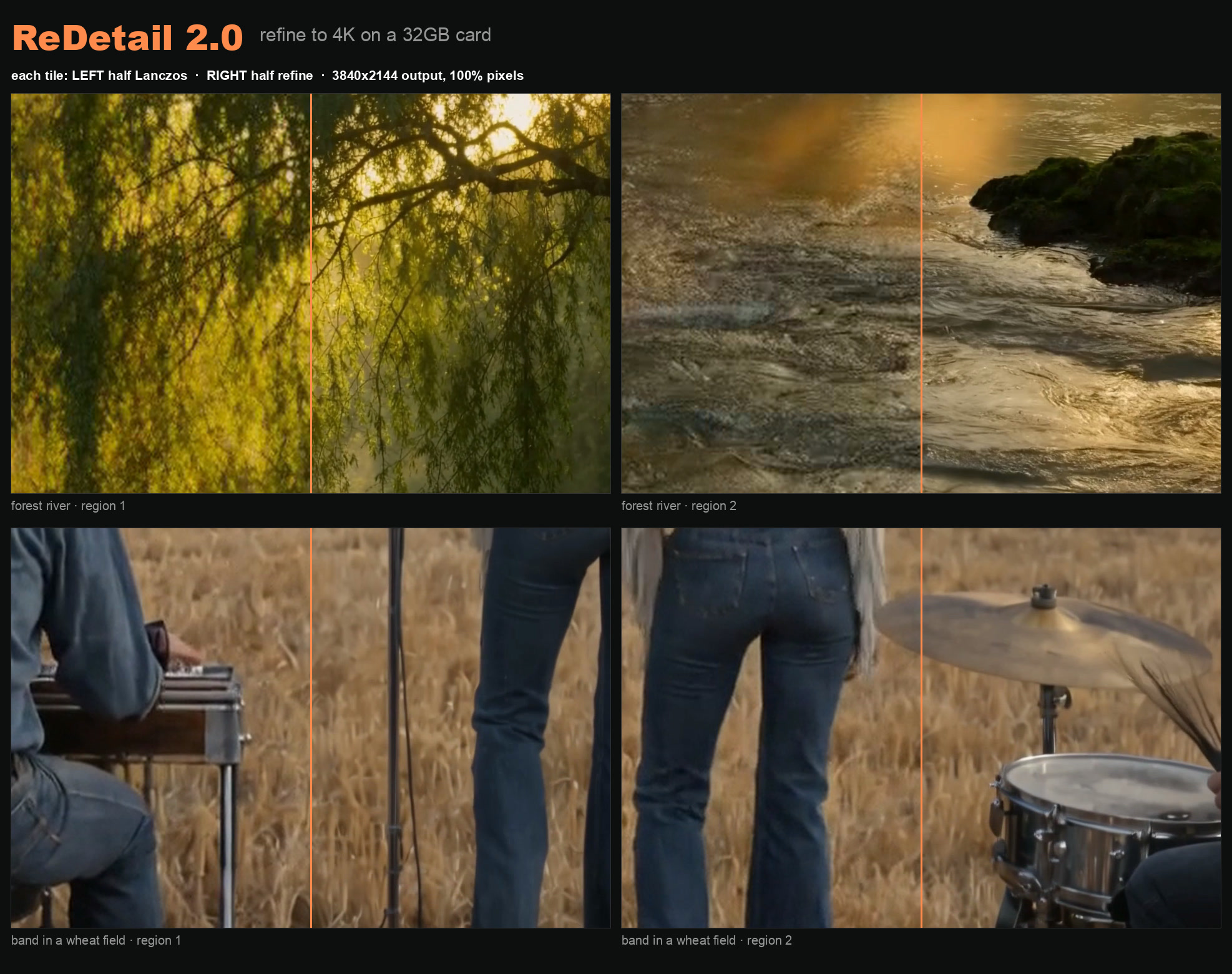

Two generated clips (1376x768 and 1664x928), 97 frames each, refined to 3840x2144 in a single 14-minute pass on an RTX 5090. Every tile is a 100% crop, Lanczos on the left half and refine on the right. The full renders, their sources and a 1:1-pixel comparison reel are on the v2.0 release.

Refine or pixel

Both modes run a Lightricks IC-LoRA on the LTX-2.5 22B distilled transformer. Refine-Details works in 1024x576 tiles fused at every denoising step, so VRAM follows the tile instead of the frame. The Pixel Spatial Upscaler re-renders the whole clip and invents the fine detail as it goes: more detail, and faces drift.

The first three rows are ranges over seven MiniMax H3 clips (640x384, 10 s, upscaled 2x). Fidelity compares the result, scaled back down, with the source. Refine was closer to the source and flickered less on all seven. The time and VRAM rows are single runs, on a 32GB RTX PRO 4500 and an RTX 5090.

Use refine to preserve faces, products or framing, and for anything going to 4K. Use pixel for the most detail on soft AI footage with nothing to preserve; it renders in less than half the time.

What the workflows change from Lightricks' examples. Refine pins the tile to the 1024x576 the LoRA was trained on; the example sizes tiles from your source, and a 768x1376 clip became one tile 1.8x the trained area. Pixel's output size is settable; Lightricks' example links the canvas to the source size, so it renders 1:1 whatever you enter. Both workflows disconnect the prompt-enhancer branches, because ComfyUI validates those branches even when they are switched off and a single missing file blocks the whole queue. Both Missing Models panels point at the int8 files. LICENSE lists every edit.

Quick start

The workflow. Drop workflows/ReDetail_LTX25_refine.json into ComfyUI and read the note marked START HERE. The Missing Models panel links every file it needs. Load your clip, pick output_size on the Preprocess group (FullHD or 4K), and queue.

Before loading a clip into the workflow, make sure it has an audio track and a frame count of 8n+1:

# add a silent audio track (most AI clips have none)
ffmpeg -i in.mp4 -f lavfi -i anullsrc=r=48000:cl=stereo -shortest \
       -map 0:v:0 -map 1:a:0 -c:v copy -c:a aac ok.mp4

# count the frames, then trim to 8n+1 or the model drops the tail
ffprobe -v error -count_frames -select_streams v:0 \
        -show_entries stream=nb_read_frames -of csv=p=0 ok.mp4
ffmpeg -i ok.mp4 -frames:v 97 -c:a copy trimmed.mp4      # 97 = 8*12+1, about 4 s at 24 fps

The CLI. redetail.py drives the same graphs over ComfyUI's HTTP API and does that prep itself:

python3 redetail.py --setup                              # checks the install, names what is missing
python3 redetail.py clip.mp4 --scale 1.5                 # refine
python3 redetail.py clip.mp4 --scale 1.5 --model pixel   # pixel

The CLI calculates the output size for your chosen scale instead of using two presets, adds a silent audio track where needed, keeps each chunk at 8n+1 frames, adds refine's 8-frame tail pad, splits long clips at their scene cuts and restores your original audio. Use it for anything longer than one short pass.

Install

You need Python 3, ffmpeg and ffprobe on PATH, and ComfyUI with ComfyUI-LTXVideo. Refine needs the pack from 24 September 2026 or later, the first with LTXVTiledFusionSampler.

Install the pack's requirements.txt and comfy-kitchen>=0.2.26 into ComfyUI's own Python environment, then restart ComfyUI:

/path/to/ComfyUI/venv/bin/python -m pip install "comfy-kitchen>=0.2.26"

.\python_embeded\python.exe -m pip install "comfy-kitchen>=0.2.26"

If you install them into a different Python environment, both can import fine in a shell while ComfyUI still reports the nodes missing. No module named 'colour' in the boot log means the requirements went to the wrong Python. Packs from 22 September 2026 on run with current kornia; an older pack (pixel mode only) needs kornia==0.7.4.

Models. The Hugging Face repos are gated. Accept the licence on each repository, the base repository included, or the downloads fail with HTTP 403.

int8_convrot is not Blackwell-only: users run it on a 3090, a 4090 and a 1070. If it won't load, check comfy-kitchen before your card. Version 0.2.10, which several ComfyUI images ship, fails on every convrot checkpoint with an error that reads like unsupported weights.

Less VRAM: GGUF. Install ComfyUI-GGUF and put the Q4_K_M transformer from Abiray/LTX-2.5-Distilled-GGUF in models/unet/:

python3 redetail.py clip.mp4 --scale 1.5 --model pixel \
  --gguf LTX-2.5-Distilled-Q4_K_M.gguf \
  --encoder gemma4-12b-with-proj-ltx-2.5-bf16.safetensors \
  --clip-device cpu --budget 150 --decode-tile 256 --decode-temporal 32

On an RTX 4090 that sampled 8 steps in 70 s at 21.8 GB of 24.5 GB peak. Refine takes the same flags: on an RTX 5090, Q4_K_M refine with --cached-cond rendered 17 frames 640x384 to 1280x768 at 48.0 dB PSNR (SSIM 0.991) against the int8 render. Refine on a 24GB card hasn't been measured.

Sizes

Refine needs both output dimensions divisible by 32. It resizes your clip to the canvas itself, so the source can be any size, and --scale lands on the nearest valid size that keeps your aspect:

In the workflow you pick output_size instead: FullHD is a 1920 long edge and 4K a 3840 one, so a 1920x1080 source becomes 3840x2176. Lightricks calls 4K the sweet spot for a 1080p source. Don't go to 8K in one pass. A 1024x576 tile then covers 13% of the frame, twice the scale the LoRA trained at, and it starts inventing texture. Refine to 4K and upscale that with Lanczos.

Pixel needs /64, because its guide is half resolution and split into 2x2 latent patches. Off-grid sizes fail with Error while processing rearrange-reduction pattern.

The bold pixel rows have no exact 1.5x on the /64 grid: 1920x1088's would be 2880x1632, and 1632 isn't /64. Doubling any multiple of 32 gives a multiple of 64, so 2x is usually exact. The CLI also puts a pixel-mode source on the grid, which can crop it by a few percent or resample it. Check the source -> line it prints if your framing is tight.

Memory

Refine. VRAM follows the tile, and the sampler streams long clips in 97-frame windows, so one render can cover a whole shot. On an RTX 5090, 97 frames to 2176x3904 took one 14-minute pass at 28.4 GB of VRAM.

System RAM is what runs out. ComfyUI keeps the weights staged in RAM (about 22 GB) and holds both the resized clip and the decoded result as float frames, about 33 MB per output frame-megapixel. That 4K pass peaked at 52 GB of RAM with --cached-cond. With the text encoder loaded as well, 105 frames at the same size ran a 57 GB machine out of memory. --budget caps the frame-megapixels per chunk; the refine default of 500 comes to about 44 frames per chunk at 4K. Lower it on a smaller machine, and use --cached-cond for anything at 4K.

Pixel. VRAM grows with the clip. Keep frames × (width × height ÷ 1,000,000) under your card's budget. The 96 GB row is measured; the others are starting points:

Sampling and VAE decode hit separate memory peaks. A 4090 finished all 8 sampling steps and then ran out in VAE decode, so if it crashes after the progress bar completes, lower --decode-tile rather than the resolution. For scale, single runs of one 243-frame 768x1408 clip on an RTX PRO 6000: 1:1 took 3 min at 52 GB, 1.5x took 7 min at 65 GB, 2x took 17 min at 80.5 GB.

Skip the text encoder

The prompts in both graphs are fixed (pixel's are empty, refine's are Lightricks' look-and-style prompts), so the text conditioning is the same on every run. The conditioning ships precomputed in tools/comfyui_cond_cache/, so you can skip the encoder download: 15.4 GB for int8, 26 GB for bf16. Copy that folder into ComfyUI/custom_nodes/, restart, and add --cached-cond:

python3 redetail.py clip.mp4 --cached-cond --scale 1.5

Pixel mode on an RTX 5090, 17 frames 640x384 to 1280x768:

A cache is bit-identical to the encoder that made it (PSNR inf, equal frame hashes). The shipped refine pair came from the int8_convrot encoder. The pixel pair came from Q5_K_M, and a render with it sits at 48.3 dB PSNR against the same render through the int8 encoder. To make your own, which then take precedence:

python3 redetail.py --bootstrap-cond --encoder <your encoder>

The tensors are model output, so they come under the LTX-2 Community Licence rather than MIT.

Limits

Refine keeps what is in the frame, flaws included.

• It can't repair a face that is malformed in the source; it rebuilds the detail of the face that is there. Lowering --guide-strength trades fidelity for texture, and in one test 0.4 drew a different person.
• Small text and logos can come out as glyph-shaped noise.
• From Lightricks' card: archive and broadcast footage comes out cleaner but emptier, because the model reads codec damage as noise (they run their Restoration IC-LoRA first). Pristine camera raw comes out slightly softer, because it removes grain it can't rebuild.
• An upscale can't exceed its source. Out-of-focus areas gain close to nothing.

Pixel is a generative re-renderer, and nothing in it preserves identity. In one test it drew in eyelashes that were a blur in the source, and also added freckles that weren't there. On a motocross clip it re-drew the jersey graphic and the number plate: stable across frames, but not the source's markings. Any logo, number or text gets re-imagined.

With either mode, compare a face against your source rather than judging overall sharpness.

The CLI has no resume, so a failure on chunk 9 of 10 re-renders all nine. It has no polling timeout either: if ComfyUI dies mid-run, the CLI waits until you press Ctrl-C, and you run it again. Uploads buffer in memory. A mid-shot seam is possible when memory forces a split with no cut nearby. It overwrites its output without asking and uses <output>_chunks/ as scratch, deleting only the files it made there.

Troubleshooting

python3 redetail.py --setup catches most of these before you render, including on a remote ComfyUI. It needs a directly reachable endpoint without authentication, and it sends no credentials. Pass it the same --model, --gguf and --encoder flags you will render with, or it checks the wrong files.

Every flag

input                 video to upscale (omit with --setup)
--setup               check the install and exit
--model     refine    'refine' (Refine-Details, default) or 'pixel' (Pixel Spatial Upscaler)
--scale     1.5       1.0 re-detail in place · 1.5 · 2.0 (1080p -> 4K-class)
--guide-strength 1.0  refine only: how hard the guide holds to your clip. Lower trades fidelity for texture
--comfy               ComfyUI URL (default http://127.0.0.1:8188)
--out                 output file (default <input>_redetail.mp4)
--budget              frame-megapixels per chunk (500 refine, 850 pixel). Lower it if you run out of memory
--audio     original  'original' re-muxes your track; 'generated' keeps the model's
--keep-chunks         keep the per-chunk intermediates
--gguf                GGUF transformer in models/unet. Lighter; try int8 first
--encoder             text encoder filename. Prefer --cached-cond and load none
--clip-device         'cpu' or 'default'; omitted leaves the workflow value alone
--decode-tile         VAEDecodeTiled tile_size; lower it for decode OOMs
--decode-temporal     VAEDecodeTiled temporal_size (default 128)
--bootstrap-cond      load the encoder once, cache both modes' prompt conditioning, exit
--cached-cond         load that cache instead of the encoder

Apple Silicon

Pixel mode only, through workflows/ReDetail_LTX25_upscale_MAC.json: the pixel graph with the GGUF transformer and no text encoder at all, running on the cached conditioning above. Its note panel covers the Mac setup. Refine hasn't been tested on Apple Silicon.

On an M5, 33 frames 640x384 to 1280x768 took 4.4 min with three models loaded (transformer and both VAEs), at 37.4 dB PSNR against the int8 path. Per frame-megapixel that is about 6x slower than an RTX 5090: roughly 34 min for a 10 s clip at 2x, 19 min at 1.5x. If you would rather run a Q5_K_M encoder than the cached conditioning, it needs the gemma4 patch for ComfyUI-GGUF that ships beside it.

One ComfyUI core edit is required. comfy/ldm/lightricks/vae/na_diffusion_decoder.py builds RoPE inverse frequencies in float64, which MPS doesn't support, so the render samples to the end and then dies in VAEDecodeTiled with Cannot convert a MPS Tensor to float64. The function already returns float32, so compute it on the CPU and move the result to the device. CUDA is unaffected.

Tested on

ComfyUI 0.37.2 with ComfyUI-LTXVideo from 1 October 2026, kornia 0.8.3 and comfy-kitchen 0.2.37, on an RTX 5090, October 2026. The Apple Silicon and RTX 4090 numbers are from ComfyUI 0.32.0, August 2026.

Licence

The MIT grant in LICENSE covers this project's own code only: redetail.py, the build_*_workflow.py scripts, tools/ and demos/.

The workflow files are modified derivatives of Lightricks' example_workflows/2.5/LTX-2.5_V2V_TiledFusion_Upscale.json (refine) and example_workflows/2.5/LTX-2.5_V2V_ICLoRA_Single_Stage_Distilled.json (pixel), distributed exclusively under the LTX-2 Community License Agreement. The full Agreement is in workflows/LICENSE-LTX-2-Community.txt, and LICENSE lists what was changed. Lightricks' unmodified examples aren't redistributed here; the build scripts say where to get them.

The Agreement's use restrictions apply to you and to anyone you pass these files on to, and any entity with more than $10,000,000 in annual revenue needs a paid commercial licence from Lightricks first. The weights are under the same Agreement and the IC-LoRAs under their own repositories' terms.
