GraphTeam

Official Repository of "GraphTeam: Facilitating Large Language Model-based Graph Analysis via Multi-Agent Collaboration".

• Paper Link: ([2410.18032] GraphTeam: Facilitating Large Language Model-based Graph Analysis via Multi-Agent Collaboration)

Contents

• Introduction
• System Requirements
• Installation Steps
  • 1. Create a Conda Virtual Environment
  • 2. Install Dependencies
  • 3. Using Docker
• Running the Project
  • 1. Activate the Conda Environment
  • 2. Start the Docker Container
  • 3. Run run.py
• Frequently Asked Questions

Introduction

GraphTeam consists of five LLM-based agents from three modules, where agents with different specialties collaborate to address complex problems. Specifically:

1. Input-Output Normalization Module:

   • The Question Agent extracts and refines four key arguments (e.g., graph type and output format) from the original question to facilitate problem understanding.
   • The Answer Agent organizes the results to meet the output requirements.

2. External Knowledge Retrieval Module:

   • We build a knowledge base consisting of relevant documentation and experience information.
   • The Search Agent retrieves the most relevant entries from the knowledge base for each question.

3. Problem-Solving Module:

   • Given the retrieved information from the Search Agent, the Coding Agent uses established algorithms via programming to generate solutions.
   • If the Coding Agent fails, the Reasoning Agent directly computes the results without programming.

Extensive experiments on six graph analysis benchmarks demonstrate that GraphTeam achieves state-of-the-art performance with an average 25.85% improvement over the best baseline in terms of accuracy.

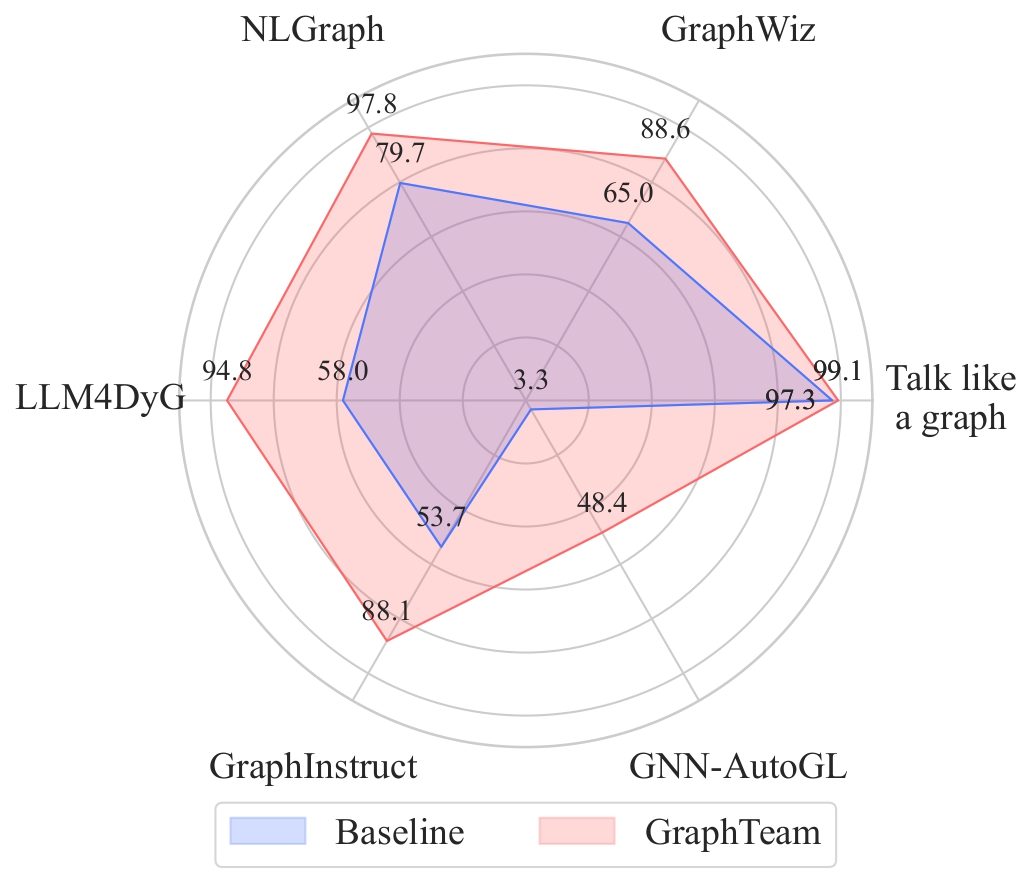

The overall pipeline of our multi-agent system GraphTeam (left), and the comparison between GraphTeam and state-of-the-art baseline on six benchmarks (right).

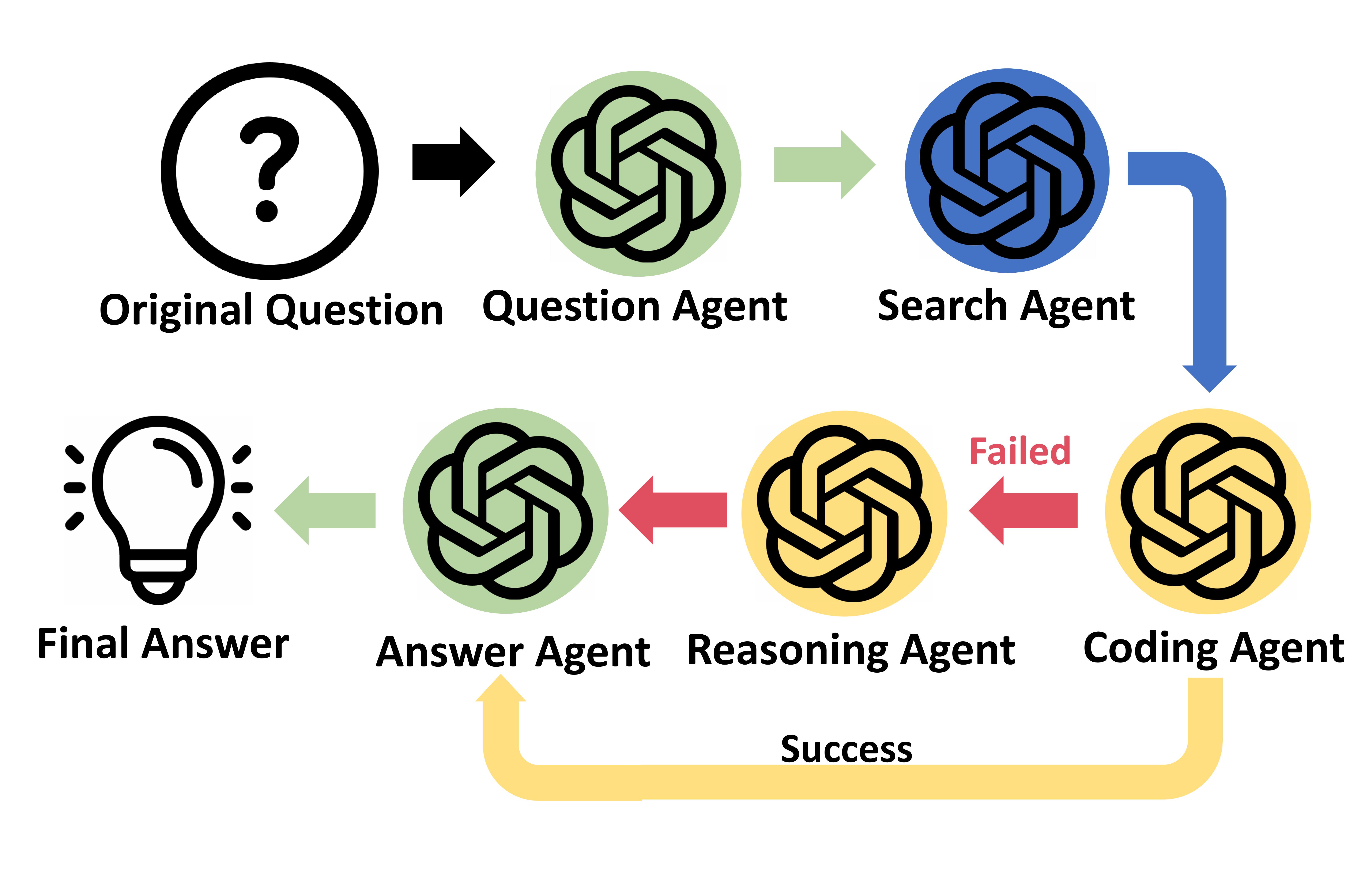

The overall framework of GraphTeam, which includes five agents from three functional groups.

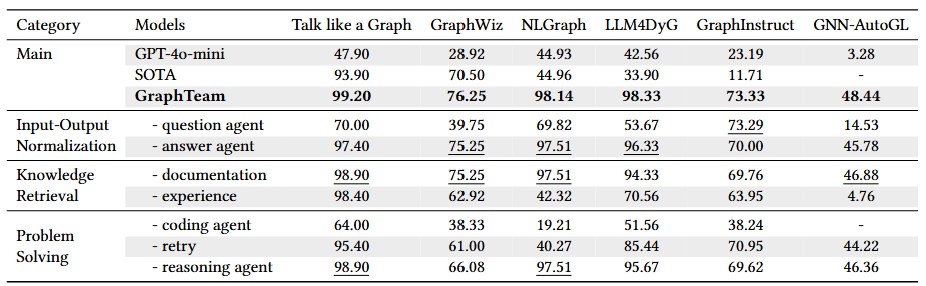

Performance comparison on six graph analysis benchmarks in terms of accuracy (%).

System Requirements

• Operating System : Compatible with Windows , Linux , and macOS . Note : AutoGL only supports x86 platforms, so Macs with M-series chips cannot run GNN_benchmark.
• Conda: Installed
• Docker: Installed and running

Installation Steps

1. Create a Conda Virtual Environment

First, create a Conda virtual environment with a specified Python version.

conda create -n myenv python=3.10.14

Activate the virtual environment:

conda activate myenv

2. Install Dependencies

With the virtual environment activated, run the following command to install the project dependencies:

pip install -r requirements.txt

3. Using Docker

Docker is used to execute code after it is generated. Follow these steps:

3.1 Pull the Specified Docker Image

docker pull chuqizhi72/graphteam:latest

3.2 Create and run a Container Named graphteam

docker run -it --name graphteam chuqizhi72/graphteam:latest /bin/bash

Running the Project

1. Activate the Conda Environment

Ensure that the Conda virtual environment is activated. If not, run:

conda activate myenv

2. Start the Docker Container

Ensure the Docker container is started. If not, run:

docker start graphteam
docker exec -it graphteam /bin/bash

3. Run run.py

Within the activated virtual environment, navigate to the project directory, ensure your current working directory is set to multi-agents-4-graph-analysis, and set your OpenAI API key in run.py. Then, run run.py:

cd multi-agents-4-graph-analysis

Setting the OpenAI API Key:

1. Open run.py located at multi-agents-4-graph-analysis/GraphTeam/run.py in your preferred text editor.

2. Locate the line where the OpenAI API key is set. It should look like this:

   os.environ['OPENAI_API_KEY'] = 'your-api-key-here'


3. Replace 'your-api-key-here' with your actual OpenAI API key:

   os.environ['OPENAI_API_KEY'] = 'sk-your-openai-api-key'


Running the Script:

After setting the API key, execute the script from the multi-agents-4-graph-analysis directory:

python GraphTeam/run.py

Note for Running the NLGraph Benchmark:

The project includes an answer_format_dict that specifies the required output format for different problem types. To ensure consistency and accuracy in the results when running the NLGraph benchmark, you need to modify the run_threaded function in the run.py file.

1. Open run.py located at multi-agents-4-graph-analysis/GraphTeam/run.py in your preferred text editor.

2. Locate the run_threaded function and answer_format_dict.

3. Find the following commented lines within the function:

   # if is NLGraph, the question should add output format
   # question = question + answer_format_dict[category_data['type'][i]]


4. Uncomment these lines by removing the # symbols:

   # if is NLGraph, the question should add output format
   question = question + answer_format_dict[category_data['type'][i]]


This modification ensures that each question includes the appropriate output format directive, guiding the system to format the output correctly and enhancing the reliability of the results.

Questions

Q1: I Encounter an Error When Running run.py

Solution: Ensure all dependencies are correctly installed and that both the Conda environment and Docker are activated. Check the paths and configurations in run.py to ensure they are correct. Additionally, verify that you have set your OpenAI API key correctly in run.py.

Q2: What Should Be the Working Directory When Running the Project?

Solution: When running the project, ensure that your current working directory is set to multi-agents-4-graph-analysis. This ensures that all relative paths and configurations function correctly.

Q3: Where Can I Find the Knowledge Base Used by the Search Agent?

Solution: The relevant documentation is located in the data directory of the project. The relevant documentation is located in the memory directory of the project. Ensure that all relevant files are present and properly formatted.

Q4: How Do I Modify Questions When Running the NLGraph Benchmark?

The project includes an answer_format_dict that specifies the required output format for different problem types. To ensure consistency and accuracy in the results when running the NLGraph benchmark, you need to modify the run_threaded function in the run.py file.

1. Open run.py located at multi-agents-4-graph-analysis/GraphTeam/run.py in your preferred text editor.

2. Locate the run_threaded function.

3. Find the following commented lines within the function:

   # if is NLGraph, the question should add output format
   # question = question + answer_format_dict[category_data['type'][i]]


4. Uncomment these lines by removing the # symbols:

   # if is NLGraph, the question should add output format
   question = question + answer_format_dict[category_data['type'][i]]


This modification ensures that each question includes the appropriate output format directive, guiding the system to format the output correctly and enhancing the reliability of the results.

Acknowledgement

We would like to acknowledge the following contributors for their valuable support and contributions to the GraphTeam project:

• Yubin Chen (1shuimo)
• Zekai Yu (yuzekai1234)
• Yang Liu (AckerlyLau)
• Yaoqi Liu (dddg617)

Their dedication and expertise have been instrumental in the development and success of this project.

Citation

@misc{li2024largelanguagemodelsanalyze,
      title={Can Large Language Models Analyze Graphs like Professionals? A Benchmark, Datasets and Models},
      author={Xin Li and Weize Chen and Qizhi Chu and Haopeng Li and Zhaojun Sun and Ran Li and Chen Qian and Yiwei Wei and Zhiyuan Liu and Chuan Shi and Maosong Sun and Cheng Yang},
      year={2024},
      eprint={2409.19667},
      archivePrefix={arXiv},
      primaryClass={cs.CL},
      url={https://arxiv.org/abs/2409.19667},
}

@misc{li2024graphteamfacilitatinglargelanguage,
      title={GraphTeam: Facilitating Large Language Model-based Graph Analysis via Multi-Agent Collaboration},
      author={Xin Li and Qizhi Chu and Yubin Chen and Yang Liu and Yaoqi Liu and Zekai Yu and Weize Chen and Chen Qian and Chuan Shi and Cheng Yang},
      year={2024},
      eprint={2410.18032},
      archivePrefix={arXiv},
      primaryClass={cs.AI},
      url={https://arxiv.org/abs/2410.18032},
}
