Backpack 🎒

Backpack is a high-performance tunnel engine written entirely in Go, purpose-built for Iran ⇄ abroad (kharej) server setups. One self-contained binary with an interactive CLI and a secured web dashboard — run and manage everything with or without a terminal.

It carries a tunnel three ways: reverse (kharej dials Iran), direct (Iran dials out), and a full IP tunnel that puts both servers on one private network.

📘 Setup tutorials · 📚 Documentation · 🇮🇷 راهنمای فارسی · Telegram Channel · Telegram Group

---

How it works

  end users ──▶  IRAN server  ══ tunnel ══▶  KHAREJ server  ──▶  real service
                 "Setup Iran"                 "Setup Kharej"
                 exposes the ports            dials out to Iran

An end user connects to a forwarded port on the Iran server; the engine carries it through one transport to the kharej client, which hands it to the real service. In the reverse tunnel above the connection is dialed by the client (kharej → Iran), so the far side needs no open inbound port.

Three shapes

The ports never move: Iran exposes them, kharej holds the real service. What changes is who reaches out first, and what the tunnel carries.

Both are built from Setup Iran and Setup Kharej: pick the machine you are on, and the wizard asks which direction you want and writes the config itself.

A direct tunnel is a full IP tunnel — an interface on each host carrying whole IP packets, wrapped in Backpack's own GRE inside a Noise session and handed to one of three carriers. It measures its own MTU once it is up, which is the setting that fails worst when it is wrong.

→ Direct tunnel

---

Install

One command as root on the VPS. It downloads the prebuilt release for your architecture, verifies it against the published checksum, installs it, and opens the menu:

bash <(curl -fsSL https://raw.githubusercontent.com/AminMGMT/BackPack/main/install.sh)

Reopen the menu any time with sudo backpack.

No internet on the server? There is a full offline path — copy one archive over and go. Building from source works as a fallback too. → Installing Backpack

---

Quick start

Get the roles right first — this is the one thing people trip on:

Always set up the Iran server first — the client needs the Iran address and the token the server generates.

# on the IRAN server

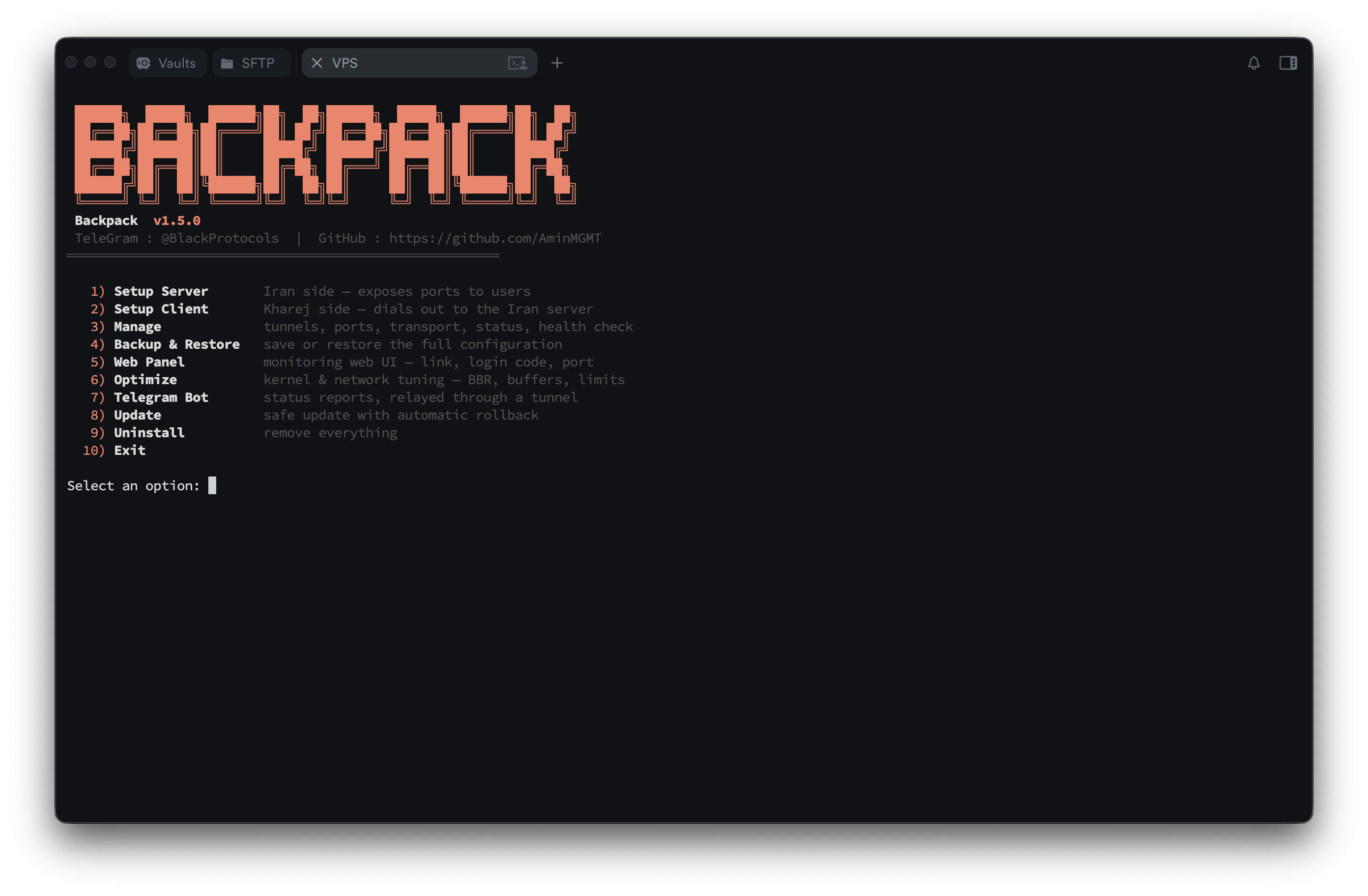

sudo backpack   →  1. Setup Iran
#   transport → tunnel port → name → COPY THE TOKEN → exposed ports
#   → UDP? → preset (Turbo) → done

# on the KHAREJ server
sudo backpack   →  2. Setup Kharej
#   same transport → Iran IP + same tunnel port → name → SAME TOKEN
#   → same preset → done

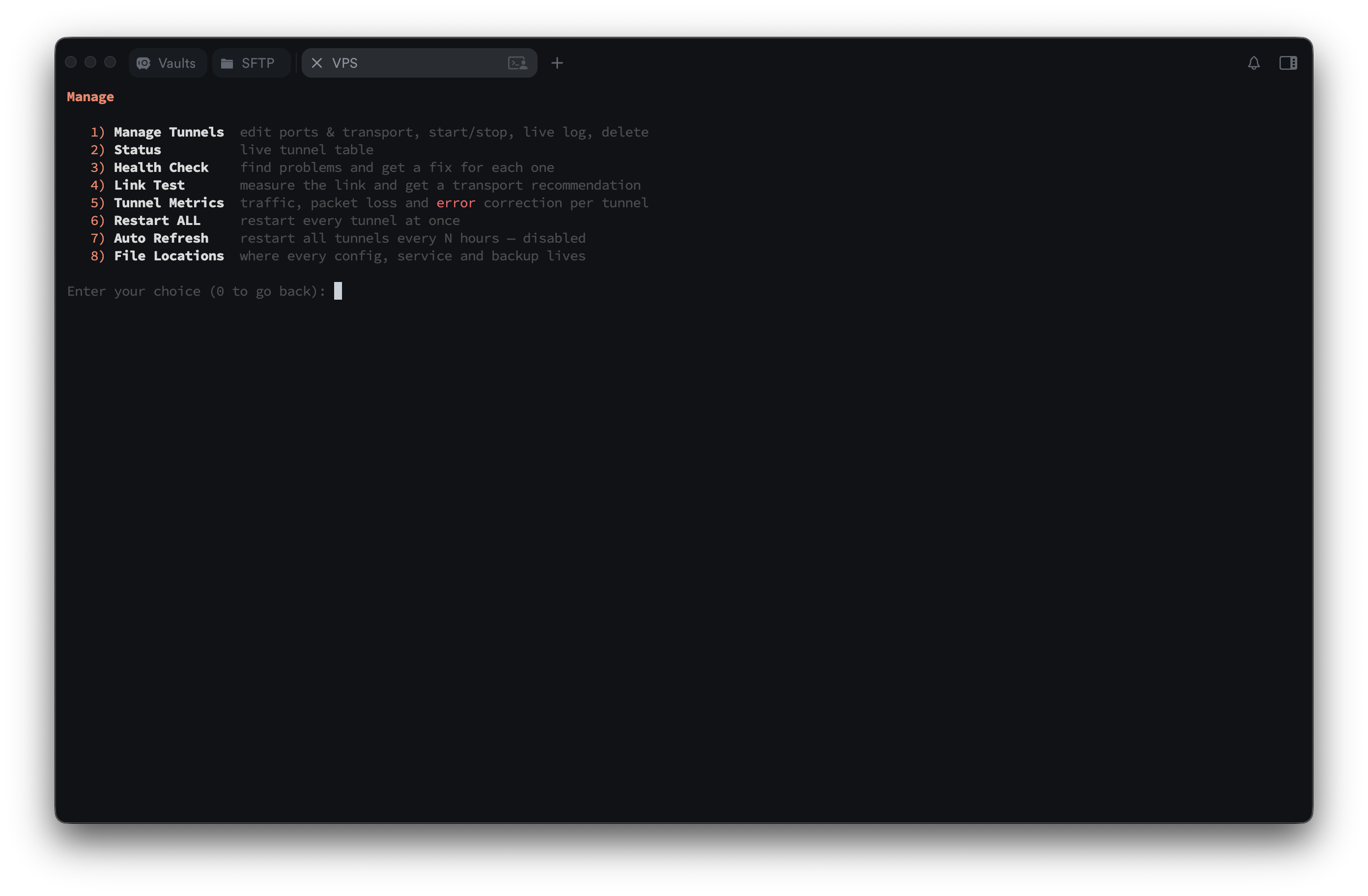

Then Manage → Status to see both ends, and Manage → Health Check if anything looks wrong — it prints a fix under each problem.

→ Before you start covers the roles, the token, the port mapping and the firewall in full. Every transport then has its own step-by-step page.

---

Pick a transport

Thirteen to choose from, so you match the route instead of fighting it. Not sure? Manage → Link Test measures your actual route and recommends one.

Every transport explained → docs/transports.md

The path blocks or counts by source address? That is IP Spoofing, and it is a carrier of the direct tunnel rather than one of the transports above — see docs/ip-spoofing.md.

Filtered or dirty server? TCP + Stealth or WSS get the tunnel through DPI — proven in the field. An IP blocked at the network layer, or a "dirty" exit, is a clean-IP or CDN-edge matter rather than a transport one — see when a server is filtered or dirty.

---

Why Backpack?

• UDP on any forwarded port — Xray/3x-ui, Shadowsocks, WireGuard, DNS and games, on every transport, with one switch. How
• No fingerprint — Stealth looks like random bytes; WSS dials with a real Chrome TLS handshake and answers every probe with a decoy website.
• Gaming-grade UDP — KCP with always-on FEC repairs loss instead of waiting for a retransmit, plus multi-exit failover that steers to the healthiest server as routes degrade.
• Nothing left broken — updates and edits that break a tunnel revert themselves, and a watchdog restarts a dropped tunnel within ~1 minute from its own service.
• It tells you what is wrong — Health Check prints a fix under each problem; Link Test measures the route and recommends a transport and its timers.

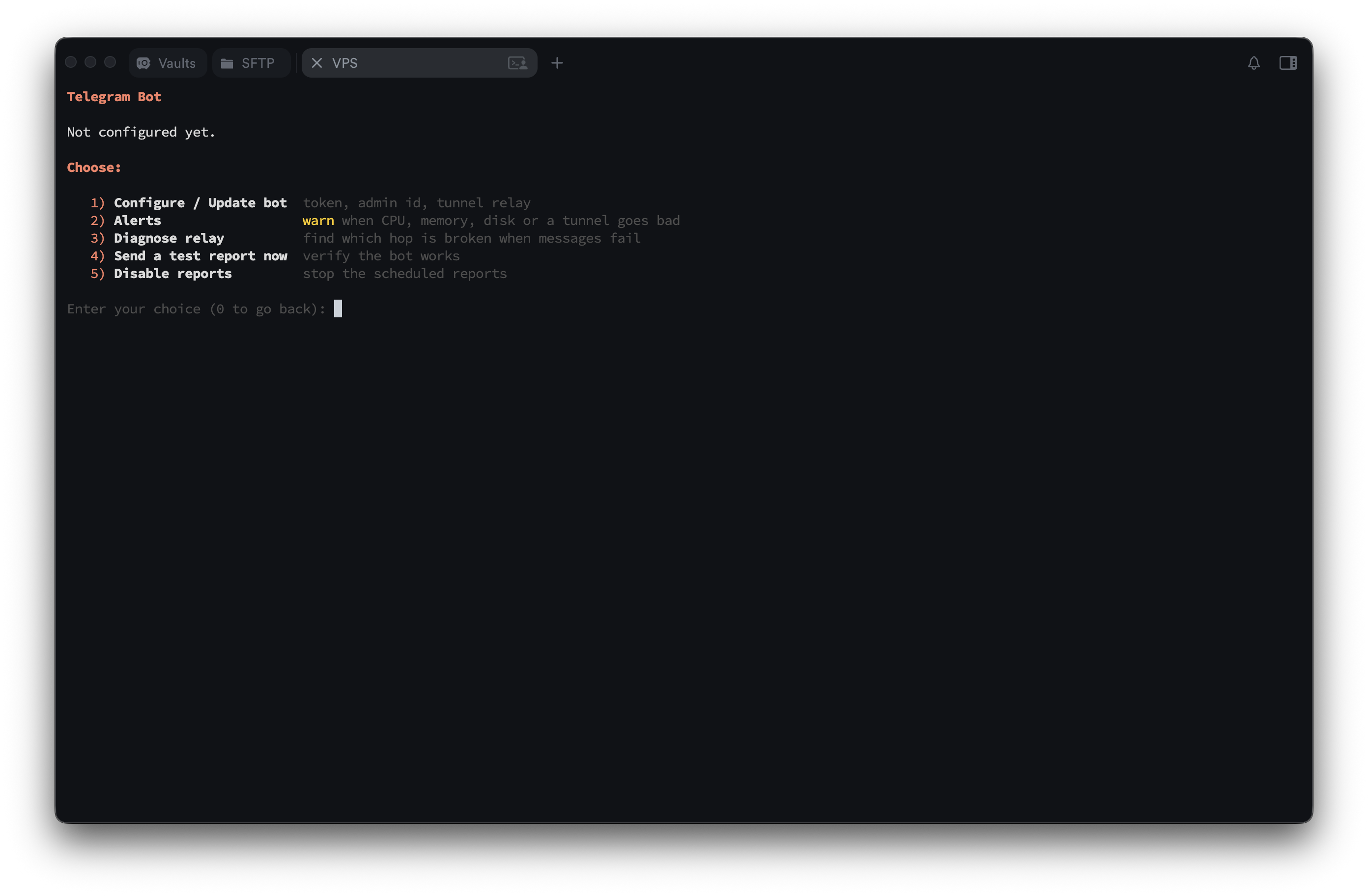

• Telegram from Iran — status and alerts reach Telegram by going out through a tunnel peer, choosing the tunnel itself and moving when one dies.
• Offline installer — install or update with no internet at all.

The full feature list

Performance — four presets (Balance, Turbo, Aggressive, and Throughput on KCP) fill in every tuning value at once; Optimize applies kernel/network tuning (BBR + fq, buffer ceilings, file limits); Link Test derives the liveness timers from your real round trip.

Reliability — automatic failover to backup addresses, with health scoring (rtt + 2·jitter + 20·loss%) or load balancing across all of them; self-healing watchdog; automatic rollback; systemd services that survive reboots.

Security — the token never travels in the clear on an encrypted transport (Stealth and KCP derive keys from it, WSS binds the credential to the TLS session); PROXY protocol v2 for real client IPs; per-tunnel connection and bandwidth caps; login-protected dashboard; SHA-256 verified downloads, and anything unverifiable is refused rather than installed.

Management — an interactive CLI where every option explains itself; setup checks the address you give it (CDN in front, AAAA records); CDN-edge dialing; JSON logging; auto-refresh every N hours; a built-in SOCKS5/HTTP proxy so the tunnel exit can be its own backend.

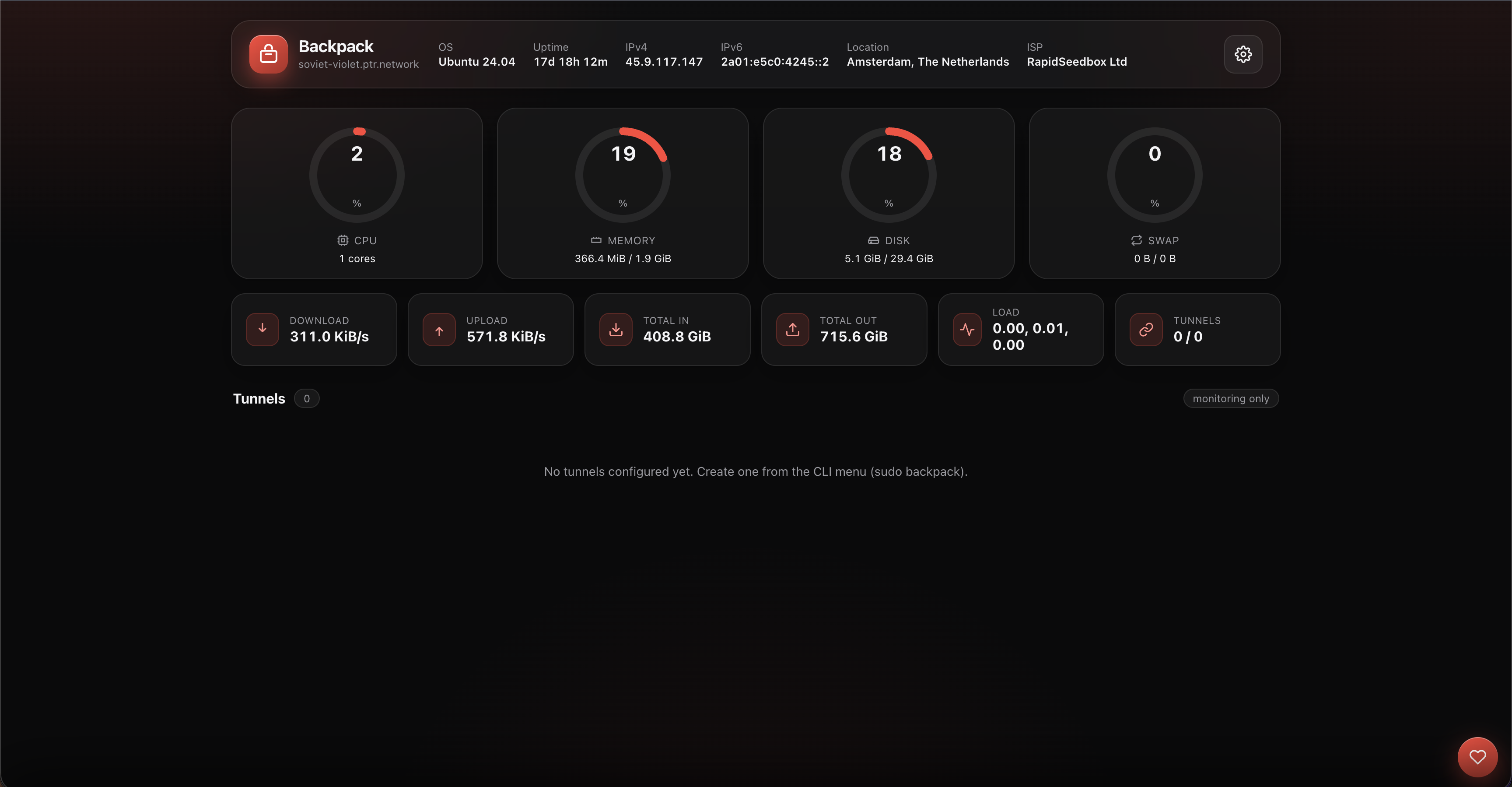

Monitoring — web dashboard on port 7777 with live CPU/RAM/disk/traffic and per-tunnel status, ping and logs; metrics including KCP retransmits, loss and FEC repairs, kept across restarts; Telegram alerts with a recovery message for each.

Maintenance — one-file backup of every tunnel, the panel password, Telegram settings, TLS certificates and the schedule; verified updates on a stable or beta channel.

---

Documentation

Both sections are also summarised in Persian at the bottom of every page.

---

Screenshots

---

Support & donate

If Backpack helps you, a star or a small tip is appreciated. 🙏

• Telegram channel: @BlackProtocols
• Telegram Group: @BlackProtocolsGroup

---

License

Copyright © 2026 Amin Mohammadi (AminMGMT). Released under the GNU Affero General Public License v3.0 (AGPL-3.0) — see LICENSE and NOTICE.
