See where your space goes. A native macOS storage analyzer with Trash-only cleanup.

SpareDisk is a sandboxed, SwiftUI-native macOS utility that analyzes folders you explicitly grant access to, shows where disk space goes, helps you find large / old / duplicate / leftover files, and moves items to the Trash only after you review and confirm. No permanent delete, no cloud upload, no Full Disk Access.

• Bundle ID: com.minilabs.SpareDisk
• Category: public.app-category.utilities
• Stack: Swift 5.0, SwiftUI, AppKit, CryptoKit, QuickLookUI, Charts, UniformTypeIdentifiers
• Requirements: macOS 15.0+, Xcode 26.6+, Apple Silicon (arm64, x86_64 excluded)
• Dependencies: none (no SPM, CocoaPods, or network libraries)
• Website: https://sparedisk.minilabs.cc/ · Privacy: https://sparedisk.minilabs.cc/privacy.html · Support: support@minilabs.cc

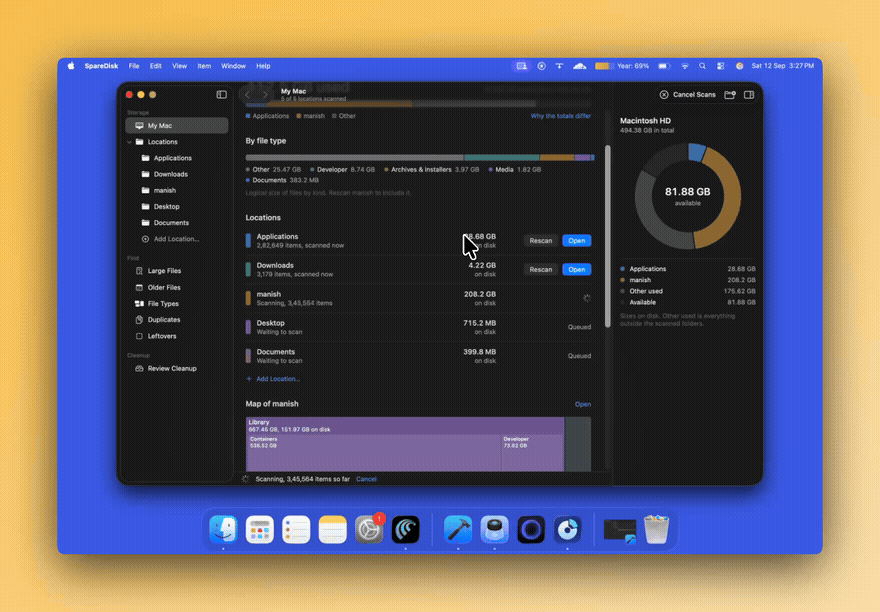

Demo

Your browser does not support the video tag. Watch it here.

~1:42 screen recording (docs/sd.mp4, 1552×1080, H.264): My Mac overview with used-space total, per-type bar, location rows and volume donut → live scan with item-count progress → Large Files browsing → sunburst map drill-down into a location.

---

Table of Contents

• Demo
• What it does
• Design principles
• Features
• How it works
• Safety model
• Privacy and permissions
• Requirements
• Build, run, test
• Usage guide
• Keyboard shortcuts
• Project structure
• Architecture
• Data model
• Views and navigation
• Scan details
• Duplicates, leftovers, related data
• Maps: treemap and sunburst
• Testing
• Debug launch flags
• Limitations and honest scope
• Roadmap
• Brand assets
• Docs
• License

---

What it does

1. You add one or more Locations (e.g. Home folder, /Applications, an external drive) via the system folder picker.
2. SpareDisk performs a metadata-only parallel scan of each location (one lstat per item, no file-content reads except for duplicate hashing, no symlink following, no iCloud hydration).
3. You explore results in My Mac overview, Browse, Large Files, Older Files, File Types, Duplicates, and Leftovers — as a sortable list, squarified treemap, or two-ring sunburst.
4. You stage candidates in a Review Cleanup queue, confirm once, and SpareDisk revalidates every item immediately before calling FileManager.trashItem. Anything changed, out-of-scope, managed, or system-owned is refused with a reason.
5. Space is reclaimed when you empty the Trash in Finder. SpareDisk never deletes permanently.

---

Design principles

---

Features

My Mac (Overview) — Views/OverviewView.swift

• Volume capacity bar with legend (SegmentedCapacityBar + FlowLayout), “Why totals differ” popover, overshoot/elsewhere handling.
• Category totals bar (Documents / Media / Archives & Installers / Developer / Applications / System & Library / Other).
• Location rows with color bar, relative scan date, unreadable-folder count, scan-to-scan delta, Scan / Rescan / Open / Queued / Reconnect actions.
• Embedded treemap preview (300pt), top-8 largest files with inspector + context menu.
• First-launch cards: Home / Applications / Other (MockData seeds UI only; real unscanned locations never show sample contents).

Browse — Views/BrowseView.swift

• Per-location drill-down (FolderRows up to 8 levels, FileRow, FileListView with sortable Name / Size / Modified header).
• Flat name search vs hierarchical list; unreadable badge; scan-changes sheet (ScanDiff); map color (folder/type/age) and size basis (logical/onDisk) pickers.
• Native file icons via NSWorkspace.icon(for:) (FileTypeIcon.swift) without opening contents; iCloud placeholder and review-queued badges.

Find: Large / Older / Types — Views/FindViews.swift

• Large Files: threshold picker (100M / 500M / 1G / 5G, @AppStorage), top-200 per location.
• Older Files: month picker (6 / 12 / 24 / 60), by-year age chart + “Before” bucket, click-to-filter.
• File Types: All + per-category chips, totals bar, top-200 filtered.
• All three switch between list / map / sunburst and share NodeContextMenu.

Duplicates — Views/DuplicatesView.swift, Services/DuplicateService.swift

• Finds byte-identical files among each scan’s largest files. Three-stage verify: size → 64KB head/mid/tail sample hash → full streaming SHA-256 → memcmp byte compare.
• Hard-link collapse by volume:inode, ≥1 MB minimum, cloud placeholders skipped with reasons, IOPOL_THROTTLE I/O politeness.
• Per-group keeper (default: newest modified), “Keep This Copy” menu, “Stage Rest” (never stages the keeper), redundant-bytes accounting. Clone disclaimer: APFS clones may free less than logical size.

Leftovers — Views/LeftoversView.swift, Services/LeftoverService.swift

• Heuristic orphan detection under ~/Library: Containers, Group Containers, Application Support, Caches, HTTPStorages, WebKit, Preferences/*.plist, Saved Application State, Logs, Application Scripts, Cookies.
• Bundle-ID parsing (strips group. prefix, 10-char team IDs, validates TLD/labels), com.apple.* treated as system, installed check via NSWorkspace.urlForApplication + running apps, CLI-ownership warning.
• Grouped list with display name, bundle ID, count, bytes, kind/path/date, per-group “Move to Trash”, “Move All to Trash”.

Related data for apps — Services/RelatedDataService.swift

• For a selected .app: reads Contents/Info.plist CFBundleIdentifier, then checks 10 ID-derived paths + Group Containers/*.<id> + CFBundleName/DisplayName/Executable and vendor/product name matches under Application Support/Caches.
• Splits into strong (bundle identifier / shares identifier) vs weak (name-only) evidence (UninstallPlan.split). UninstallSheet pre-checks strong, unchecks weak. Nothing uninstalls apps or stops helpers — items flow through Review → Trash.

Review Cleanup — Views/ReviewViews.swift, Services/CleanupService.swift

• Normalized queue (CleanupService.normalize: dedup by standardized path, drop descendants of queued folders). Header, confirmation sheet, running progress, per-item results.
• “Needs attention” vs “Queued” sections with risk labels, drag-and-drop URLs (stage(urls:)), protectKeepers / requireKeepers integration with Duplicates.
• After run: summary strip with “Show Trash / Dismiss”, queue pruned via remaining(afterMoving:), leftover groups pruned.

Inspector, Quick Look, Finder — Views/InspectorView.swift, Services/ScopedActions.swift, Services/QuickLookBridge.swift

• Single selection: identity, logical + allocated size, facts, top-10 children, related-data actions, Review / Trash / Quick Look / Reveal / Uninstall.
• Multi-selection totals + bulk Review / Trash. Storage donut (Charts) with hit-testing for the active volume.
• Reveal uses activateFileViewerSelecting; Preview hands a held security scope to QuickLookBridge until the panel closes; Copy Path to pasteboard.

Changes, issues, help

• ChangesView.swift: Added / Removed / Grew / Shrank / Unreadable list with ±bytes ±items since previous scan (ScanDiff.between).
• ScanIssuesView (SDCommands.swift): lists unreadable folders; totals explicitly exclude them.
• HelpView.swift: six built-in topics — Sizes, Locations, Review and the Trash, Duplicates, Related data, Privacy.

---

How it works

Scan pipeline

NSOpenPanel grant → security-scoped bookmark → detached ScanEngine.scan
  → parallel lstat walk (1 worker/core, shared dir queue, NSCondition)
  → per-worker Agg (bytes/alloc/count/category, hard-link dedup, package cut-off)
  → merge + cross-worker link reconcile → top-level tree + 200 largest / 200 largest-on-disk / 200 oldest
  → ScanStore.save (current → .prev.json, atomic) → AppState.applyScan

Key files:

• Services/ScanEngine.swift (~680 lines): ScanProgress, ScanIssue, ScanResult, ParallelWalk, Stat/lstat, category(name:ext:), consider/insertSorted, buildTree.
• Services/AppScanActions.swift: queueing, generation tokens, grant hold for whole batch, drill-down (children(of:)/ensureChildren/startDrill), forgetLocation, volume describe.
• Services/ScanStore.swift: ~/Library/Application Support/SpareDisk/Scans/<sha256(locationID)[12B hex]>.json + .prev.json; tolerant date decoding (ns-since-1970 / sec-since-2001 / Double / ISO8601).
• Services/ScanDiff.swift: previous-vs-current diff by top-node path; unreadable if current issues cover path/ancestor/root.
• Models/StorageSummary.swift: volume-vs-folder reconciliation (used/accounted/other/overshoot/scale), nested paths counted once, allocationTracked flag.

Size semantics

• Logical bytes: what a file would hold fully downloaded/uncompressed (Finder “Get Info” first figure).
• Allocated bytes: st_blocks × 512 — what it occupies now. Sparse images, clones, and non-downloaded cloud files make allocated ≪ logical.
• SDSizeBasis (View menu / Settings / toolbar) switches every view between the two; on disk is the default. On-disk hint shown in logical mode when logical ≥ 50 MB and allocated < ½ logical.
• The file-type breakdown tracks both figures per kind (categoryBytes / categoryAllocated) and follows the basis, so on disk it never exceeds the volume; scans saved before per-kind allocation fall back to logical.
• Volume bar counts everything on disk; a location counts only inside it. System files, other users, snapshots, and un-added locations explain the gap (Help → Sizes).

Categories — Models/SDModel.swift:SDFileCategory

documents · media · archives · developer · apps · system · other · unknown — mutually exclusive for totals. Extension sets + directory-name rules + .app → apps; large .raw/docker.raw → developer.

Layout

• Services/TreemapLayout.swift: Bruls squarified treemap along shorter side, desc-size + id tiebreak, skips ≤0 weights, absorbs float error, clamps ≥0.
• Views/TreemapView.swift: aggregates to ≤80 cells (minCellArea 56×24, demotes <52×18 over ≤8 passes into “Other”), Canvas cells with fit-aware labels, breadcrumb drill, arrows/Return/Space, drag-out NSURL, map-cell-<id> accessibility.
• Views/SunburstView.swift: 2-ring Canvas (inner level, outer children+rest), minSpan 1/240, minChild 1/360, minParent 1/90, ≤48 sectors, hover share %, center label, same drill/keyboard/a11y model.

---

Safety model

Found a way around any of this? See SECURITY.md for how to report it privately.

Only CleanupService mutates user files. UI submits (ReviewItem, scopeRoot) pairs; the scanner exposes no delete API.

Plan normalization (normalize)

• Dedup by standardized(path) (Browse and Find stage the same file under different IDs).
• Descendants of a queued folder counted once.

Per-item revalidation (revalidate, fail-closed)

1. lstat symlink check → resolve resolvingSymlinksInPath containment (!= root).
2. Reject blocked prefixes (/System /Library /private /bin /sbin /usr /etc /var /dev /cores /opt), backup markers (Backups.backupdb, .timemachine), managed extensions (.photoslibrary .mailbundle .mbox — hand off to owning app).
3. Read live resourceValues (directory/link/size/mod-date/ubiquitous). iCloud not-.current blocked.
4. Verify filesystem identity (fsFileNumber/fsVolumeNumber ino/dev; nil → fail) and type.
5. Files: size + date sameInstant(1µs). Folders: own mtime + firstManagedDescendant search (cap 50k) + newestDescendantChange(since: verifiedAt, limit: 1M) — unchanged | changed(name) | tooLarge | unreadable.
6. FileManager.trashItem → .moved(trashURL) / .failed / .missing. No permanent fallback.

After a run, remaining(afterMoving:) removes moved IDs/paths and everything nested inside moved folders.

Moving to the Trash frees nothing by itself. Space returns when you empty the Trash. Clones and multi-linked files may free less than their logical size. Apps/files owned by root or another user need an admin password only Finder can prompt for — SpareDisk reports them and offers Finder instead.

---

Privacy and permissions

Entitlements — SpareDisk.entitlements

com.apple.security.app-sandbox = true
com.apple.security.files.user-selected.read-write = true
com.apple.security.files.bookmarks.app-scope = true

Other manifests

• Info.plist: only ITSAppUsesNonExemptEncryption=false.
• SpareDisk/PrivacyInfo.xcprivacy: NSPrivacyTracking=false, no collected/tracking domains; accessed APIs: UserDefaults (CA92.1), FileTimestamp (DDA9.1,C617.1,3B52.1), DiskSpace (85F4.1).
• Hardened runtime + sandbox enabled; user-selected files read-write.

Access lifecycle — Services/LocationAccessService.swift

• pickFolders (NSOpenPanel, directories only, multi-select, packages not treated as directories) → persistGrant (security-scoped bookmark in SpareDisk.LocationBookmarks.v1, order in LocationOrder.v1).
• resolve(id:) → (URL, stale) + beginAccess/stopAccessing balanced per operation; whole-batch hold for scan/duplicates/cleanup; Quick Look holds scope until panel closes.
• realHome via getpwuid (sandbox NSHomeDirectory is the container). Transient in-memory grants support -uiTestFixture / -demoPath.
• Forget Location removes bookmark + saved scans + in-memory state. Nothing on disk changes.

---

Requirements

Linked frameworks (no SPM): SwiftUI, AppKit, Foundation, CryptoKit (SHA-256), QuickLookUI, Charts (donut/age), UniformTypeIdentifiers, CoreGraphics.

---

Build, run, test

# Debug build (local ad-hoc signing)
xcodebuild -project SpareDisk.xcodeproj -scheme SpareDisk \
  -configuration Debug \
  -derivedDataPath /private/tmp/sparedisk-derived \
  CODE_SIGN_IDENTITY=- build

# Unit tests (Swift Testing)
xcodebuild -project SpareDisk.xcodeproj -scheme SpareDisk \
  -configuration Debug \
  -derivedDataPath /private/tmp/sparedisk-derived \
  CODE_SIGN_IDENTITY=- -only-testing:SpareDiskTests test

# Open in Xcode
open SpareDisk.xcodeproj

Then Product → Run (⌘R). On first launch use Add Location (⌘O) or the Home / Applications / Other starter cards.

The project uses FileSystemSynchronizedRootGroup, so new .swift files under SpareDisk/, SpareDiskTests/, SpareDiskUITests/ are picked up automatically — no manual target membership needed.

---

Usage guide

1. Add a location: toolbar Add Location (⌘O) or sidebar Add. Grant Home to cover Desktop, Documents, Downloads, and Library in one step; add /Applications and external drives separately.

2. Scan: Scan My Mac / Scan / Rescan (⌘R). Progress is indeterminate with item count + elapsed time. Cancel anytime — cancelled scans are not saved.

3. Explore: sidebar destinations —

   • My Mac (volume + types + locations + map + top files)
   • location detail (Browse list / map / sunburst, ⌘I inspector)
   • Large Files, Older Files, File Types
   • Duplicates, Leftovers
   • Review Cleanup

   Back (⌘[) / Forward (⌘]) traverse real history; search filters the current context; breadcrumb + map trail drill into folders.

4. Decide: select → inspector (logical + allocated size, dates, identity, children, access) → Quick Look (⌘Y) / Reveal in Finder (⌥⌘R) / Copy Path (⌥⌘C).

5. Stage: Add to Review (⇧⌘R) or Move to Trash (⌘⌫, stages + confirms). For duplicates: pick a keeper per group → Stage Rest. For leftovers: per-group or Move All to Trash. For apps: Find Related Data → UninstallSheet (strong pre-checked, weak unchecked) → stage.

6. Confirm: Review Cleanup shows normalized count + bytes (folders vs files). Move N to Trash → confirmation → per-item revalidation → results list. Show Trash opens Finder; empty Trash there to reclaim space.

7. Maintain: Rescan after emptying Trash; Changes sheet shows Added/Removed/Grew/Shrank since last scan; Unreadable Folders sheet explains gaps; Forget Location revokes permission + deletes saved scans.

---

Keyboard shortcuts

---

Project structure

SpareDisk/
├── README.md                      ← this file (repo root has Info.plist + entitlements)
├── Info.plist                     ← ITSAppUsesNonExemptEncryption=false only
├── SpareDisk.entitlements         ← sandbox + user-selected read-write + app-scope bookmarks
├── SpareDisk.xcodeproj/           ← 3 targets, FileSystemSynchronizedRootGroup, no SPM
├── SpareDisk/
│   ├── SpareDiskApp.swift         ← @main App: WindowGroup + Settings + Help window
│   ├── ContentView.swift          ← NavigationSplitView + inspector + toolbar + sheets
│   ├── Models/
│   │   ├── SDModel.swift          ← ScanNode, SDLocation, ReviewItem, AppState, SDFormat, MockData (~690 lines)
│   │   └── StorageSummary.swift   ← volume reconciliation, category totals
│   ├── Services/
│   │   ├── ScanEngine.swift       ← parallel metadata walk (lstat, packages, hard-links, rankings)
│   │   ├── ScanStore.swift        ← JSON persistence (current + .prev per location)
│   │   ├── ScanDiff.swift         ← previous-vs-current changes
│   │   ├── CleanupService.swift   ← sole mutator: normalize + revalidate + trashItem
│   │   ├── DuplicateService.swift ← size → sample-hash → SHA-256 → memcmp
│   │   ├── LeftoverService.swift  ← Library orphan heuristics + UninstallPlan.split
│   │   ├── RelatedDataService.swift ← bundle-ID + name evidence for apps
│   │   ├── TreemapLayout.swift    ← squarified layout
│   │   ├── LocationAccessService.swift ← open panel + bookmarks + scoped access
│   │   ├── QuickLookBridge.swift  ← QLPreviewPanel host with held scope
│   │   ├── ScopedActions.swift    ← scopeForNode / reveal / preview
│   │   ├── AppScanActions.swift   ← scan queue, drill-down, restore, forget
│   │   ├── AppCleanupActions.swift← requestTrash / runCleanup / cancel / showTrash
│   │   ├── AppRelatedActions.swift← findRelatedData / stage drag-drop
│   │   ├── AppLeftoverActions.swift ← findLeftovers / prepareUninstall / stageUninstall
│   │   └── DuplicateActions.swift ← findDuplicates / keeper selection / stageGroupExceptKeeper
│   ├── Views/
│   │   ├── SidebarView.swift      ← Storage + Find + Cleanup sections
│   │   ├── OverviewView.swift     ← My Mac: volume, types, locations, map, top files
│   │   ├── BrowseView.swift       ← location detail: list/map/sunburst, search, folders
│   │   ├── FindViews.swift        ← Large / Older / Types
│   │   ├── TreemapView.swift      ← squarified map + breadcrumb + drill + drag-out
│   │   ├── SunburstView.swift     ← 2-ring map + hover + drill
│   │   ├── DuplicatesView.swift   ← groups, keepers, skipped
│   │   ├── LeftoversView.swift    ← orphan groups
│   │   ├── ReviewViews.swift      ← ReviewQueueView + StatusBarView
│   │   ├── InspectorView.swift    ← single / multi / storage-donut / empty states
│   │   ├── ChangesView.swift      ← scan diff sheet
│   │   ├── UninstallSheet.swift   ← strong/weak toggles for related data
│   │   ├── NodeContextMenu.swift  ← shared Review/Uninstall/QuickLook/Reveal/Copy Path
│   │   ├── SDCommands.swift       ← menus + SettingsView + AboutView + ScanIssuesView
│   │   ├── FileTypeIcon.swift     ← NSWorkspace artwork cache
│   │   └── HelpView.swift         ← 6 built-in help topics
│   ├── Theme/SDTheme.swift        ← spacing, type, category/folder/age palettes (WCAG-aware), shared controls
│   └── Assets.xcassets/ + Sparedisk.icon/ ← app icon + in-app logo
├── SpareDiskTests/                ← 12 Swift Testing files (see Testing)
├── SpareDiskUITests/              ← XCUITest: fixture flow + launch screenshot
└── docs/
    ├── APP_REVIEW.md              ← 2026-09-12 source + running-build review, P1/P2 findings
    └── brand/                     ← 1024px master, backup, generation prompt + maintenance

Line counts (approx): SDModel ~690, ScanEngine ~680, TreemapView ~520, InspectorView ~410, OverviewView ~410, total Swift ~9,300.

---

Architecture

┌─────────────┐   grants (bookmarks)   ┌──────────────────────┐
│ ContentView │◄──────────────────────►│ LocationAccessService│
│ Sidebar +   │                        │ UserDefaults +       │
│ CenterView  │   scans (detached)     │ security-scoped URLs │
│ + Inspector │◄──────────────────────►├──────────────────────┤
└──────┬──────┘                        │ ScanEngine (lstat)   │
       │ AppState (@Observable,        │ ScanStore (JSON)     │
       │  MainActor, UserDefaults      │ ScanDiff             │
       │  persisted view prefs)        └──────────┬───────────┘
       │                                          │ ScanResult
       ▼                                          ▼
┌──────────────┐  queue (ReviewItem)  ┌─────────────────────┐  trashItem only
│ Browse/Find/ │─────────────────────►│ CleanupService      │──────────────► Trash
│ Duplicates/  │  keepers/evidence    │ revalidate → trash  │  (Finder empties)
│ Leftovers/   │◄────────────────────►│ Duplicate/Leftover/ │
│ Related      │                      │ Related services    │
└──────────────┘                      └─────────────────────┘

• State: single @Observable final class AppState (in SDModel.swift) holds selection + back/forward stacks, locations, scans + previousScans, reviewItems, duplicate/leftover/related state, drill/expanded/search/inspector state, and persisted prefs (viewMode/sortField/mapColor/sizeBasis/showInspector/appearance).
• Concurrency: UI is MainActor-isolated by target default; filesystem work is nonisolated + detached with AsyncStream progress. No network actors.
• Navigation: SDSidebarSelection (overview | location(id) | largeFiles | olderFiles | fileTypes | duplicates | leftovers | review) with backStack/forwardStack, activeLocationID, per-selection reset of search/selection/inspector/map-trail.

---

Data model

ScanNode (SDModel.swift:42) — one file/folder/package:

id (= locationID#path) · name · path · isFolder · isPackage · category · logicalBytes · modified · childCount · children? · isCloudPlaceholder · isUnreadable · fsFileNumber? · fsVolumeNumber? · allocatedBytes? · hardLinkCount · ownedByOthers — tolerant Codable (older saved scans still load).

SDLocation — id · name · symbol · isExternal · access (available | partiallyAccessible | reconnectRequired | unavailable | notGranted) · capacityBytes · availableBytes · volumeUUID? · volumeName? · scannedBytes · scannedAt · issues.

ScanResult (ScanEngine.swift:31) — locationID · rootName · totalBytes (logical unique) · totalAllocated · categoryBytes · itemCount · topNodes · largestFiles[200] · largestFilesOnDisk[200] · oldestFiles[200] · issues · startedAt · finishedAt · wasCancelled · elapsed · allocationTracked.

ReviewItem — id · node · source · reason · risk · verifiedAt (= scan startedAt, for descendant-change check).

Formatting — SDFormat (ByteCountFormatter.file), exactBytes, pct, date; pre-1980 dates treated as unknown (earliestRealDate).

---

Views and navigation

• SpareDiskApp.swift:4 — WindowGroup (1180×780 default, 900×620 min, appearance System/Light/Dark) + Settings + Window("SpareDisk Help", id: "help").
• ContentView.swift:56 — NavigationSplitView { SidebarView } detail: { CenterView } .inspector { InspectorView }, dynamic title/subtitle, Back/Forward, Scan/Rescan/Cancel, view-mode segmented picker (list/map/sunburst), Add Location, Toggle Inspector; sheets for About / Scan Issues / Uninstall; direct-Trash confirmation alert.
• Theme/SDTheme.swift — Space(4/8/12/16/24/32), rounded monospaced type (body 14 / secondary 12.5 / section 15 / screenTitle 24 / figure 30), 8-hue category palette with light/dark variants + WCAG white/black label picking, stable folder hues (FNV-1a), age buckets, macSymbol via sysctl hw.model; shared CategoryDot/SizeBar/MonospaceBytes/SectionHeader/IssueBanner/ScreenBar/SearchField/FlowLayout.

---

Scan details

• One lstat per item gives type, size, allocation, mtime, link count, inode, device, dataless flag — the 867k-item ~/Library benchmark in ScanEngine.swift header dropped 115s → 34s by removing per-item resource-key lookups, pathComponents, attributesOfItem, and the iCloud status key.
• Never follows symlinks (counted, not traversed). Never hydrates cloud content. Packages (.app .framework .photoslibrary .sparsebundle .utm …, ~30 extensions) are opaque: interiors excluded from rankings and map nesting.
• Hard links deduped per worker then reconciled across workers (subtract second count); link count surfaced so “trashing one link of many frees nothing” is visible.
• Rankings capped at 200 each (largestFiles logical, largestFilesOnDisk allocated, oldestFiles); top-level aggregates stream as partialTop every 2000 items / 0.25s.
• Cloud: SF_DATALESS + ubiquitous keys mark placeholders; iCloud membership alone is not treated as download state.
• Errors: unreadable directories become ScanIssue(path,message); totals exclude them and the UI says so.

---

Duplicates, leftovers, related data

Duplicates (DuplicateService.swift)

minBytes=1M · sampleBytes=64K · ioChunk=1M · algorithmVersion in group ID (sha256-v1:digest). Pipeline: eligible filter → hard-link collapse (vol:ino) → group by size → metadata re-verify → head/mid/tail sample digest → full streaming SHA-256 (open O_RDONLY|O_NOFOLLOW + F_NOCACHE) → memcmp → re-verify → sort by redundancy. DuplicateProgress(checked/total/current/bytesDone/bytesTotal) with bytesTotal = 2× candidates. protectKeepers / requireKeepers guarantee group actions never move the keeper.

Leftovers (LeftoverService.swift)

realHome via getpwuid (not the sandbox container; homeOverride for demos). bundleID(fromEntryName:suffix:) strips suffix/group./team prefix, requires ≥3 components and sane TLD/charset. ownerCandidates tries suffixes 3…n. orphans(entries:isInstalled:) memoizes verdicts. UninstallPlan.split → strong (bundle-ID / shares-identifier) vs weak (name-only).

Related (RelatedDataService.swift)

bundleIdentifier(appPath:) from Contents/Info.plist; candidates(appPath:home:) checks ID paths, Group Containers/*.<id>, bundle/name/executable and vendor/product matches; existence via lstat, deduped. Per-candidate directories get a scoped ScanEngine.scan; files get lstat sizing. Evidence strings (Bundle identifier, Shares identifier, Name match: …) drive strong/weak split.

---

Maps: treemap and sunburst

Both visualize the visible subtree total (not the whole volume), support breadcrumb drill-down, tap/double-tap drill, arrow/Return/Space keyboard operation, drag-out to Finder, and per-cell accessibility buttons.

• Treemap (TreemapLayout.swift + TreemapView.swift): squarified, deterministic (size-desc + id tiebreak), float-error absorbed, geometry clamped ≥0; ≤80 cells, small cells demoted to “Other” (which cannot be opened — use the list for those paths); labels chosen by fit (nameAndSize/nameOnly/sizeOnly/none); folder cells lighten 12/22% per nesting level; type/age color modes available.
• Sunburst (SunburstView.swift): two rings (parent level + children + rest), minimum angular spans to keep tiny files visible without lying about proportions, hover shows share %, center shows current folder.

---

Testing

Unit tests use Swift Testing (import Testing, @Test, #expect, @testable import SpareDisk); UI tests use XCTest/XCUITest.

Run: xcodebuild … -only-testing:SpareDiskTests test (see Build). No cleanup test deletes user files — fixtures are disposable temp dirs; the review doc records “no deletion of user files was executed for testing.”

---

Debug launch flags

---

Limitations and honest scope

From docs/APP_REVIEW.md (2026-09-12, source + running-build review — not a safety certification or App Store approval):

• Trust & data first: cleanup is best treated as pre-release until stable-identity revalidation, folder-timestamp semantics, scan ownership/cancellation isolation, and bookmark/preview lifecycle are proven with disposable fixtures + signed sandbox smoke tests.
• Browse/search coverage: real scans retain top-level aggregates + 2×200 rankings; the full recursive tree exists only in mock data. Large/Older search filters retained candidates, not every file on disk; overlapping granted roots can repeat candidates. Views should be read as “retained rankings” until an indexed snapshot with parent IDs + paged children lands.
• Map: prototype-grade in the reviewed pass — later work added the bounded squarified layout, but “Other” still cannot be opened.
• Accounting: logical vs allocated tracked separately, but APFS clones/snapshots are not reconciled; never equate summed file sizes with exact reclaimable space.
• Access: stale bookmarks, moved folders, offline volumes, and Quick Look scope-holding need signed-app relaunch testing. Debug signature is ad-hoc (app-sandbox + user-selected read-write + get-task-allow), not a distribution archive.
• A11y/layout: verify 900pt min + 1180pt normal widths, both inspector states, long localized paths, Light/Dark, Increase Contrast, Reduce Transparency, Reduce Motion, VoiceOver; measure contrast (≥4.5:1 text) rather than assuming system colors certify custom chart fills.
• Distribution: confirm audience before promising macOS 14 or Intel support — current target is macOS 15.0 arm64.

---

Roadmap

Per docs/APP_REVIEW.md § Design direction:

1. Stabilize trust and data: per-run generation tokens, awaited worker termination before grant release, identity + provenance capture at scan, fail-closed check-to-operation policy, fixture tests (replacement files, parent-symlink swaps, moved roots, volume changes, permission loss).
2. Complete storage exploration: indexed snapshot, real drill-down, deterministic sort with ties, coverage labels, volume-vs-folder accounting, “what am I looking at?” above every chart.
3. Refine main window: native sidebar + toolbar, one interaction accent, quiet opaque surface, 8/12/16/24 spacing, 13–14pt body, monospaced byte columns; ranked lists over dashboard cards.
4. Inspector as decision aid: name + native icon, selectable path, logical + allocated size, date semantics, access, preview/reveal, then Add to Review. No generic “safe to delete” badge.
5. Finish cleanup outcomes: normalized counts/bytes, files-vs-folders split, changed-candidate list, per-item results; Escape cancels pre-start, mid-batch cancel stops between items with completed outcomes retained; no atomic-rollback claims.
6. Release polish: measured contrast, keyboard-only + VoiceOver journeys, small-size icon legibility, release signing, honest screenshots/metadata after sandbox tests pass.

---

Brand assets

• docs/brand/SpareDisk-Icon.png — 1024×1024 RGBA master (pale disk + detached teal spare sector on midnight-blue tile, 9% inset, transparent corners, no text).
• docs/brand/Original-AppIcon.png — backup of previous icon.
• docs/brand/README.md — exact imagegen builtin prompt, sips resampling notes, maintenance (ASSETCATALOG_COMPILER_APPICON_NAME=Sparedisk, in-app SpareDiskLogo 128/256px, rebuild required to see asset changes).
• Production: SpareDisk/Sparedisk.icon (Icon Composer source, compiled at build) + Assets.xcassets/SpareDiskLogo.imageset. Use ~32–40pt in sidebar, 96pt in About; let silhouette carry small-size recognition.

---

Docs

• docs/APP_REVIEW.md — full 2026-09-12 assessment, completed-changes table, P1/P2 findings with evidence paths, verification log + build/test commands.
• docs/brand/README.md — identity provenance.
• In-app: HelpView (Sizes / Locations / Review and the Trash / Duplicates / Related data / Privacy), About sheet, Scan Issues sheet, “Why totals differ” popover, Settings → Privacy section.

---

License

SpareDisk is released under the MIT License.

All analysis stays on this Mac; file names, paths, and duplicate-hash contents are never uploaded.
